6.2.6.3 Alarm zone definition

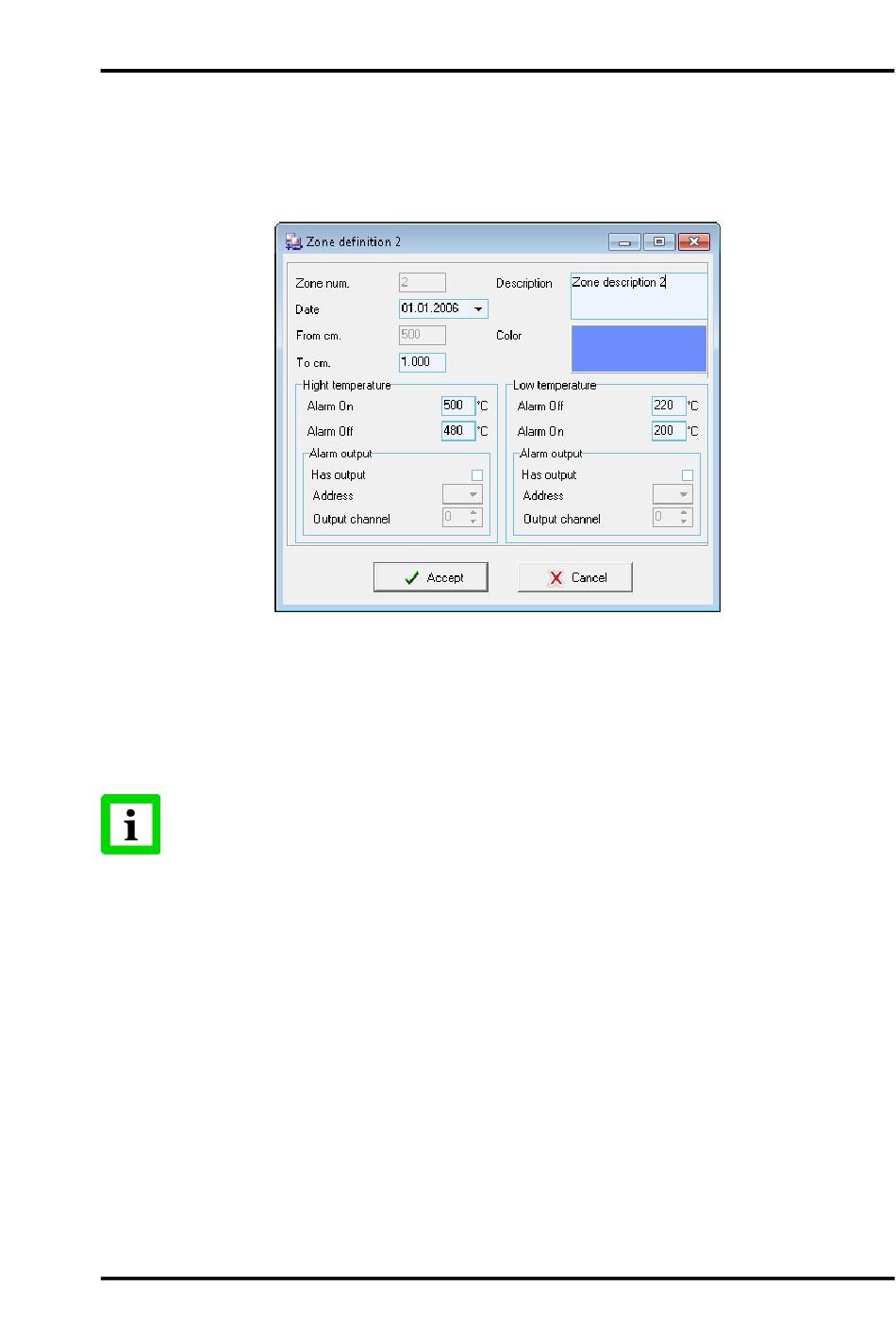

This screen defines the beginning and the end of the zone, as well as the higher and lower alarm limits
and a possible digital output in case of alarm. Also provided is additional information such as
installation date, a description field and the display colour.
6.2.7 <Refractory>
In the following sections, you will find the description for configuring the <Refractory>. The
<Refractory> comes as standard with the CS software package and provides a basic approach to
handle the refractory configuration of a kiln.
A much more advanced accessory tool is provided with the Refractory Management.
See section 11.4

6.2.7.1 Repository of refractory configuration

Several different refractory configurations can be established and displayed via this menu option.
Obviously, just one of them is the actual active configuration selectable by the <Set active> button.
The buttons along the lower toolbar are used to create new configurations, and also to edit or delete
existing ones.
CS210
Figure 31: Pyrometer device definition

Refractory

Management, page 105.
