4. Pre-Installation

The customer is responsible for preparation of the sensor stand, installation of the position indicator
with the trigger bar and the complete field wiring as indicated in the appendix.

4.1 Environment

Please take note of the following:
• The maximum ambient temperature for the scanner within the protective housing is 45°C (113°F).
If necessary, add an additional shaded roof to protect the protective housing from direct sunlight
or provide water direct to the scanner.
• For details on grounding the sensor stand, please refer to the local building codes for lightning
protection.
• The housing of the linescanner and the system connection box must have the same potential.
(Check for good electrical contact at grounding wire connection).

4.2 Scanner Distance to Kiln

The standard system, CS211, is a one-scanner system and is suited for small to medium length kilns
up to 60 m (200 ft) in length. For longer kilns the CS212, a two-scanner system, will be required.
The linescanner has a 90° scan angle. The distance between the scanner and the kiln required for
complete coverage of the kiln length can be calculated as follows:
1
D ≥ L
2
where:
D ... Distance between scanner and kiln
L ... kiln length (required scan width)
CS210

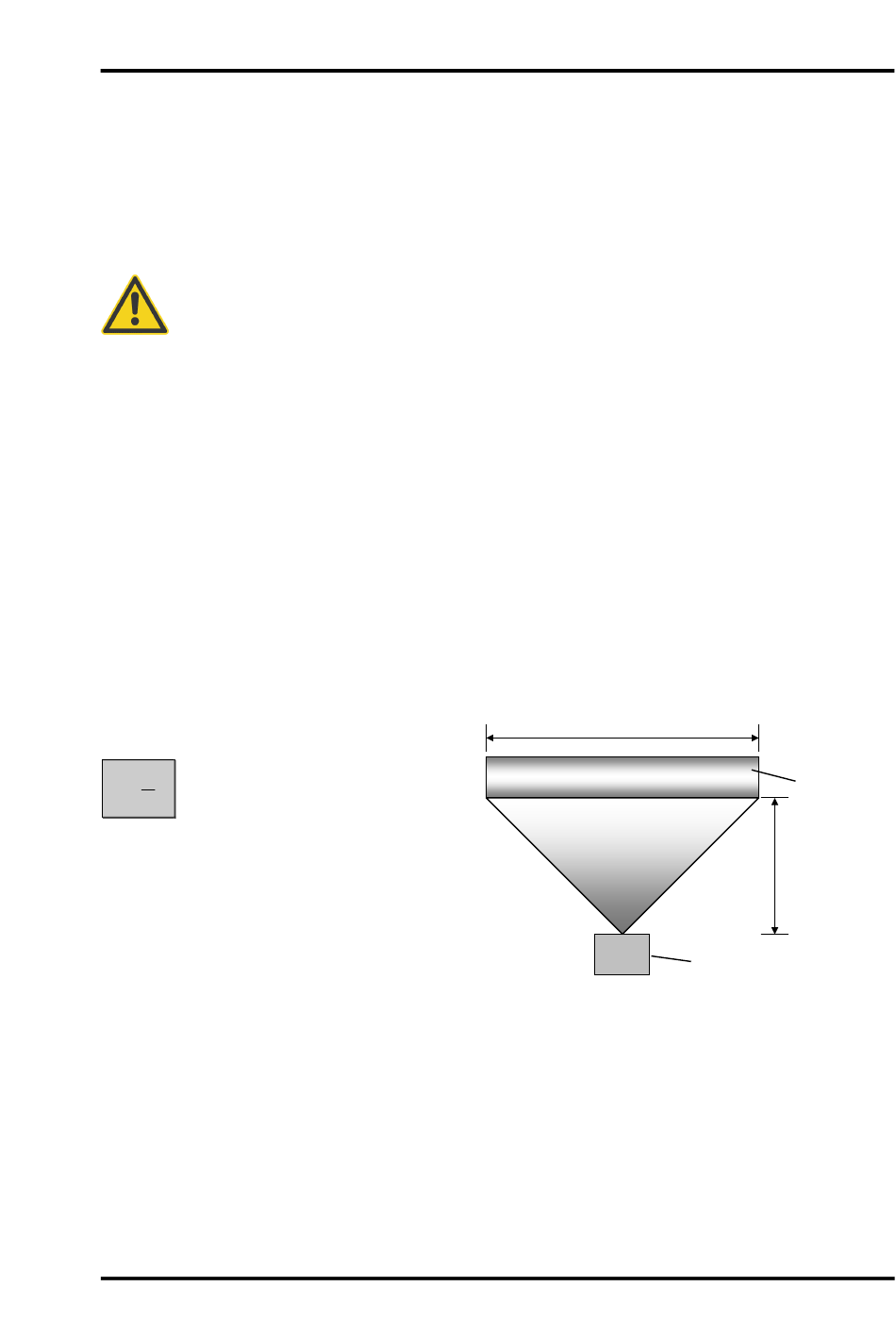

Figure 1: Distance between Scanner and Kiln
Rev. B4 Feb 2015
Pre-Installation
L
D
Scanner
Kiln
13
