14. Appendix – Technical Data

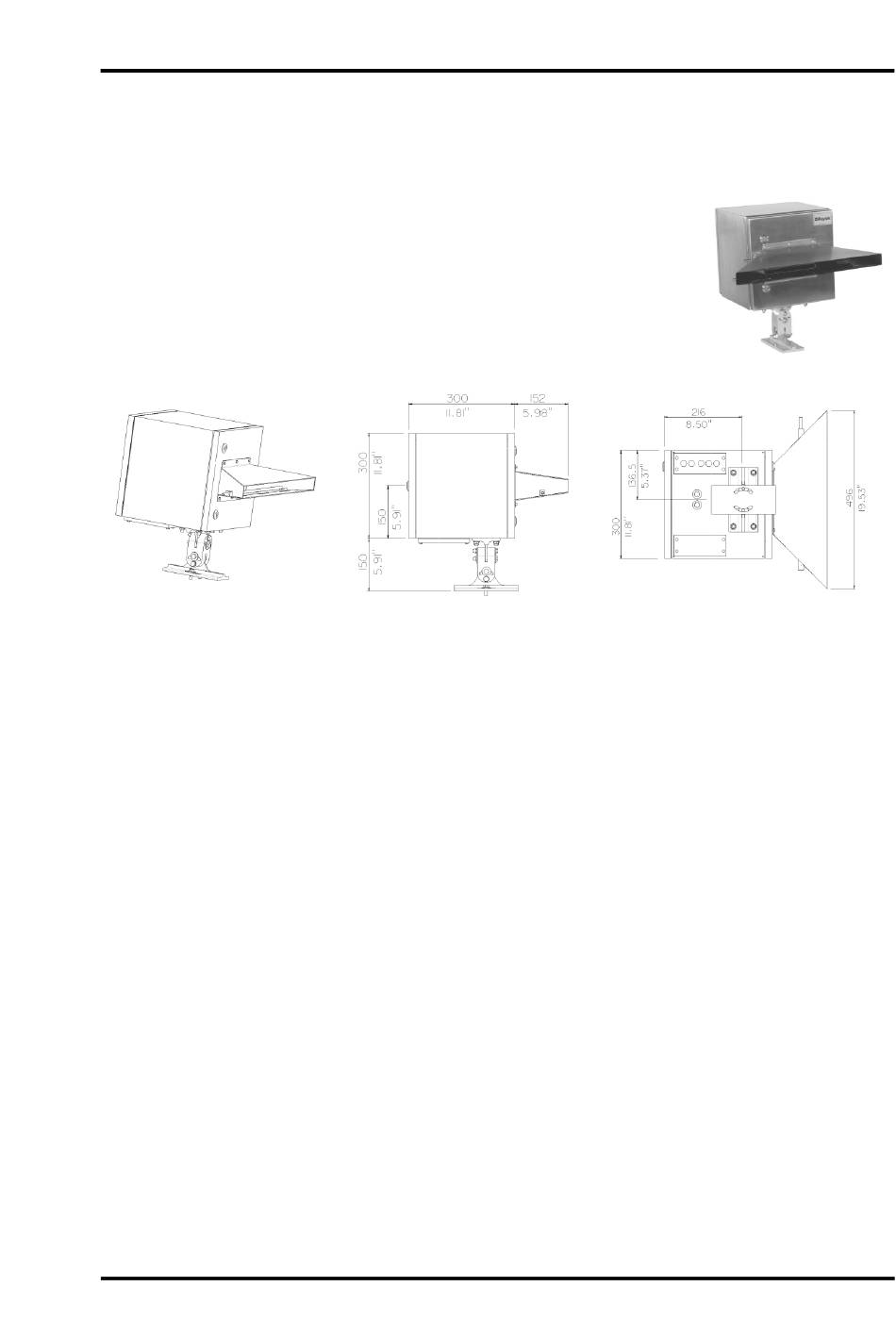

14.1 Protective Housing

To protect the linescanner from the high temperatures and poor air
quality near the kiln, the scanner is enclosed in a rugged stainless steel
protective housing. Air purging and/or water-cooling is available, if
required (CS212 system - contains two protective housings).
Part No.
XXXSYSPHSS
Material:
Box
Seal
Mounting Bracket
Dimensions (h x w x d)
- with mounting frame
Weight
Protection rate
Window transmission
Air purge:
Connector
Pressure
Scope of delivery:
Options:
CS210
Description
Linescanner Protective Housing with quick-release rail mounted
scanning system
Stainless Steel 1.4301
EPDM, CR
galvanized steel
300 x 300 x 300 mm (11.81 x 11.81 x 11.81 in.)
height is about 450 mm (17.72 in.)
about 20 kg (44 lb), linescanner included
IP54
0.9
outer diameter 8 mm (0.315 in.)
1.5 to 3 bar (air must be cleaned)
stainless steel box with air purge and all mounting parts
adjustable mounting bracket allowing aiming along any axis
grommets and grommet plate
spare removable window
air – water heat exchanger
