Drawings

13.8 LRM Wiring

The internal wiring for the position indicators 4, 5, 6 – the dotted lines – does not come as factory default.

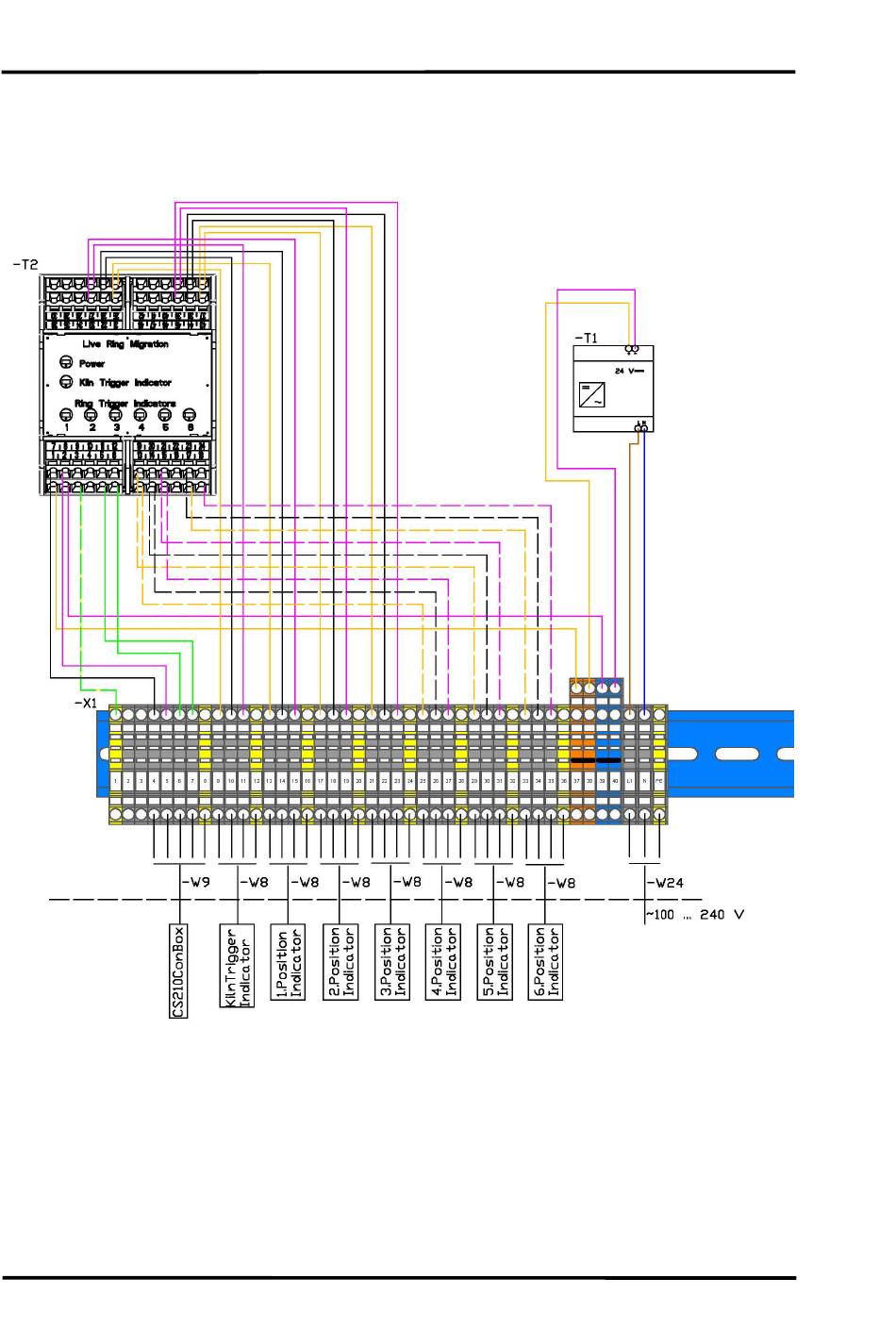

Figure 113: Wiring Scheme for LRM Remote Control Box
122
CS210
Rev. B4 Feb 2015
