J-Link ARM

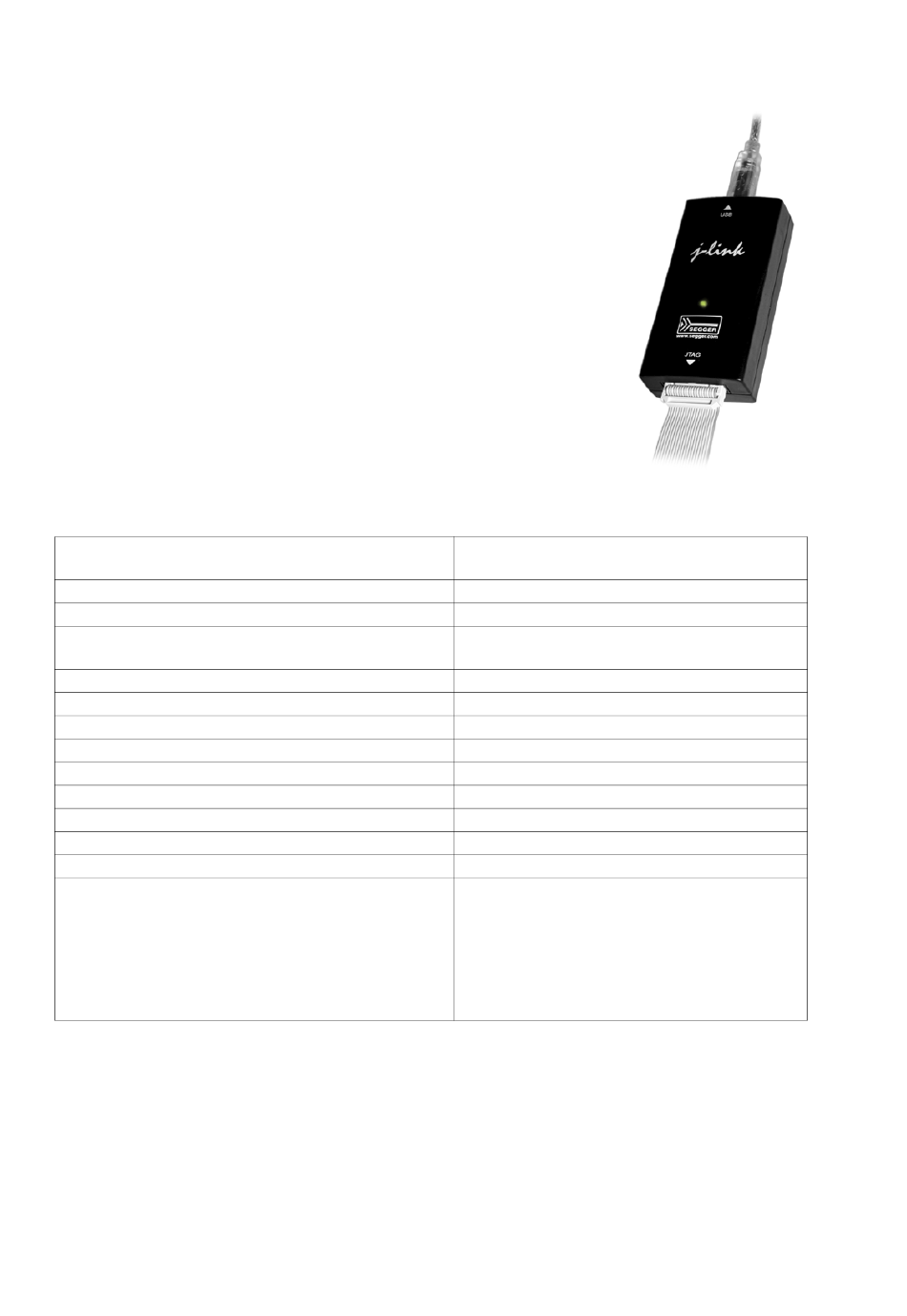

J-Link is a JTAG emulator designed for ARM cores. It connects
via USB to a PC running Microsoft Windows 2000, Windows XP,
Windows 2003 or Windows Vista. J-Link has a built-in 20-pin
JTAG connector, which is compatible with the standard 20-pin
connector defined by ARM.
1.1.3.1 Additional features
• Serial Wire Debug supported *
• Serial Wire Viewer supported *
• Download speed up to 720 KBytes/second **
• DCC speed up to 800 Kbytes/second **
• RDI interface available, which allows using J-Link with RDI
compliant software
* = Supported by J-Link hardware version 6
** = Measured with J-Link Rev.5, ARM7 @ 50 MHz, 12MHz JTAG
speed.
1.1.3.2 Specifications*
Power Supply
USB Interface
Target Interface
Serial Transfer Rate between J-Link and Tar-
get
Supported Target Voltage
Target supply voltage
Target supply current
Operating Temperature
Storage Temperature
Relative Humidity (non-condensing)
Size (without cables)
Weight (without cables)
Electromagnetic Compatibility (EMC)
Supported OS
Table 1.1: J-Link specifications
* = J-Link hardware revision 5 and up.
J-Link / J-Trace (UM08001)
CHAPTER 1
USB powered <50mA if target power is
off.
USB 2.0, full speed
JTAG 20-pin (14-pin adapter available)
up to 12 MHz
1.2 - 3.3 V, 5V tolerant
4.5V .. 5V (if powered with 5V on USB)
Max. 300mA
+5°C ... +60°C
-20°C ... +65 °C
<90% rH
100mm x 53mm x 27mm
70g
EN 55022, EN 55024
Microsoft Windows 2000
Microsoft Windows XP
Microsoft Windows XP x64
Microsoft Windows 2003
Microsoft Windows 2003 x64
Microsoft Windows Vista
Microsoft Windows Vista x64
