If you use the IAR project for the first time, the use of J-Link ARM FlashDL and
FlashBPs is set to Auto, which is the default value. For more information about dif-
ferent configurations for J-Link ARM FlashDL and FlashBPs please refer to Settings
on page 93. Now you can start the debug session. If you run this project for the first
time a settings file is created in which the configuration of J-Link ARM FlashDL and
FlashBPs is saved. This settings file is created for every project configuration (e.g.
Debug_RAM, Debug_FLASH), so you can save different J-Link ARM FlashDL and
FlashBP configurations for different project configurations. When the debug session

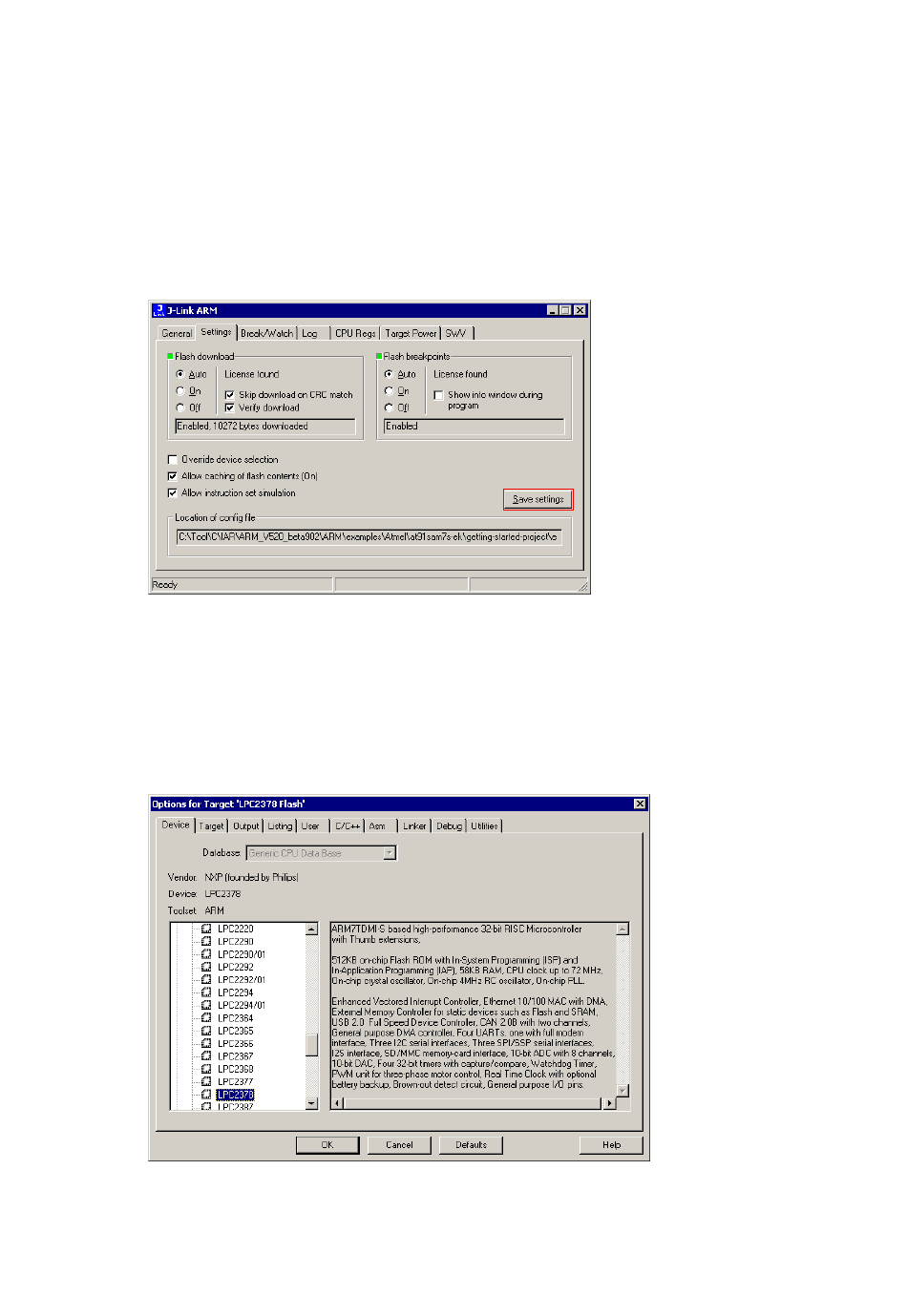

starts, you should see the selected target in the Device tab of the J-Link status win-
dow. When the debug session is running you can modify the settings regarding J-
Link ARM FlashDL and FlashBPs, in the Settings tab and save them to the settings
file.
Currently changes in this tab, will take effect next time the debug session is started.
6.4.2

Keil MDK

To use the J-Link ARM FlashDL and FlashBP features with the Keil MDK is quite sim-
ple:
First, choose the device in the project settings if not already done. The device set-
tings can be found at Project->Options for Target->Device.
J-Link / J-Trace (UM08001) © 2004-2009 SEGGER Microcontroller GmbH & Co. KG
125
