Hardware layout and configuration
2.2

Power supply

STM32373C-EVAL evaluation board is designed to be powered by a 5 V DC power supply
and is protected by PolyZen U26 from damage caused by overvoltage and overcurrent fault
conditions. It is possible to configure the evaluation board to use any of following four power
supply sources:
●
5-V DC power adapter connected to CN18, the power jack on the board (see Power
Supply Unit (PSU) in
board.
●
5-V DC power with 500 mA limitation from CN22, the type-B USB connector of ST-
LINK/V2 (see STlk 5-V power source in
● 5-V DC power with 500 mA limitation from CN16, the type-B USB connector (see U5V
5-V power source in
●
5-V DC power from CN13 and CN14, the extension connector for the daughterboard
(see D5V for daughterboard in
The power supply is configured by setting the related jumpers JP10, JP11, JP12, and JP13
as described in
Table 3.
Jumper
JP10
(selects one of
the four possible
power supply
resources)
12/66
Figure 3). The external power supply is not provided with the
Figure 3).
Table 3 below.

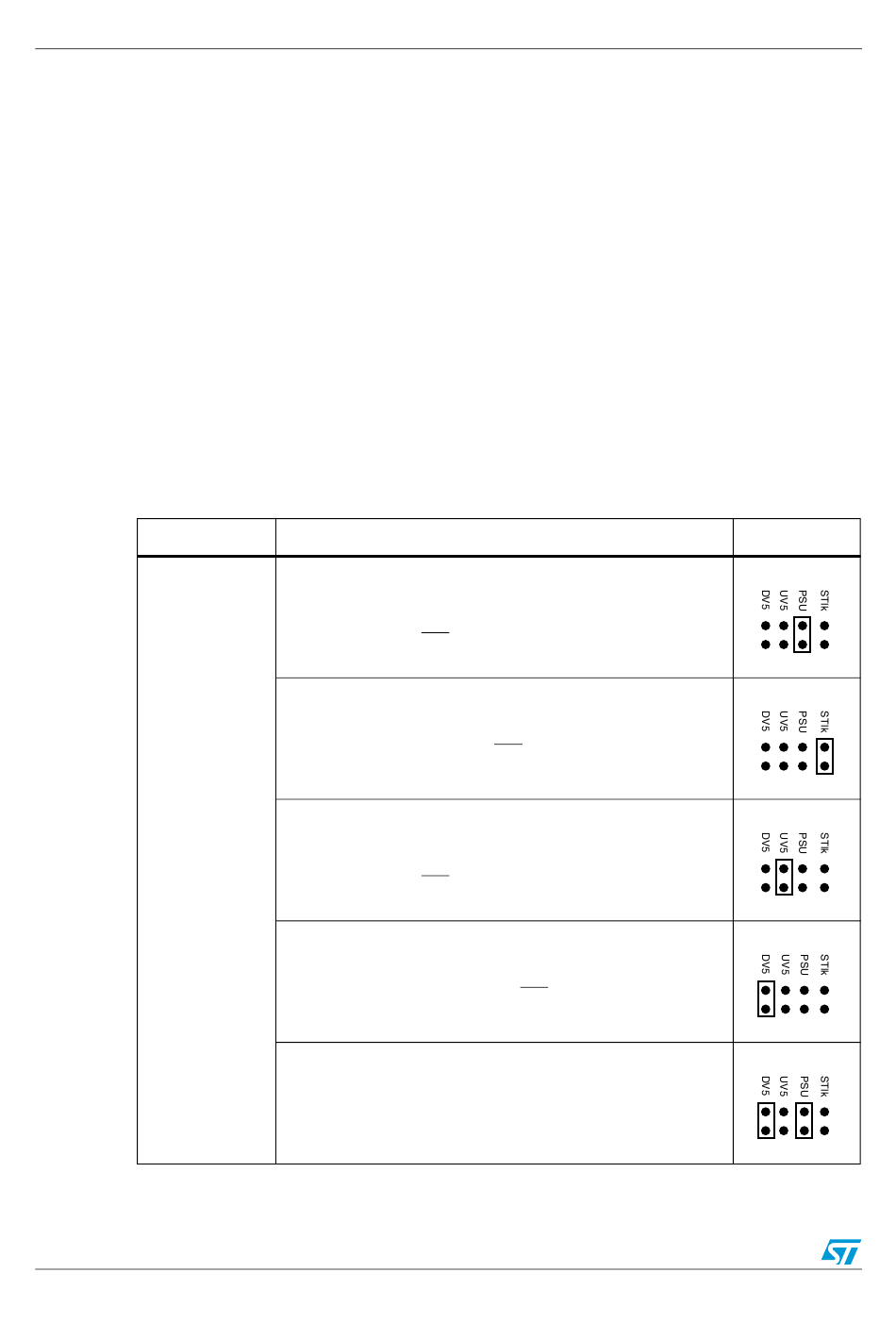

Power-related jumpers
For power supply from the power supply jack (CN18) to the
STM32373C-EVAL only, JP10 is set as shown to the right:
For power supply from the USB connector of ST-LINK/V2
(CN22) to STM32373C-EVAL only, JP10 is set as shown to the
right:
For power supply from the USB connector (CN16) to
STM32373C-EVAL only, JP10 is set as shown to the right:
For power supply from the daughterboard connectors (CN13
and CN14) to STM32373C-EVAL only, JP10 is set as shown to
the right:
For power supply from the power supply jack (CN18) to both
STM32373C -EVAL and daughterboard connected on CN13 &
CN14, JP10 is set as shown to the right:
Note: the daughterboard must not have its own power supply
connected.
Doc ID 023566 Rev 1
Figure 3).
Figure 3).
Description
UM1564
Jumper setting
