Introduction
The STM320518-EVAL evaluation board is designed as a complete demonstration and
development platform for STMicroelectronic's ARM cortex-M0 core-based
STM32F051R8T6 microcontroller. It features two I2Cs, two SPIs, two USARTs, a 12-bit
ADC, a 12-bit DAC, two GP comparators, internal 8 KB SRAM and 64 KB Flash, touch
sensing, CEC and SWD debugging support.
The full range of hardware features on the board is able to help you evaluate all peripherals
(motor control connector, RS-232, RS-485, audio DAC, linear sensor, microphone ADC,
TFT LCD, IrDA, IR LED, IR receiver, LDR, MicroSD card, CEC on two HDMI connectors, RF
E2PROM, temperature sensor and so on) and develop your own applications. Extension
headers make it possible to easily connect a daughterboard or wrapping board for your
specific application.
An ST-LINK/V2 is integrated on the board as an embedded in-circuit debugger and
programmer for the STM32 MCU.

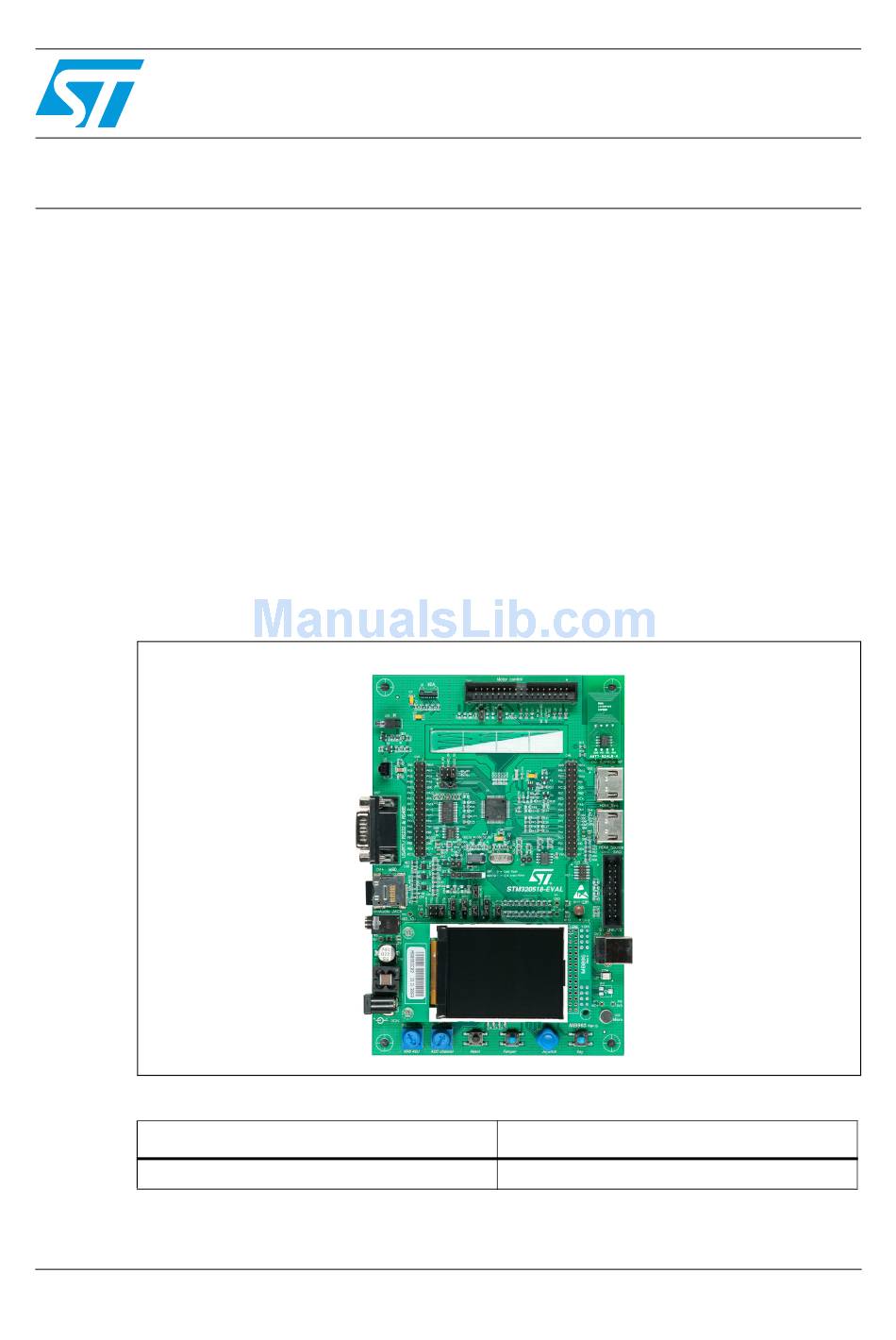

Figure 1.
Table 1.
May 2012
STM320518-EVAL evaluation board
Applicable tools
Type
Evaluation tools
Doc ID 023059 Rev 1
STM320518-EVAL evaluation board
UM1537
User manual
Part number
STM320518-EVAL
1/52
www.st.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ST STM320518-EVAL
Summary of Contents for ST STM320518-EVAL
-
Page 1: Table 1. Applicable Tools
E2PROM, temperature sensor and so on) and develop your own applications. Extension headers make it possible to easily connect a daughterboard or wrapping board for your specific application. An ST-LINK/V2 is integrated on the board as an embedded in-circuit debugger and programmer for the STM32 MCU. Figure 1. -
Page 2: Table Of Contents
Contents UM1537 Contents Overview ..........6 Features . - Page 3 Board schematics ......... . 32 Appendix A STM320518-EVAL I/O assignments ......47 Appendix B Mechanical dimensions.
- Page 4 List of tables UM1537 List of tables Table 1. Applicable tools............1 Table 2.
- Page 5 STM320518-EVAL evaluation board layout ........
-
Page 6: Overview
Overview UM1537 Overview Features ● Three 5 V power supply options: power jack, ST-LINK/V2 USB connector or daughterboard ● Audio speaker and microphone connected to DAC and ADC of STM32F051R8T6 ● 2 Gbyte or more SPI interface MicroSD card ●... -
Page 7: Delivery Recommendations
UM1537 Overview Delivery recommendations Some verifications are needed before using the board for the first time to make sure that nothing has been damaged during shipment and that no components are unplugged or lost. When the board is extracted from its plastic bag, please check that no component remains in the bag. -
Page 8: Hardware Layout And Configuration
Hardware layout and configuration UM1537 Hardware layout and configuration The STM320518-EVAL evaluation board is designed around the STM32F051R8T6 (64-pin LQFP package). The hardware block diagram shown in Figure 2 illustrates the connection between the STM32F051R8T6 and peripherals (motor control connector, RS-232, RS-485,... -
Page 9: Figure 3. Stm320518-Eval Evaluation Board Layout
UM1537 Hardware layout and configuration Figure 3. STM320518-EVAL evaluation board layout CN5, CN6 motor control connector IrDA transceiver extension header Linear sensor CN 2 RF E2PROM connector IR LED IR receiver HDMI_Sink connector STM32F051R8T6 HDMI_Source connector RS-232/RS-485 connector CN10 SWD connector... -
Page 10: Development And Debug Support
UM1537 Development and debug support Version 2 of the ST-LINK (ST-LINK/V2) is embedded on the board. This tool allows onboard program loading and debugging of the STM32F051R8T6 using the SWD interface. The third-party debug tools are also supported by the SWD connector CN10. -
Page 11: Power Supply
(PSU) on the silk screen). External power supply is not provided with the board. ● 5V DC power with 500 mA limitation from CN13, the USB type B connector of ST- LINK/V2 (USB 5 V power source (STlk) on silkscreen). -
Page 12: Table 4. Power Mode Related Jumpers
Jumper JP11 must be open (to disconnect VDDA from all analog power VDD_ANA which is connected to the analog circuits on the board) for MCU Idd measurement. The LED LD6 is lit when the STM320518-EVAL evaluation board is correctly powered by 5 V. -
Page 13: Clock Source
PC15 is connected to an extension connector CN5 when SB10 is closed. In such a case, R58 must be removed to avoid disturbance due to the 32 kHz quartz. Reset source The reset signal of the STM320518-EVAL evaluation board is low active and the reset sources include the following. ●... -
Page 14: Boot Option
Default Setting: Not fitted Audio The STM320518-EVAL evaluation board supports a speaker that is connected to the DAC output of the STM32F051R8T6 through an audio amplifier and microphone, which is in turn connected to the ADC input of the STM32F051R8T6 through a microphone amplifier. The... -
Page 15: Rs-232, Rs-485 And Irda
The RS-232 (with hardware flow control CTS and RTS), RS-485 and IrDA communication is supported by D-type 9-pin RS-232/RS-485 connectors CN7, and IrDA transceiver U1 which is connected to USART1 of the STM32F051R8T6 on the STM320518-EVAL evaluation board. The signal Bootloader_RESET (shared with the CTS signal) and Bootloader_BOOT0 (shared with the DSR signal) are added to the RS-232 connector CN7 for ISP support. -
Page 16: Linear Sensor
(PC5 and PB0) in group3. Note: The linear sensor is only fully functional when the STM320518-EVAL is powered on power mode 1 (both VDD and VDDA are connected to a fixed 3.3 V). It is potentially necessary to adjust the capacitor value of C14 and C15 and the firmware to adapt them to the voltage range from 2 V to 3.6 V of VDD on power modes 2 and 3. -
Page 17: Temperature Sensor
Hardware layout and configuration Figure 4. STM320518-EVAL evaluation board It is possible to compare the LDR output with 1/4 band gap, 1/2 band gap, 3/4 band gap, band gap and DAC1 OUT, and to connect the LDR output to ADC IN1 for AD conversion. -
Page 18: Rf E2Prom
Hardware layout and configuration UM1537 Table 12. LCD modules (continued) 2.4-inch TFT LCD connector CN16 Description Pin connection Description Pin connection BL_Control BL_GND RESET RESET# BL_GND Note: The bi-directional voltage translator is implemented on the SPI MOSI signal between the STM32F051R8T6 and the LCD to support the 3-wire serial interface of the AM240320LGTNQW-01H LCD panel. -
Page 19: Ir Led And Ir Receiver
R11 is removed. 2.17 Motor control The STM320518-EVAL evaluation board supports both asynchronous and synchronous three-phase brushless motor control via a 34-pin connector CN1. This connector provides all required control and feedback signals to and from the motor power-driving board. -
Page 20: Figure 5. Stm320518-Eval Evaluation Board Motor Control Pcb Reworks
Hardware layout and configuration UM1537 Figure 5. STM320518-EVAL evaluation board motor control PCB reworks The RS-232 connector CN7 is re-connected to USART1 on the IOs PB6 and PB7 instead of PA9 and PA10 for the motor control application. 20/52 Doc ID 023059 Rev 1... -
Page 21: Table 13. Motor Control Related Jumpers
UM1537 Hardware layout and configuration Table 13. Motor control related jumpers Jumper Description The special motor current sampling operation is enabled when JP2 is fitted (PB0 connected to PA12). The IO pins PB0 and PA12 are disconnected and can be used by the daughterboard when JP2 is not fitted. -
Page 22: Connector
Connector UM1537 Connector Motor control connector CN1 Figure 6. Motor control connector CN1 Table 14. Motor control connector CN1 Pin of Pin no. of Pin no. of Pin of Description Description STM32F051R8T6 STM32F051R8T6 Emergency STOP PB12 Emergency STOP2 PWM-UH PWM-UL PB13 PWM-VH PWM-VL... -
Page 23: Rf E2Prom Connector Cn2
UM1537 Connector Table 14. Motor control connector CN1 Pin of Pin no. of Pin no. of Pin of Description Description STM32F051R8T6 STM32F051R8T6 Encoder B PB10 Encoder index MC_BEMF_B MC_BEMF_C RF E2PROM connector CN2 Figure 7. RF EEPROM daughterboard connector CN2 Table 15. -
Page 24: Hdmi Source Connector Cn4
Two 34-pin male headers CN5 and CN6 can be used to connect with the daughterboard or standard wrapping board to the STM320518-EVAL evaluation board. All GPIOs are available on it. The space between these two connectors and the position of the power, GND and RESET pins is defined as a standard that allows to develop common daughterboards for several evaluation boards. -
Page 25: Table 18. Daughterboard Extension Connector Cn5
UM1537 Connector Table 18. Daughterboard extension connector CN5 How to disconnect from the function Description Alternative function block on STM320518-EVAL board JOY_Up Remove R87 JOY_Right Remove R98 Remove R55 HDMI_HPD_Source / MC_TIM1_CH1 (UH) Disconnect MC power board from CN1 Keep JP3 open... -
Page 26: Table 19. Daughterboard Extension Connector Cn6
Connector UM1537 Table 18. Daughterboard extension connector CN5 (continued) How to disconnect from the function Description Alternative function block on STM320518-EVAL board TempSensor / HDMI/RF_SCL / Remove R18 MC_USART1_TX BOOT0 BOOT0 Keep JP5 open Remove R57 PC14 OSC32_IN Close SB9... -
Page 27: Rs-232 And Rs-485 Connector Cn7
Table 19. Daughterboard extension connector CN6 (continued) How to disconnect from the function Description Alternative function block on STM320518-EVAL board MC_TIM3_CH4 (PFC PWM) Disconnect MC power board from CN1 TS_Shield_CAP/ MC_ TIM3_CH3 Mount a 0 ohm resistor on R49 (PFC_sync2) -
Page 28: Analog Input Connector Cn8
Connector UM1537 Analog input connector CN8 Figure 11. Analog input-output connector CN8 Table 21. Analog input-output connector CN8 Pin number Description Pin number Description Analog input-output High density SWD connector CN9 Figure 12. High density SWD debugging connector CN9 Table 22. -
Page 29: Standard Swd Connector Cn10
It is not populated by default and is not intended for the end user. 3.12 ST-LINK/V2 USB type B connector CN13 The USB connector CN13 is used to connect the embedded ST-LINK/V2 to a PC for debugging purposes. Doc ID 023059 Rev 1... -
Page 30: Microsd Connector Cn14
Connector UM1537 Figure 14. USB type B connector CN13 Table 24. USB type B connector CN13 Pin number Description Pin number Description VBUS (power) Shield 3.13 MicroSD connector CN14 Figure 15. MicroSD connector CN14 Table 25. MicroSD connector CN14 Pin number Description Pin number Description... -
Page 31: Power Connector Cn15
UM1537 Connector 3.14 Power connector CN15 The STM320518-EVAL evaluation board can be powered from a 5 V DC power supply via the external power supply jack (CN15) shown in Figure 16. The central pin of CN15 must be positive. Figure 16. Power supply connector CN15... -
Page 32: Board Schematics
Figure 24: Temperature sensor and RF EEPROM on page 40 ● Figure 25: Linear sensor on page 41 ● Figure 26: ST-LINK/V2 (SWD only) on page 42 ● Figure 27: SWD on page 43 ● Figure 28: Motor control on page 44 ●... -
Page 33: Figure 17. Stm320518-Eval
UM1537 Board schematics Figure 17. STM320518-EVAL Doc ID 023059 Rev 1 33/52... -
Page 34: Figure 18. Mcu
Board schematics UM1537 Figure 18. MCU 34/52 Doc ID 023059 Rev 1... -
Page 35: Figure 19. Audio
UM1537 Board schematics Figure 19. Audio Doc ID 023059 Rev 1 35/52... - Page 36 Board schematics UM1537 Figure 20. HDMI_CEC 36/52 Doc ID 023059 Rev 1...
-
Page 37: Figure 21. Lcd And Micro Sd Card
UM1537 Board schematics Figure 21. LCD and micro SD card Doc ID 023059 Rev 1 37/52... -
Page 38: Figure 22. Peripherals
Board schematics UM1537 Figure 22. Peripherals 38/52 Doc ID 023059 Rev 1... -
Page 39: Figure 23. Rs-232, Rs-485 And Irda
UM1537 Board schematics Figure 23. RS-232, RS-485 and IrDA Doc ID 023059 Rev 1 39/52... -
Page 40: Figure 24. Temperature Sensor And Rf Eeprom
Board schematics UM1537 Figure 24. Temperature sensor and RF EEPROM 40/52 Doc ID 023059 Rev 1... -
Page 41: Figure 25. Linear Sensor
UM1537 Board schematics Figure 25. Linear sensor Doc ID 023059 Rev 1 41/52... -
Page 42: Figure 26. St-Link/V2 (Swd Only)
Board schematics UM1537 Figure 26. ST-LINK/V2 (SWD only) 42/52 Doc ID 023059 Rev 1... -
Page 43: Figure 27. Swd
UM1537 Board schematics Figure 27. SWD Doc ID 023059 Rev 1 43/52... -
Page 44: Figure 28. Motor Control
Board schematics UM1537 Figure 28. Motor control 44/52 Doc ID 023059 Rev 1... -
Page 45: Figure 29. Power
UM1537 Board schematics Figure 29. Power Doc ID 023059 Rev 1 45/52... -
Page 46: Figure 30. 2.4 Inch Lcd Module
Board schematics UM1537 Figure 30. 2.4 inch LCD module 46/52 Doc ID 023059 Rev 1... -
Page 47: Appendix A Stm320518-Eval I/O Assignments
UM1537 STM320518-EVAL I/O assignments Appendix A STM320518-EVAL I/O assignments Table 26. STM32F051R8T6 MCU pin assignments STM320518-EVAL motor Pin name STM320518-EVAL general I/O assignment control I/O assignment VBAT VBAT PC13 - TAMPER1 - TAMPER_KEY WKUP2 PC14 - OSC32_IN OSC32_IN PC15 - OSC32_OUT... - Page 48 STM320518-EVAL I/O assignments UM1537 Table 26. STM32F051R8T6 MCU pin assignments (continued) STM320518-EVAL motor Pin name STM320518-EVAL general I/O assignment control I/O assignment MC_TIM3_CH4 (PFC PWM) PB2 or NPOR (1.8V 1.8 V POR mode) PB10 HDMI_CEC MC_TIM2_CH3 (encoder index) PB11 TS_CAP...
- Page 49 UM1537 STM320518-EVAL I/O assignments Table 26. STM32F051R8T6 MCU pin assignments (continued) STM320518-EVAL motor Pin name STM320518-EVAL general I/O assignment control I/O assignment TempSensor/HDMI/RF_SCL / MC_USART1_TX TempSensor/HDMI/RF_SDA / MC_USART1_RX BOOT0 BOOT0 User_KEY IR_OUT VSS_1 VDD_1 Doc ID 023059 Rev 1 49/52...
-
Page 50: Appendix B Mechanical Dimensions
Mechanical dimensions UM1537 Appendix B Mechanical dimensions Figure 31. Mechanical dimensions Table 27. Mechanical dimensions Dimensions Dimensions Dimensions Symbol Symbol Symbol (mm) (mm) (mm) 68.58 77.443 40.64 2.54 115.247 2.54 5.715 25.4 5.715 19.837 17.02 114.3 20.32 172.72 50/52 Doc ID 023059 Rev 1... -
Page 51: Revision History
UM1537 Revision history Revision history Table 28. Document revision history Date Revision Changes 21-May-2012 Initial release. Doc ID 023059 Rev 1 51/52... - Page 52 No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such third party products or services or any intellectual property contained therein.
