Hardware layout and configuration

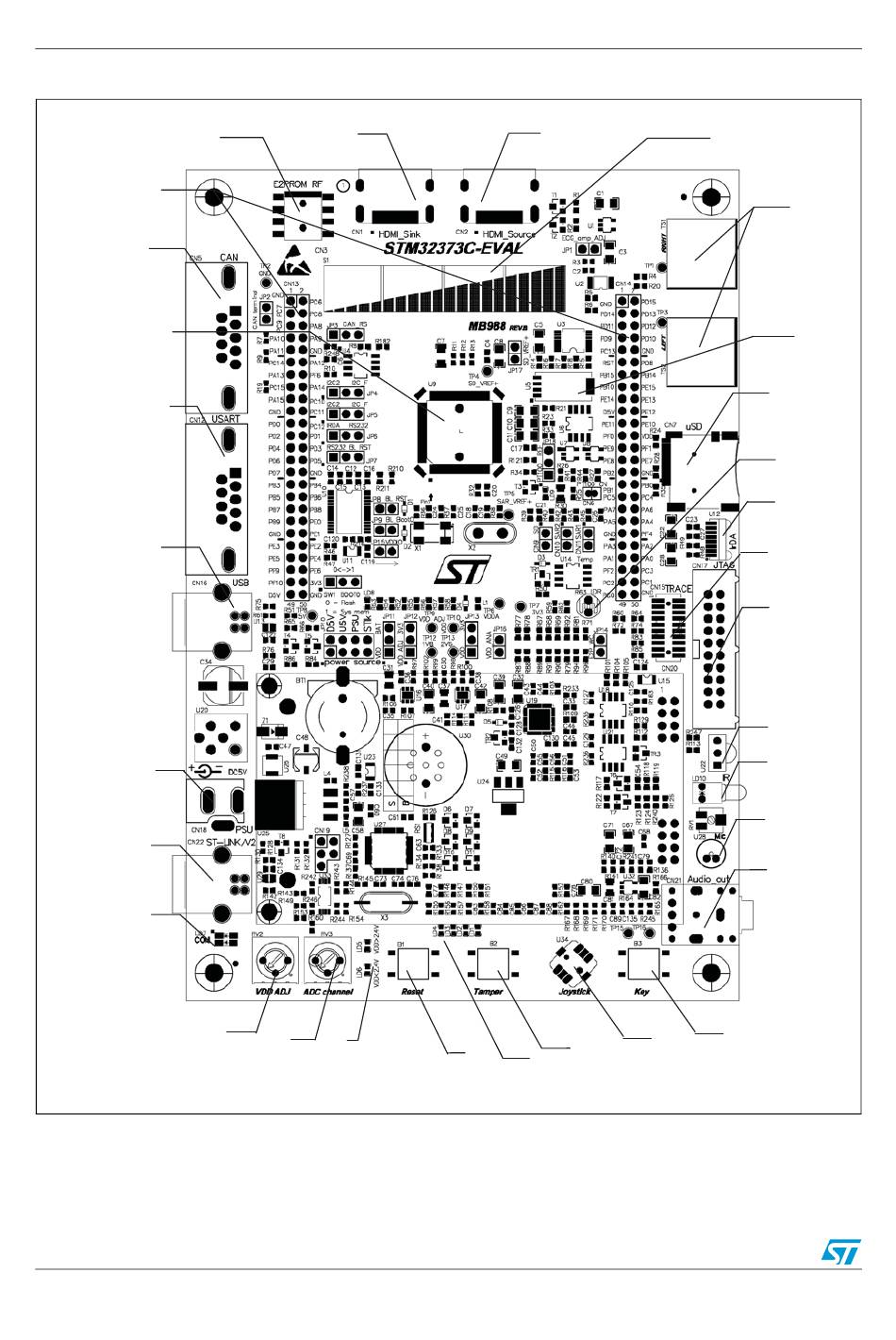

Figure 3. STM32373C-EVAL evaluation board layout
CN3
RF EEPROM
daughter board
connector
CN13,CN14
Extension
header
CN5
CAN
U9
STM32F373VCT6
CN12
USART2
CN16
USB FS
CN18
Power Jack
CN22
ST-LINK/V2
USB
LD7
ST-LINK/V2
COM LED
RV2
VDD_Adjustment
10/66
CN1
HDMI SINK
RV 3
VDD range
Potentiometer
LEDs
Doc ID 023566 Rev 1
CN2
HDMI SOURCE
B2
Tamper
B1
Button
4 colors
Reset Key
LEDS
UM1564
S1
Touch Slider
TS1 & TS2
ECG Probe
U5
Pressure
Sensor
CN7
MicroSD card
R63
LDR
U12
IrDA
CN15
ETM TRACE
CN17
JTAG/SWD
U22
IR transmitter
LD10
IR LED
U28
Microphone
CN21
Audio jack
B3
U34
Key
Joystick
Button
MS30561V1
