UM1564
3.9

RS-232 connector CN12

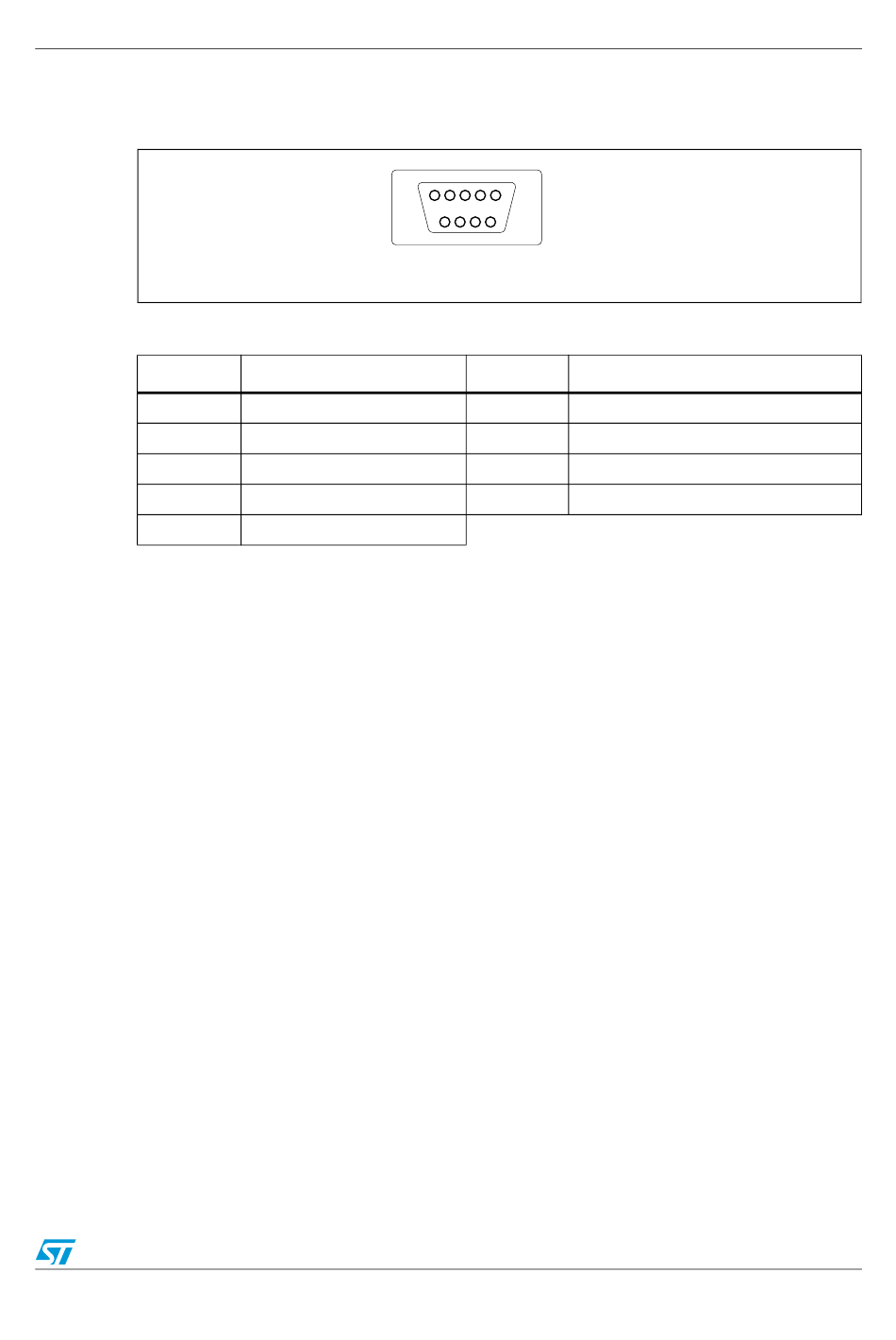

Figure 16. RS-232 connector CN12 (front view)

Table 28.
Pin number
1
2
3
4
5
RS-232 connector CN12 with HW flow control and ISP support
Description
NC
RS232_RX (PD6)
RS232_TX (PD5)
NC
GND
Doc ID 023566 Rev 1
1 2 3 4 5
6 7 8 9
Front view
Pin number
6 Bootloader_BOOT0
7 RS232_RTS(PD4)
8 RS232_CTS(PD3)/Bootloader_RESET
9 NC
Connectors
MS19140V2
Description
35/66
