UM1564
3

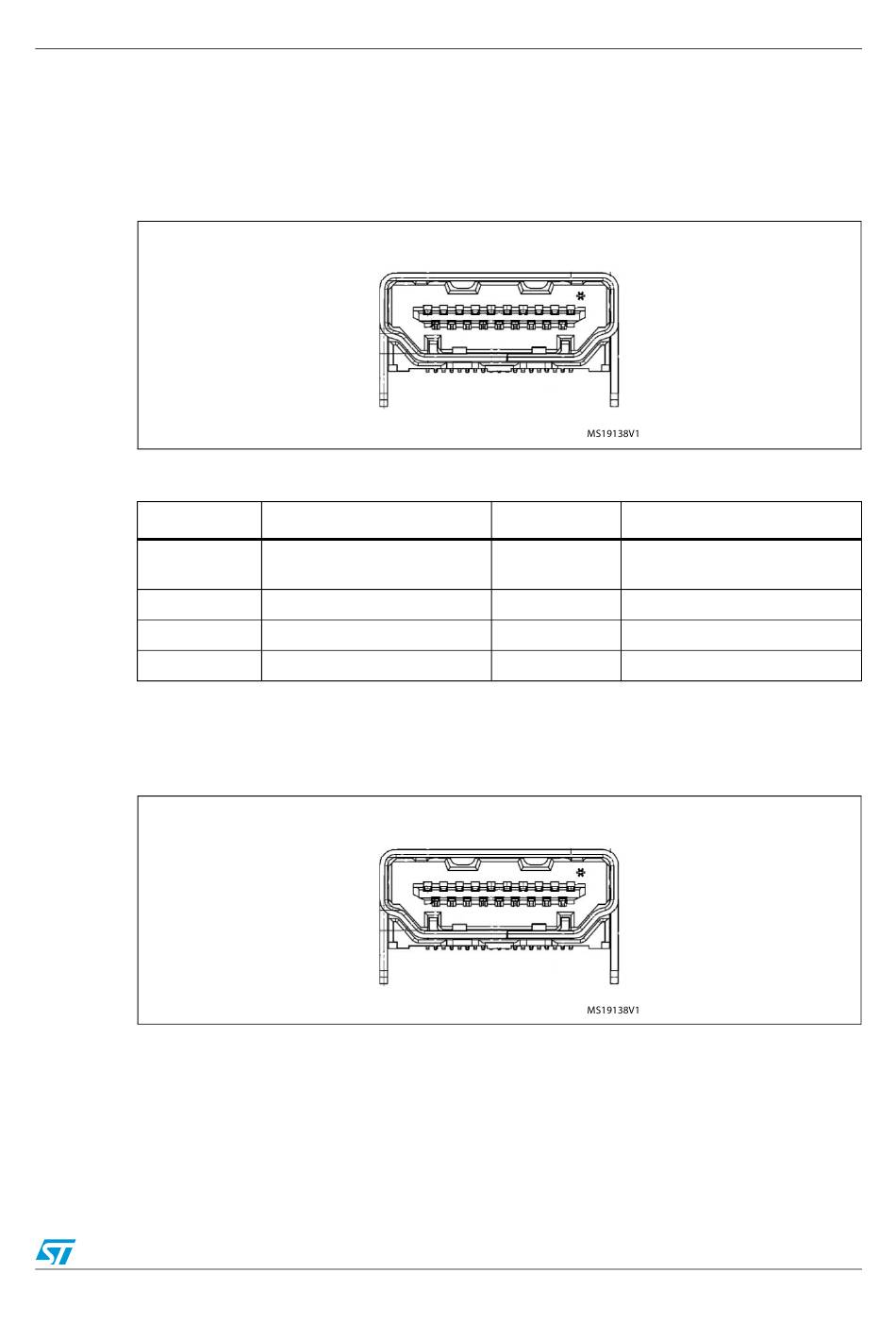

Connectors

3.1

HDMI sink connector CN1

Figure 8.
Table 20.
Pin number
1, 3, 4, 6, 7, 9,
10, 12
2, 5, 8, 11, 17
13
14
3.2

HDMI source connector CN2

Figure 9.
HDMI sink connector CN1 (front view)
HDMI sink connector CN1
Description
TMDS differential signal pair
connected to CN2
GND
CEC (PB8 through NMOS)
NC
HDMI source connector CN2 (front view)
Doc ID 023566 Rev 1
Pin number
15 I2C1_SCL (PB6)
16 I2C1_SDA (PB7)
18 HDMI_5V_Sink
19 HPD (PE0 through transistor)
Connectors
Description
31/66
