The View/Record Mode tab
The View/Record Mode tab presents a plot of the current tank conditions where each radar echo
is displayed as a peak in the signal plot.
When clicking the Echo Curve icon under Device Config/Tools, the Echo Curve Analyzer window
appears with the View/Record Mode tab selected:

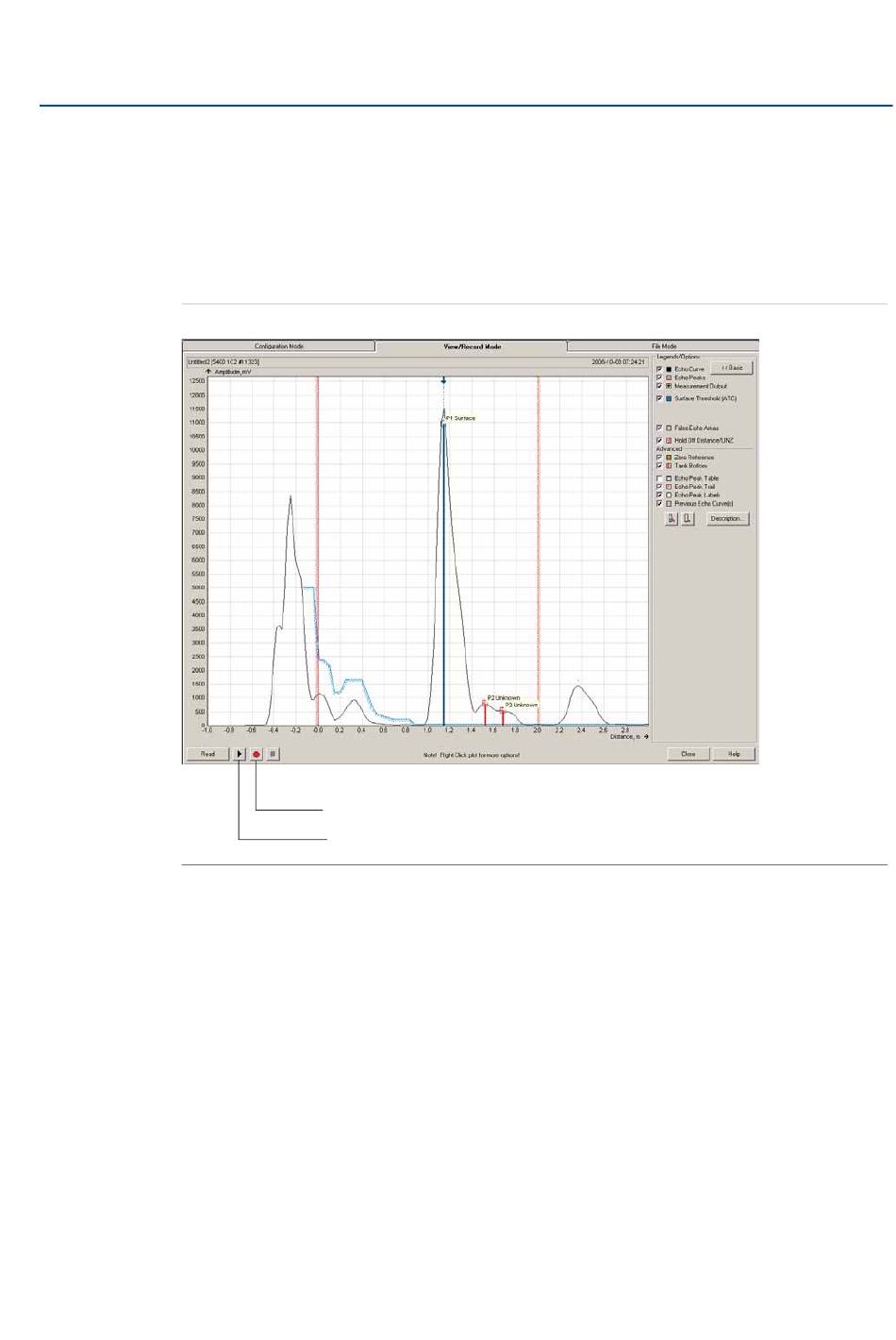

Figure 7-9. A Echo Curve Plot in View/Record Mode
Advanced
The Advanced button opens a list below the Echo Curve plot with information on all echoes in
the tank, such as signal amplitude and position in the tank.
Play
When the Play button is clicked, the tank is continuously updated without being stored.
Record tank spectra
This function records tank spectra over time. This can be a useful function if, for example,
studying the tank signal when filling or emptying the tank is desired.
File mode tab
The File Mode tab will open files with saved snapshots/movies to be presented in the spectrum
plot. A movie file can be played to view the amplitude plot at the desired update rate.
Service and Troubleshooting
Record tank spectra
Play (continuously updates the spectrum)
