5. Remove the system board assembly on page 28.
6. If the expansion board is shipped with an air baffle attached, remove this baffle from the board.
7. If the expansion board is shipped with a full-height bracket attached, replace it with a low-profile one.
8. Install the expansion board.
9. Install the system board assembly on page 27
10. Connect all necessary internal cabling to the expansion board.
For more information on these cabling requirements, see the documentation that ships with the option.
11. Install the chassis cover on page 27.
12. Connect all peripheral cables to the server.
13. Connect the power cord to the server power jack, and then to the AC source.
14. Power up the server on page 22.

Remove the air baffle from the expansion board

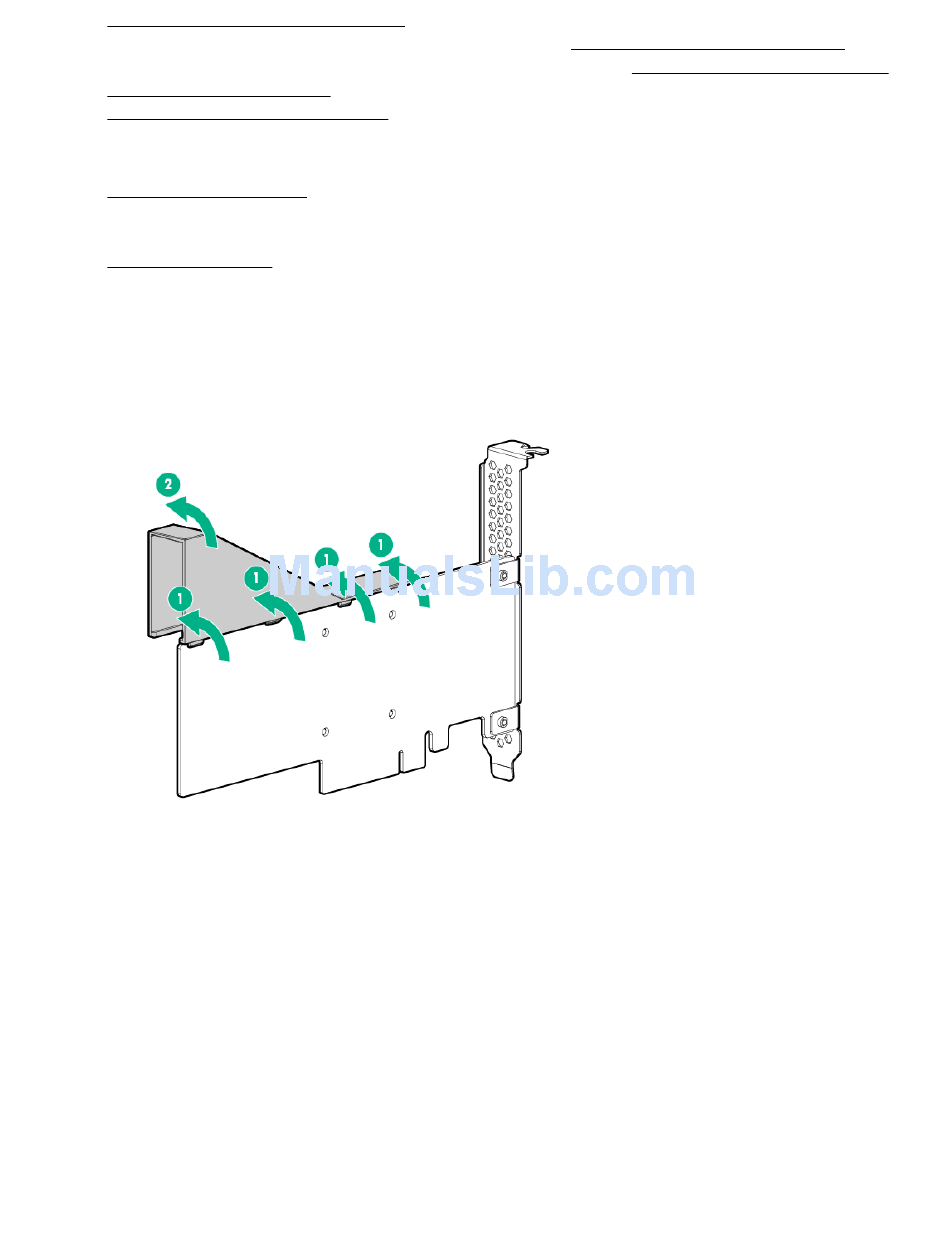

Remove the air baffle from the expansion board.
The number and location of the latches that secure the baffle to the board will vary depending on the
expansion board. The illustration below is an example image only. See the expansion board
documentation for model-specific information.

Install a low-profile bracket on the expansion board

About this task
The number and location of the bracket screws will vary depending on the expansion board. The illustrations
below are example images only. See the expansion board documentation for model-specific information.
Procedure
1. Remove the full-height bracket from the expansion board.
