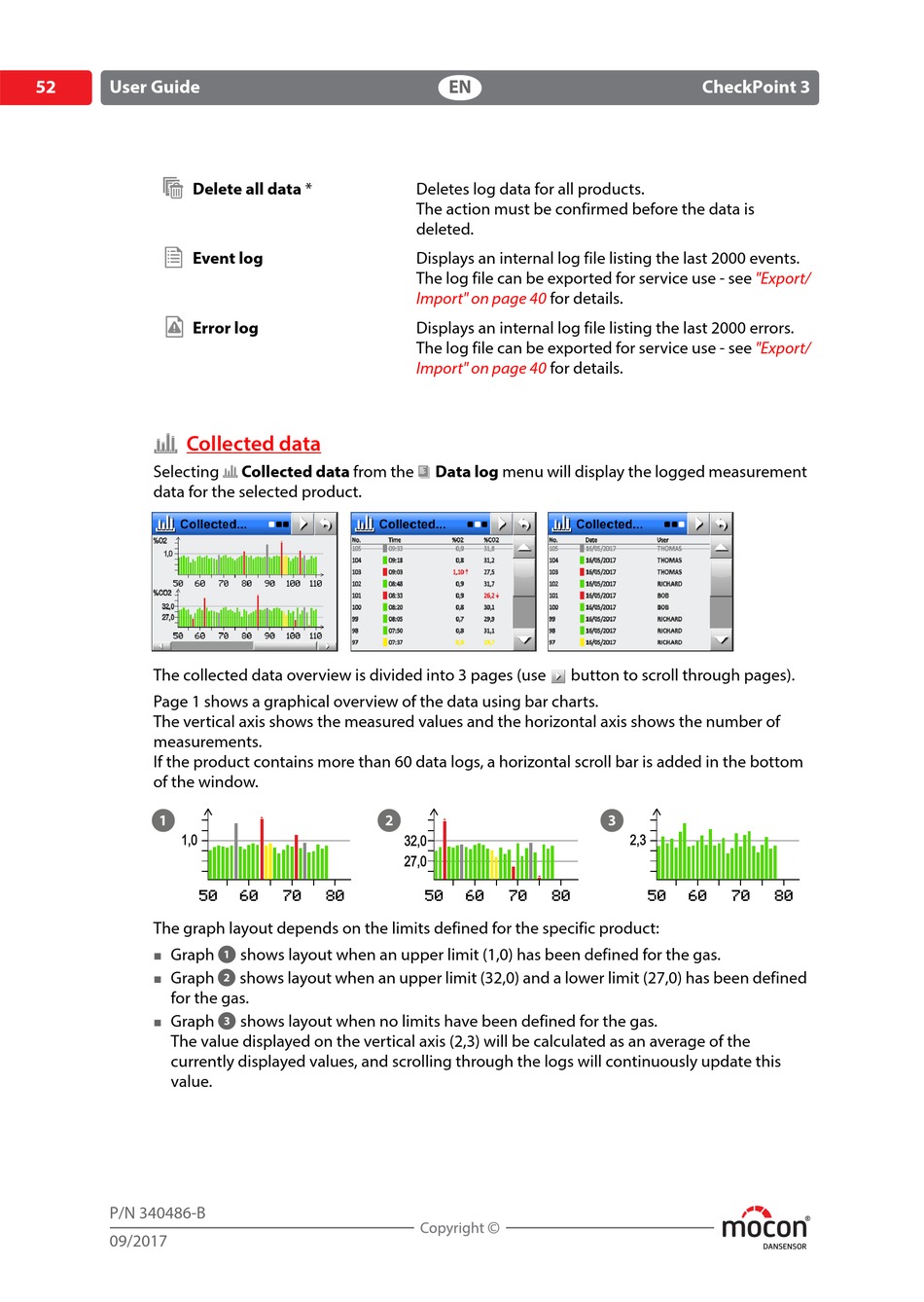

User Guide
Delete all data *
Event log
Error log

Collected data

Selecting
data for the selected product.
The collected data overview is divided into 3 pages (use
Page 1 shows a graphical overview of the data using bar charts.
The vertical axis shows the measured values and the horizontal axis shows the number of
measurements.
If the product contains more than 60 data logs, a horizontal scroll bar is added in the bottom
of the window.
The graph layout depends on the limits defined for the specific product:
Graph
Graph
for the gas.
Graph
The value displayed on the vertical axis (2,3) will be calculated as an average of the
currently displayed values, and scrolling through the logs will continuously update this
value.
P/N 340486-B
09/2017
Collected data from the
shows layout when an upper limit (1,0) has been defined for the gas.
shows layout when an upper limit (32,0) and a lower limit (27,0) has been defined
shows layout when no limits have been defined for the gas.
EN
Deletes log data for all products.
The action must be confirmed before the data is
deleted.
Displays an internal log file listing the last 2000 events.
The log file can be exported for service use - see
Import" on page 40
for details.
Displays an internal log file listing the last 2000 errors.
The log file can be exported for service use - see
Import" on page 40
for details.
Data log menu will display the logged measurement
button to scroll through pages).
