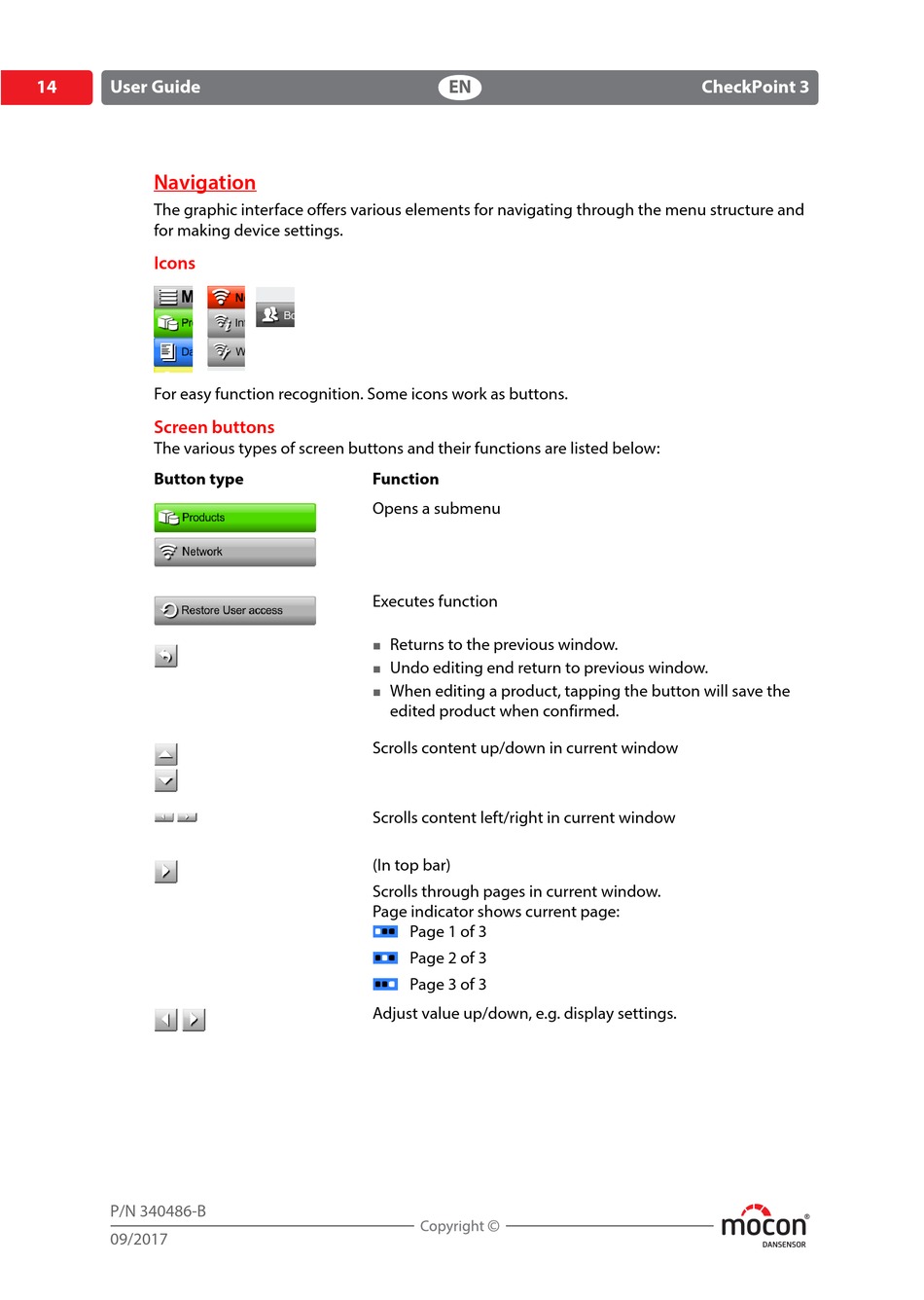

The graphic interface offers various elements for navigating through the menu structure and
for making device settings.
Icons
For easy function recognition. Some icons work as buttons.
Screen buttons
The various types of screen buttons and their functions are listed below:
Button type
P/N 340486-B
09/2017
EN
Function
Opens a submenu
Executes function
Returns to the previous window.
Undo editing end return to previous window.
When editing a product, tapping the button will save the
edited product when confirmed.
Scrolls content up/down in current window
Scrolls content left/right in current window
(In top bar)
Scrolls through pages in current window.
Page indicator shows current page:
Page 1 of 3
Page 2 of 3
Page 3 of 3
Adjust value up/down, e.g. display settings.
