User Guide

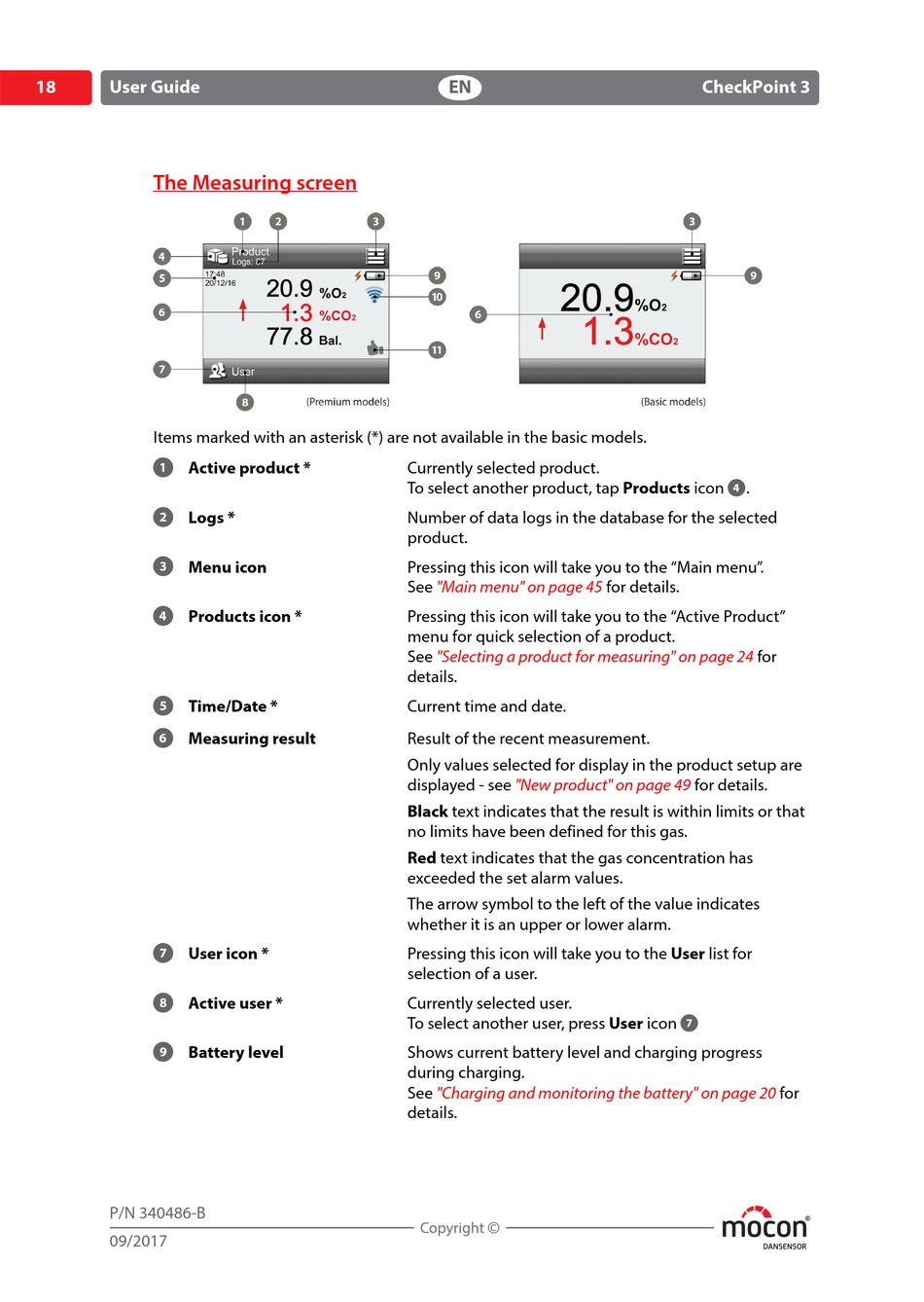

The Measuring screen

Items marked with an asterisk (*) are not available in the basic models.
Active product *
Logs *
Menu icon
Products icon *
Time/Date *
Measuring result
User icon *
Active user *
Battery level
P/N 340486-B
09/2017
EN
Currently selected product.
To select another product, tap Products icon
Number of data logs in the database for the selected
product.
Pressing this icon will take you to the "Main menu".
See
"Main menu" on page 45
Pressing this icon will take you to the "Active Product"
menu for quick selection of a product.
See
"Selecting a product for measuring" on page 24
details.
Current time and date.
Result of the recent measurement.
Only values selected for display in the product setup are
displayed - see
"New product" on page 49
Black text indicates that the result is within limits or that
no limits have been defined for this gas.
Red text indicates that the gas concentration has
exceeded the set alarm values.
The arrow symbol to the left of the value indicates
whether it is an upper or lower alarm.
Pressing this icon will take you to the User list for
selection of a user.
Currently selected user.
To select another user, press User icon
Shows current battery level and charging progress
during charging.
See
"Charging and monitoring the battery" on page 20
details.
CheckPoint 3
.
for details.
for
for details.
for
