SBC84620 AMD Geode GX3 All-in-One Capa Board User's Manual
C h a p t e r 1
Introduction
®

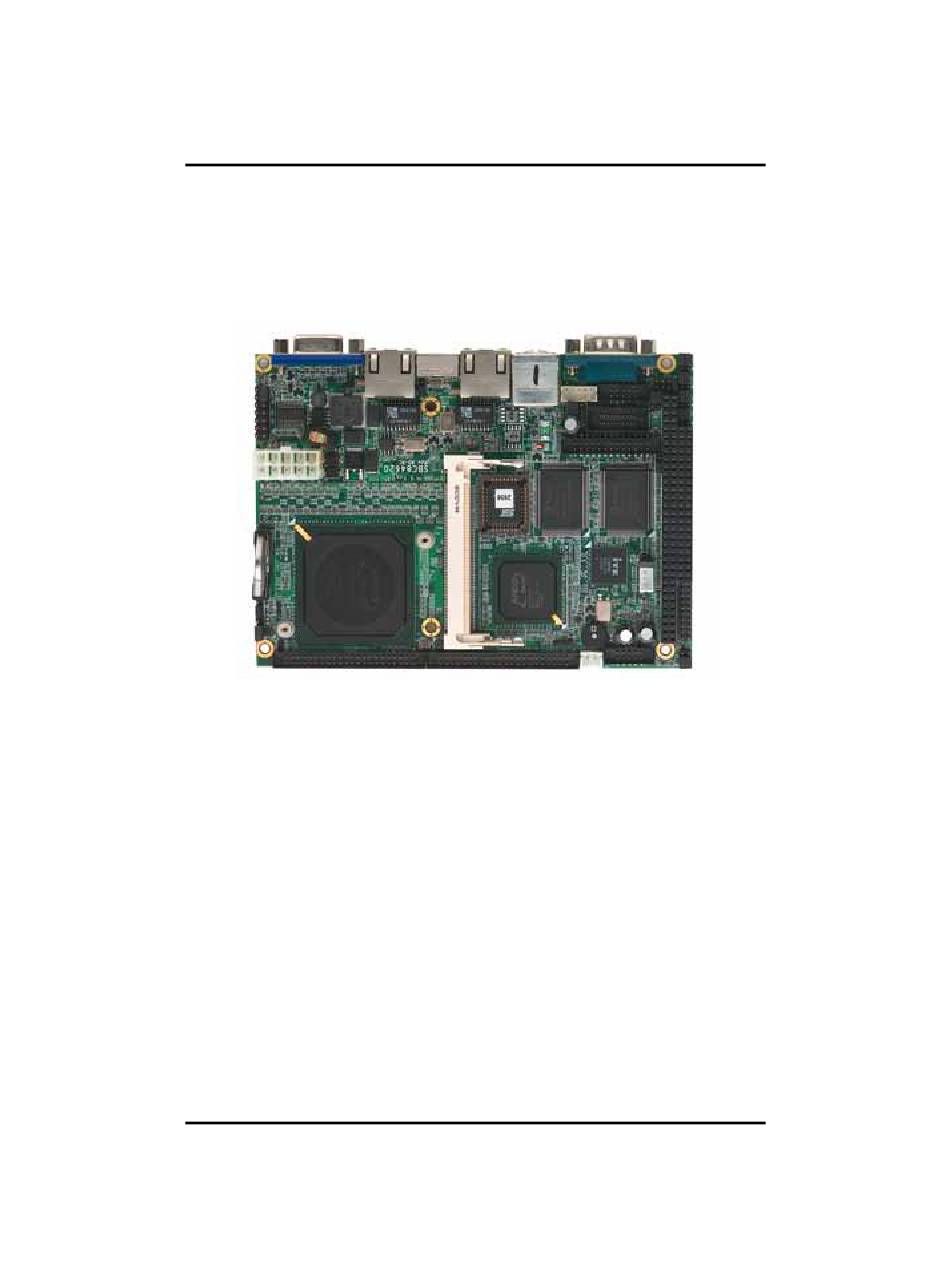

The SBC84620 is a Capa board with support for AMD LX800 CPU
at FSB 500 MHz (optional LX700 433 MHz) that features graphics,
Fast Ethernet and an audio interface. The board can be adapted to
®
AMD processors with its designing for space-limited applications,
and a standard format conforming to the size of a 3.5" Hard Disk drive.
To simplify the system integration, super I/Os, LCD, Ethernet and
solid state disk are provided to make all on one single borad. Four
serial ports (3 x RS-232, 1 x RS-232/422/485) with +5V/12V power
capability make a unique embedded feature to apply an extensive
array of PC peripherals. The industrial-grade construction of
SBC84620 Series allows your system to endure the continuous
operation in hostile environments where most require stability and
reliability. The system dependability of SBC84620 Series can be
enhanced by its built-in watchdog timer, a special industrial feature
not commonly seen on other motherboards.
