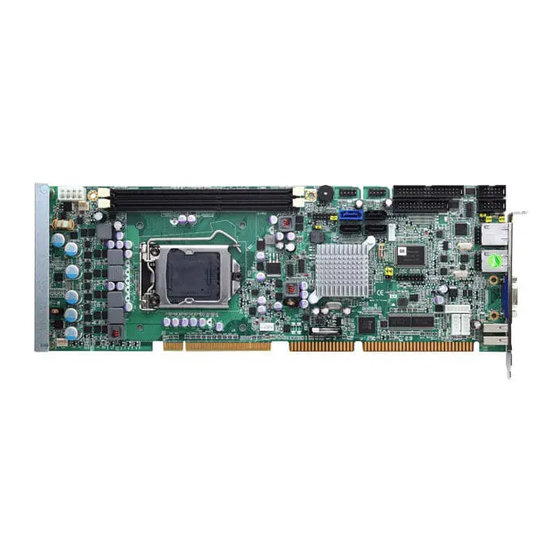

AXIOMTEK SBC81210 Series Quick Installation Manual

SBC81210 Series Quick Installation Guide
V.

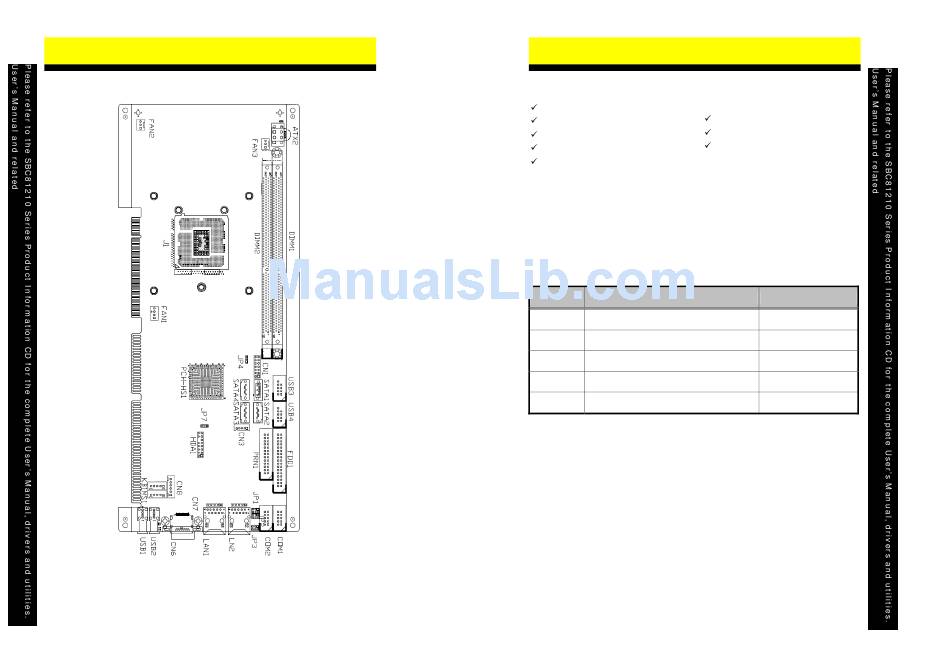

Board Layout
4
©Copyright 2011 Axiomtek Co., Ltd.
Version A1 September 2011
Printed in Taiwan
94181210010E
SBC81210 Series Quick Installation Guide
I.
Checklist
CPU Board x 1
Quick Installation Guide x 1
Product Information CD-ROM x 1
SATA Cable x 1
COM , Printer Port Cable with
Note: Please contact your local vendors if any damaged or missing items.
DO NOT apply power to the board if any damaged components.
II.
Jumper Settings
Proper jumper settings configure the SBC81210 to meet your
application purpose. We are herewith listing a summary table of all
jumpers and default settings for onboard devices, respectively.
Jumper Description
JP1 COM2 Mode Selection: RS-232
JP2 COM2 Mode Selection: RS-232
JP3 COM2 Mode Selection: RS-232
JP4 Power On Control Mode
JP7 CMOS Clear
©Copyright 2011 Axiomtek Co., Ltd.
Version A1 September 2011
Printed in Taiwan
94181210010E
Bracket, Pitch=2.0mm x 1
Mini Jumper 2Pin P=2.54mm x 3
Mini Jumper 2Pin P=2.0mm x 6
FDD Cable x1
Jumper Setting
Short 1-2
Short 3-5 , 4-6
Short 3-5 , 4-6
Short 1-2
Short 1-2
1
