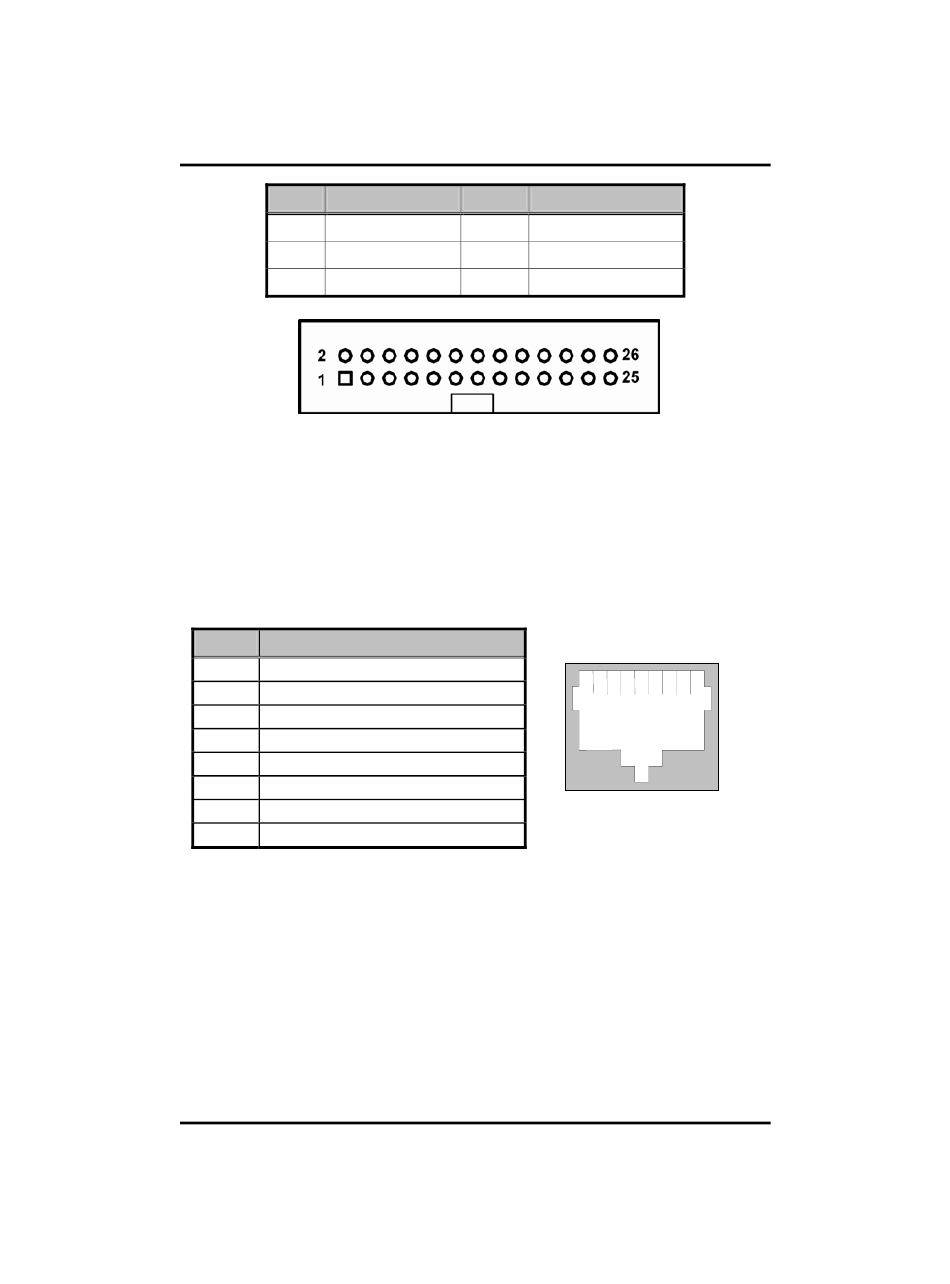

2.4.10 Ethernet PJ-45 Connectors (LAN1, LAN2)

The RJ-45 connector is for Ethernet. To connect the board to a 100/10
Base-T hub, just plug one end of the cable into LAN1/LAN2, and
connect the other end (phone jack) to a 1000/100/10-Base-T hub.
Pin
1 Tx+(Data transmission positive)
2 Tx-(Data transmission negative)
3 Rx+(Data reception positive)
4 RJ45 termination
5 RJ45 termination
6 Rx- (Data reception negative)
7 RJ45 termination
8 RJ45 termination
26
Signal Pin
Busy 22
24
26
Signal
Signal
GND
GND
NC
LAN1/LAN2
1 2 3 4 5 6 7 8
RJ-45
