SBC84620 AMD
Geode GX3 All-in-One Capa Board User's Manual
2.4.16 CompactFlash
The board is equipped with a CompactFlash disk type-II socket on the
solder side that supports the IDE interface CompactFlash disk card
with DMA mode supported. The socket is especially designed to avoid
any incorrect installation of the CompactFlash disk card.
When installing or removing the CompactFlash disk card, please make
sure that the system power is off.

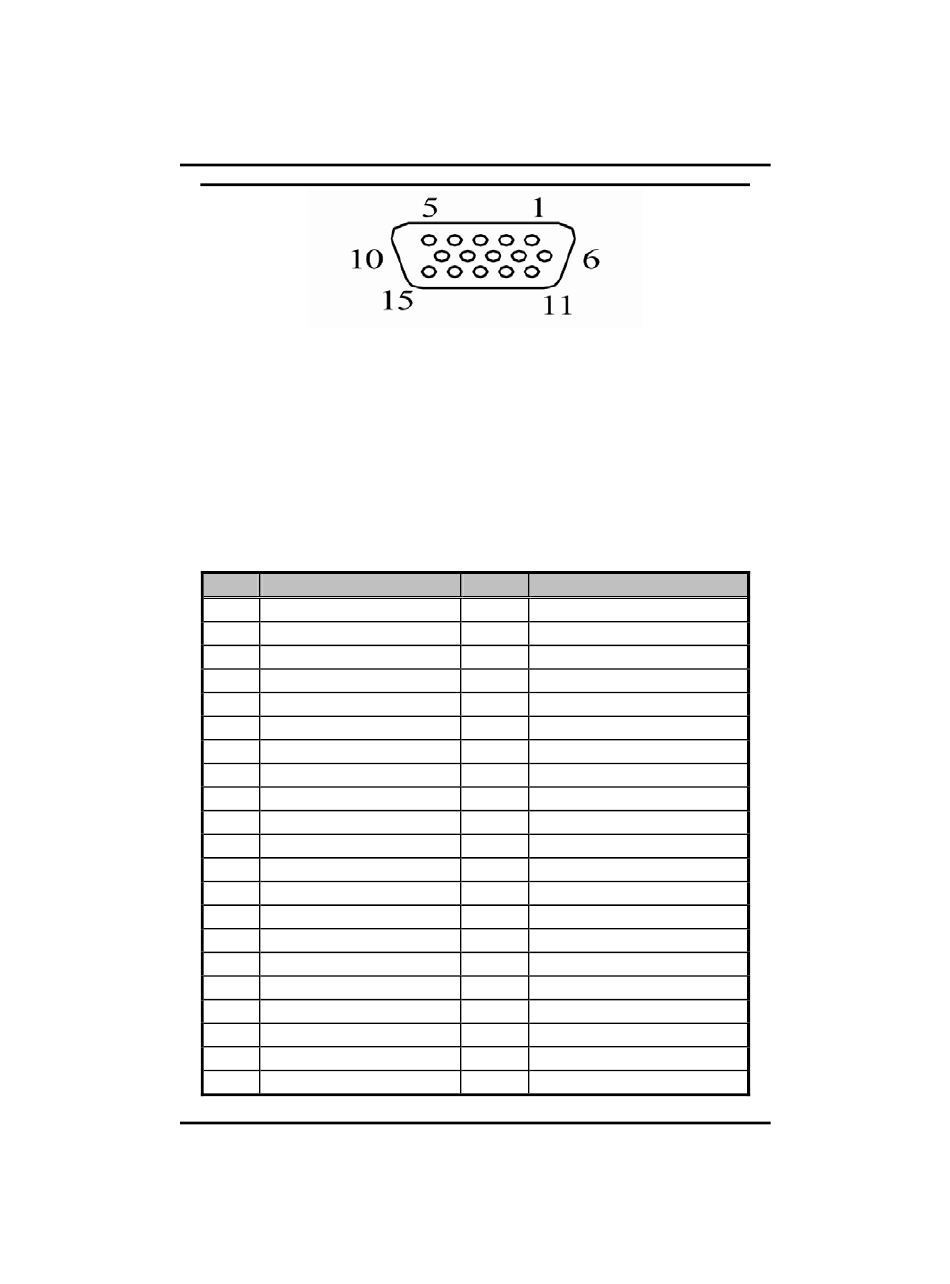

Pin
Signal
1
GND
2
Data 3
3
Data 4
4
Data 5
5
Data 6
6
Data 7
7
CS0#
8
Address 10
9
ATASEL
10
Address 9
11
Address 8
12
Address 7
13
VCC
14
Address 6
15
Address 5
16
Address 4
17
Address 3
18
Address 2
19
Address 1
20
Address 0
21
Data 0
32
TM
Connector (CN17)
Pin
26
CD1-
27
Data 11
28
Data 12
29
Data 13
30
Data 14
31
Data 15
32
CS1#
33
VS1#
34
IORD#
35
IOWR#
36
WE#
37
INTR
38
VCC
39
CSEL#
40
VS2#
41
RESET#
42
IORDY#
43
DMAREQ
44
DMAACK-
45
DASP#
46
PDIAG#
Jumpers and Connectors
Signal
