SBC84620 AMD
Geode GX3 All-in-One Capa Board User's Manual
Note

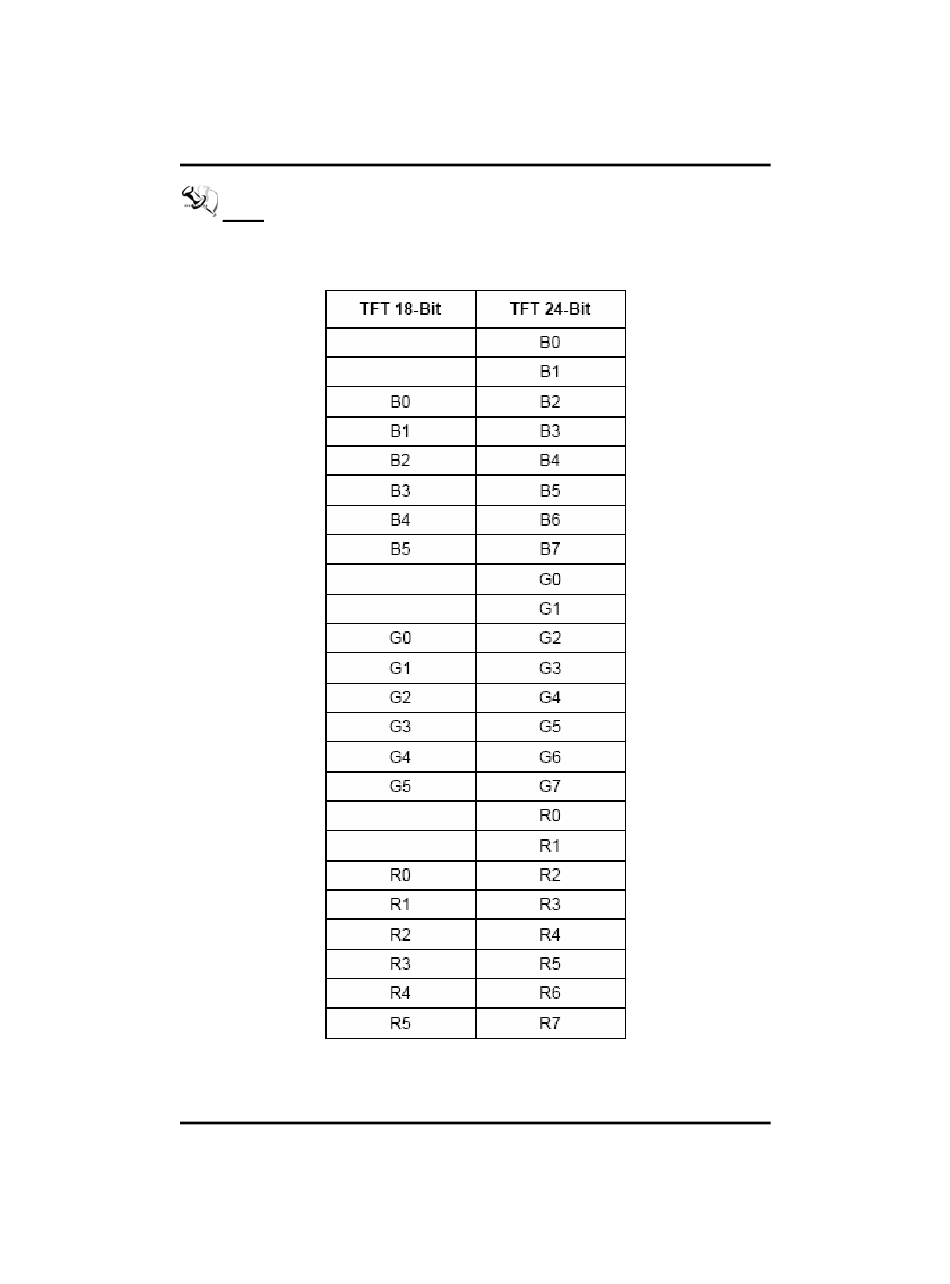

* If using the 18-bit LCD panel, please refer to this table below:
(B6,B7,G6,G7,R6,R7 is LSB)
Jumpers and Connectors
