SBC84620 AMD Geode GX3 All-in-One Capa Board User's Manual
HDD Activity LED
This connection is linked to hard drive activity LED on the control
panel. LED flashes when HDD is being accessed. Pin 13 and 14
connect the hard disk drive to the front panel HDD LED, Pin 13
assigned as -, and Pin 14 as +

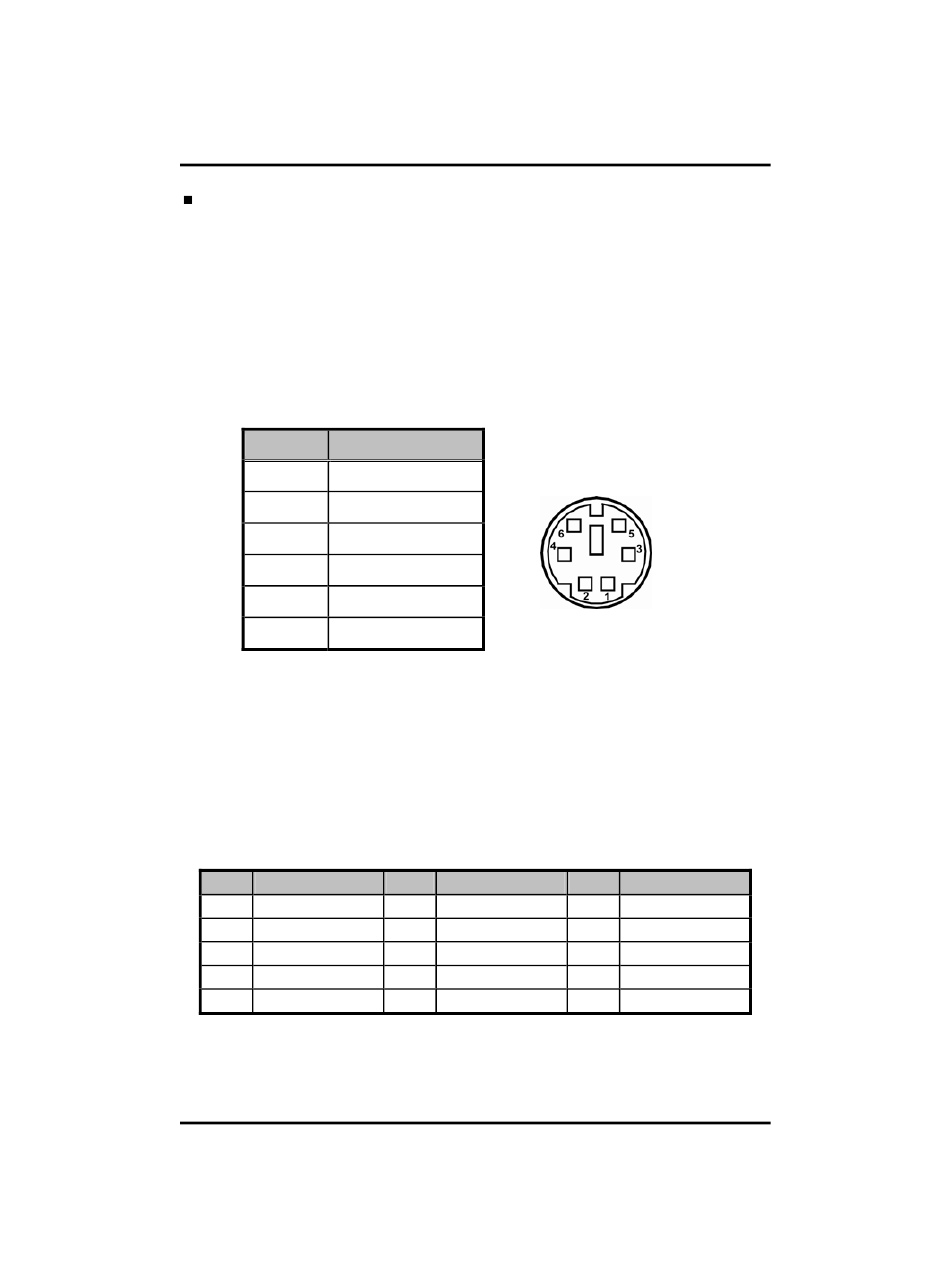

2.4.14 Keyboard and PS/2 Mouse Connector (CN14)

The board supports a keyboard and Mouse interface. Connector CN14
is a DIN connector for PS/2 keyboard Connection VIA "Y" Cable.
Pin
1 Keyboard Data
2 Mouse Data
3 GND
4 VCC
5 Keyboard Clock
6 Mouse Clock

2.4.15 VGA Connector (CN15)

The board has three connectors to support CRT VGA and flat panel
displays, individually or simultaneously. CN15 is a slim type 15-pin D-
Sub connector commonly for the CRT VGA display. The VGA interface
configuration is done via the software utility, and no jumper setting is
required.
Pin Signal
1 Red
4 N/A
7 AGND
10 GND
13 Horizontal Sync
CN15
Jumpers and Connectors
Signal
Pin Signal
2 Green
5 GND
8 AGND
11 N/A
14 Vertical Sync
CN14
Pin Signal
3 Blue
6 AGND
9 N/A
12 DDC DAT
15 DDC CLK
31
