IO Space 0/1/2/3/4/5 Size
This item allows the user to decide the Size of I/O Space
0/1/2/3/4/5. The options available are "1, 2, 4, 8, 16, 32, 64 and
128".
IO Base Address 0/1/2/3/4/5
This item allows the user to decide the Base Address of Decode
I/O 0/1/2/3/4/5. The available value are 0000~FFFF.

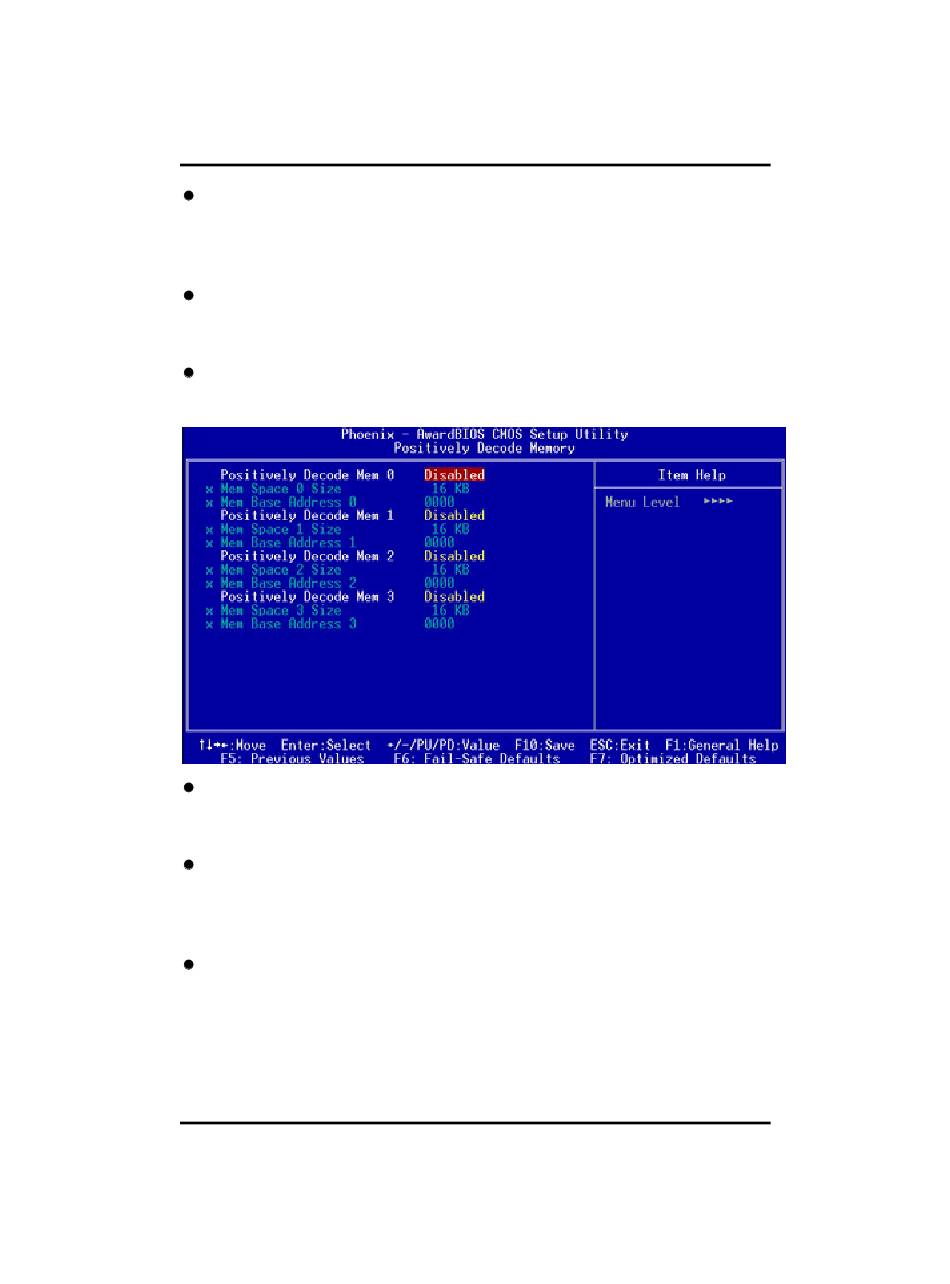

Positively Decode Memory
Press Enter to set ITE8888 Decode Memory function.
Positively Decode Mem 0/1/2/3 IO Space 0 Size
This item allows the user to enable/disablee the Positively Decode
Mem 0/1/2/3. The default setting is "Disabled".
Mem Space 0/1/2/3 Size
This item allows the user to decide the Size of Memory Space
0/1/2/3. The options available are "16KB, 32 KB, 64 KB, 128 KB,
256 KB, 512 KB, 1MB and 2MB".
Mem Base Address 0/1/2/3
This item allows the user to decide the Base Address of Decode
Memory 0/1/2/3/4/5. The available value are 0000~FFFF.
Press <Esc> to return to the Main Menu page.
