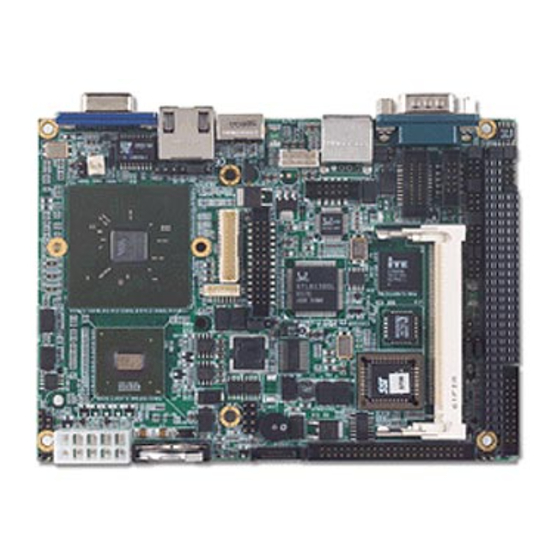

AXIOMTEK SBC84710 Series Quick Installation Manual

SBC84710 Series Quick Installation Guide

Checklist

SBC84710 Board x 1

Quick Installation Guide x 1

Product Information CD-ROM x 1

2-pin jumper cap, Pitch=2.54mm x 10

2-pin jumper cap, Pitch=2.0mm x 10

COM+Printer extension cables with

bracket, Pitch=2.0mm x 1

If there are damaged or missing parts, contact your supplier

and/or dealer immediately. Do not attempt to apply power to

the board if there is damage to any of its components.

II.

User's Manual and other documents are in

Acrobat PDF format. The Product Information

CD contains the Adobe Acrobat 3.0 Reader

installation software for user's convenience.

Version A1 February 2007

Printed in Taiwan

94284710000E

2COM extension cables with

bracket, Pitch=1.27mm x 1

ATX Power Cable 10P

L=150mm

Audio Cable x 1

USB Cable x 1

2.5" & 3.5" HDD cable x 1

Table of Contents

Do you have a question about the SBC84710 Series and is the answer not in the manual?

Page 1 SBC84710 Series Quick Installation Guide Checklist 2COM extension cables with SBC84710 Board x 1 bracket, Pitch=1.27mm x 1 Quick Installation Guide x 1 ATX Power Cable 10P Product Information CD-ROM x 1 L=150mm 2-pin jumper cap, Pitch=2.54mm x 10 Audio Cable x 1 2-pin jumper cap, Pitch=2.0mm x 10...
Page 2 SBC84710 Series Quick Installation Guide III. Jumper Settings Before turning on the power to the SBC84710 Series, please make sure that all jumpers are on their default settings as listed on the table below. Jumper Default Setting Jumper Setting Normal Operation/Clear CMOS setting...
Page 3 SBC84710 Series Quick Installation Guide SBC84710 Connectors Connectors Label HDD Activity LED Connector System Reset Switch Connector SATA Connector Primary IDE Connector Power Connector +12V Only 2*10pin DIO Mini PCI Slot PC104-A LVDS Backlight Connector CN10 PC104-B CN11 Printer Port Connector (LPT)
Page 4 SBC84710 Series Quick Installation Guide Connectors Label DDR RAM Connector CNS2 CF Connector CNS3 Ethernet Connector LAN1 V Board Layout Component Side ©Copyright 2007 AXIOMTEK Co., Ltd. Version A1 February 2007 Printed in Taiwan 94284710000E...
