AXIOMTEK SBC84820 Series Quick Installation Manual

SBC84820 Series Quick Installation Guide
I.

Checklist

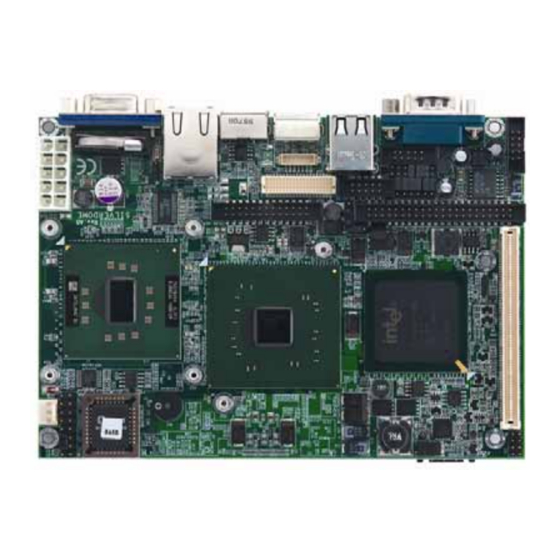

SBC84820 Board x 1
Quick Installation Guide x 1
Product Information CD-ROM x 1
2-pin jumper cap, Pitch=2.54mm x 5
2-pin jumper cap, Pitch=2.0mm x 10
PS/2 Keyboard/Mouse adapter x 1
If there are damaged or missing parts, contact your supplier
and/or dealer immediately. Do not attempt to apply power to
the board if there is damage to any of its components.
II.

Jumper Settings

Before turning on the power to the SBC84820 Series,
please make sure that all jumpers are on their default
settings as listed on the table below.
Jumper Default Setting
Compact Flash Power Select : 3.3V
JP1
LVDS Voltage select : 3.3V
JP2
COM1 Mode Select: RS-232
JP3
COM1 Mode
JP4
Select
COM2 Mode
JP5
Select
COM1 Mode Select: RS-232
JP6
COM1 Mode Select: RS-232
JP7
Clear CMOS Setting : Normal
JP8
Audio Line Out/Speaker Out: Line Out Short 1-3, 2-4
JP9
©Copyright 2006 AXIOMTEK Co., Ltd.
Version A1 May 2006
Printed in Taiwan
94284820000E
2.5" & 3.5" HDD cable x 1
Power Cable 10 Pin x 1
COM+Printer extension cables
with bracket, Pitch=2.0mm x 1
Audio Cable x 1
Short 1-2
Short 1-2
Short 3-5,4-6
CN15 Pin 1: DCD Short 3-5
CN15 Pin 9: RI
Short 4-6
CN9 Pin 1: DCD Short 3-5
CN9 Pin 8: RI
Short 4-6
Short 3-5,4-6
Short 1-2
Short 1-2
Jumper Setting
1
