SBC84620 AMD Geode GX3 All-in-One Capa Board User's Manual

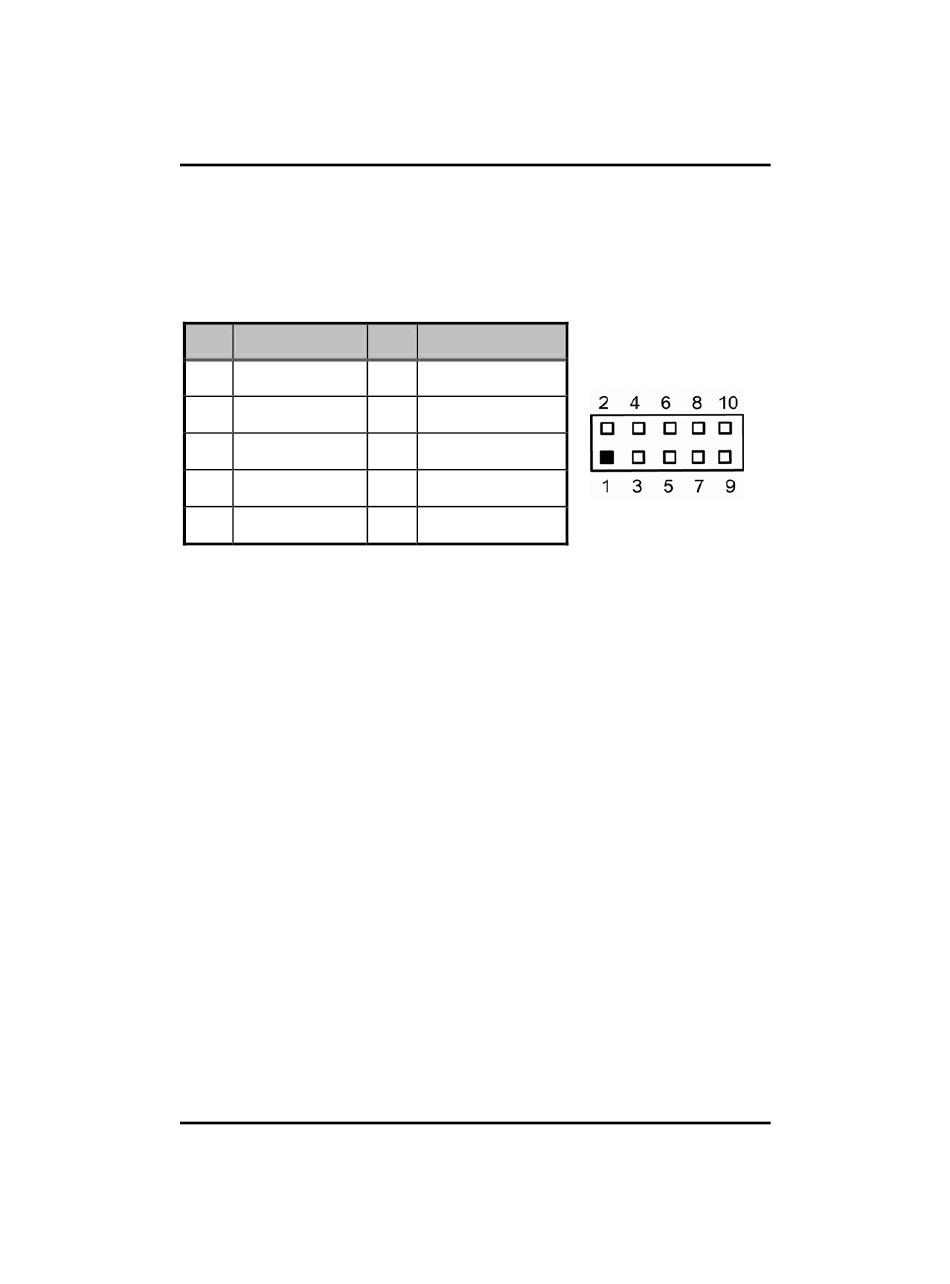

2.4.17.2 USB Connector (USB1)
The Universal Serial Bus (USB) connector on the board is for the
installation of peripherals supporting the USB interface. USB1 is a 10-
pin standard onboard USB connector.
USB2 and USB3
Pin Signal
1 VCC
3 D0-
5 D0+
7 Ground (GND)
9 Ground (GND)
34
Pin Signal
2 VCC
4 D1-
6 D1+
8 Ground (GND)
10 Ground (GND)
USB1
