9. Appendix

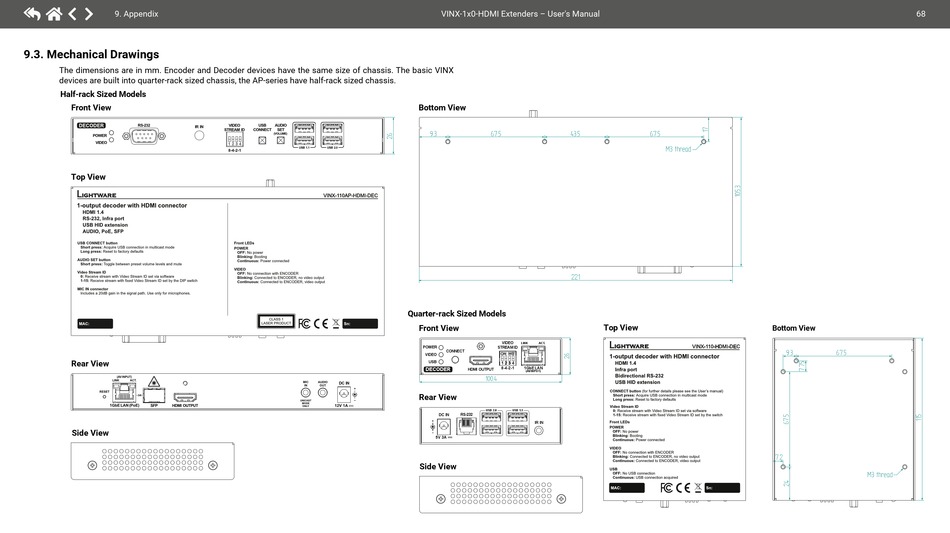

9.3. Mechanical Drawings

The dimensions are in mm. Encoder and Decoder devices have the same size of chassis. The basic VINX
devices are built into quarter-rack sized chassis, the AP-series have half-rack sized chassis.
Half-rack Sized Models
Iront View
Aop View
Rear View
Side View
VINX-1x0-HDMI Extenders – User's Manual
Bottom View
9.3 67.5 43.5
221
Quarter-rack Sized Models
Iront View
VIDEO
LINK ACT.
POWER STREAM ID
CONNECT
VIDEO
USB
8-4-2-1 1GbE LAN
DECODER HDMI OUTPUT
(AV INPUT)
100.4
Rear View
USB 2.0 USB 1.1
RS-232
DC IN
IR IN
5V 3A
Side View
67.5
M3 thread
Aop View
Bottom View
7.2
68
9.3 67.5
M3 thread
