Removal and Replacement
Installation:
1. Position the Clutch Assembly in the Thermal Transfer Assembly.
2. Re-install the Inner and Outer Bearings.
3. Slide the shaft on the Take-up Hub through and secure with the previously removed C-Clip.
4. Re-install Thermal Transfer Assembly and the three Screws.
4.9.2
Supply Hub
Removal:
1. Turn 'Off' and unplug the printer.
2. Remove the three Screws securing the Thermal Transfer Assembly to the printer.
3. Remove the Thermal Transfer Assembly

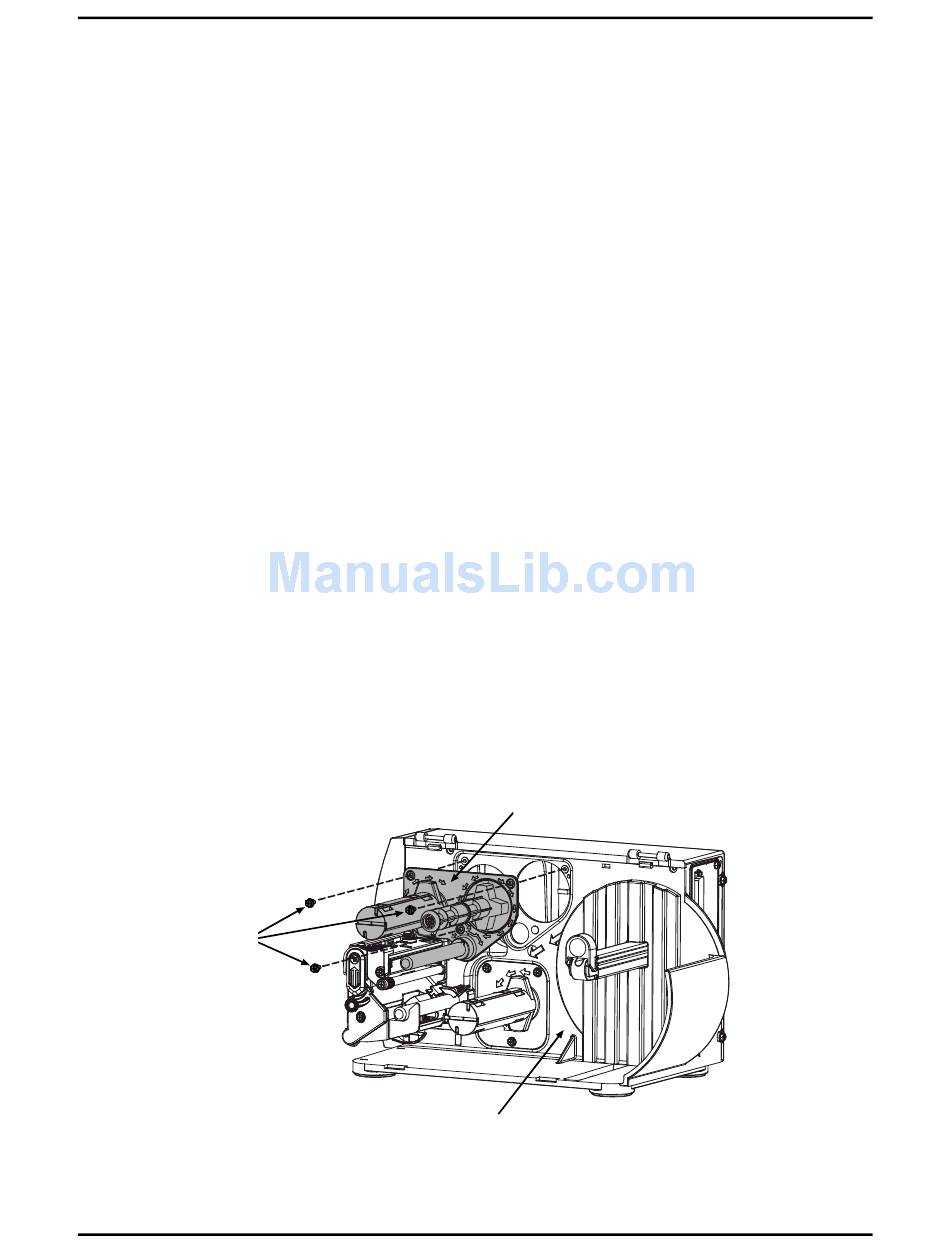

Thermal Transfer Assembly
Screws
Centerplate
4-24
