Removal and Replacement
Installation:
1. Position the Platen Roller(s) in the printer.
2. Re-install the Inner Bearing Plate and Screw.
3. Re-install the Bushings, replace the Outer Bearing Plate and start, but do not tighten the Screw.
4. Ensure that the Leveling Cam is loose, and then close and latch the Printhead Assembly.

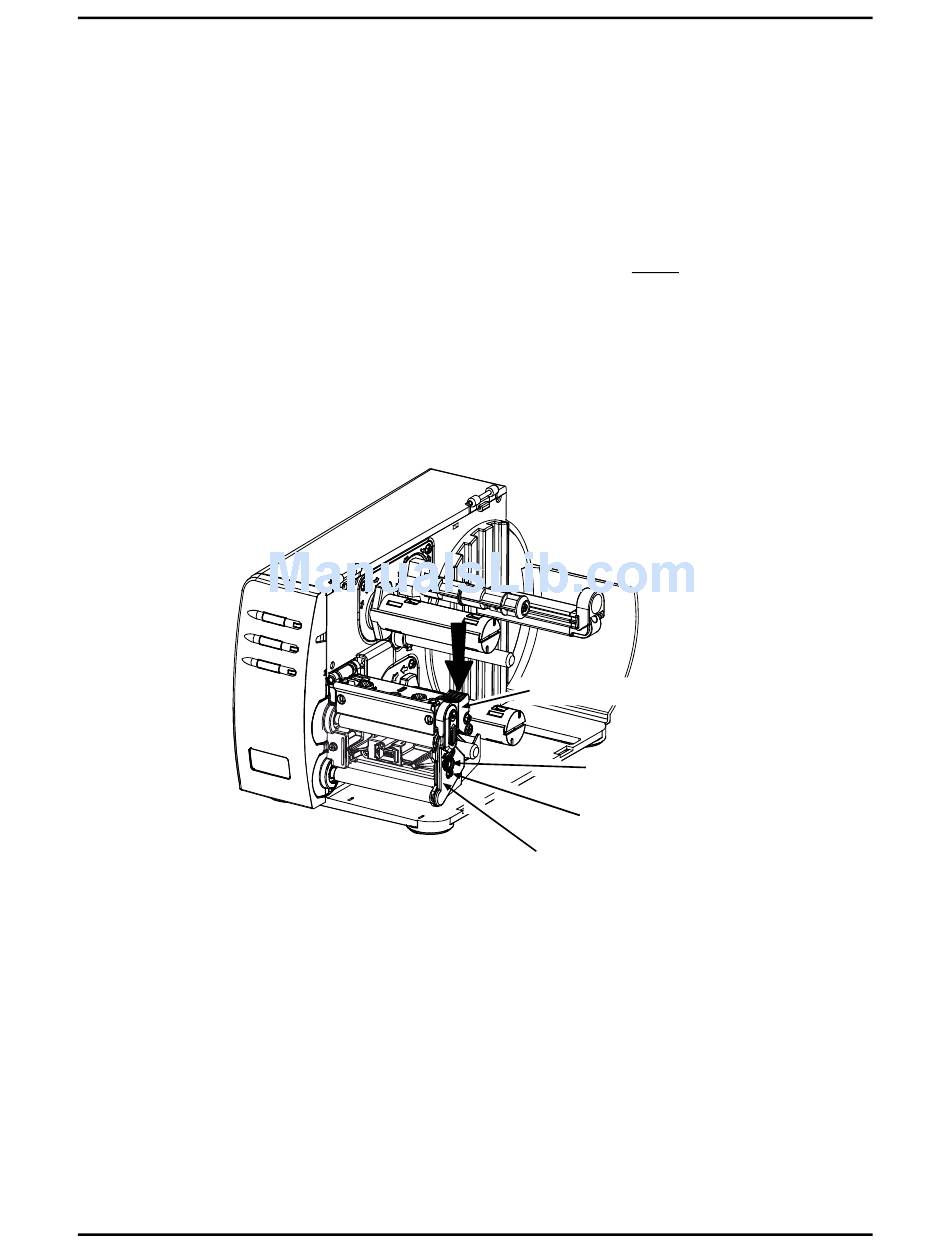

5. While pushing down on the Printhead Assembly, as shown, pull down on the Outer Bearing Plate and
tighten the Screw.
Printhead Assembly
Leveling Cam
Screw
Outer Bearing Plate
6. Re-install the Tearplate, Thumbscrew, and Front Fascia.
7. Re-install the front cover (see Section 4.1).
8. Re-install the side covers (see Section 4.0).
4-22
