6. Remove the two Screws securing the Front Panel PCB to the printer (if you have a Display-Equipped
Model, first remove the Bezel, as shown below). Move the Front Panel PCB away from the printer
slightly, disconnect the Front Panel Cable, and then remove the Front Panel PCB.
Non-Display Models:
Display-Equipped Models:
Installation:
1. Position the Front Panel PCB in the printer. Secure using the two previously removed screws
2. Re-connect the Front Panel Cable to its respective connector on the Main PCB.
3. Re-install the side covers (see Section 4.0).

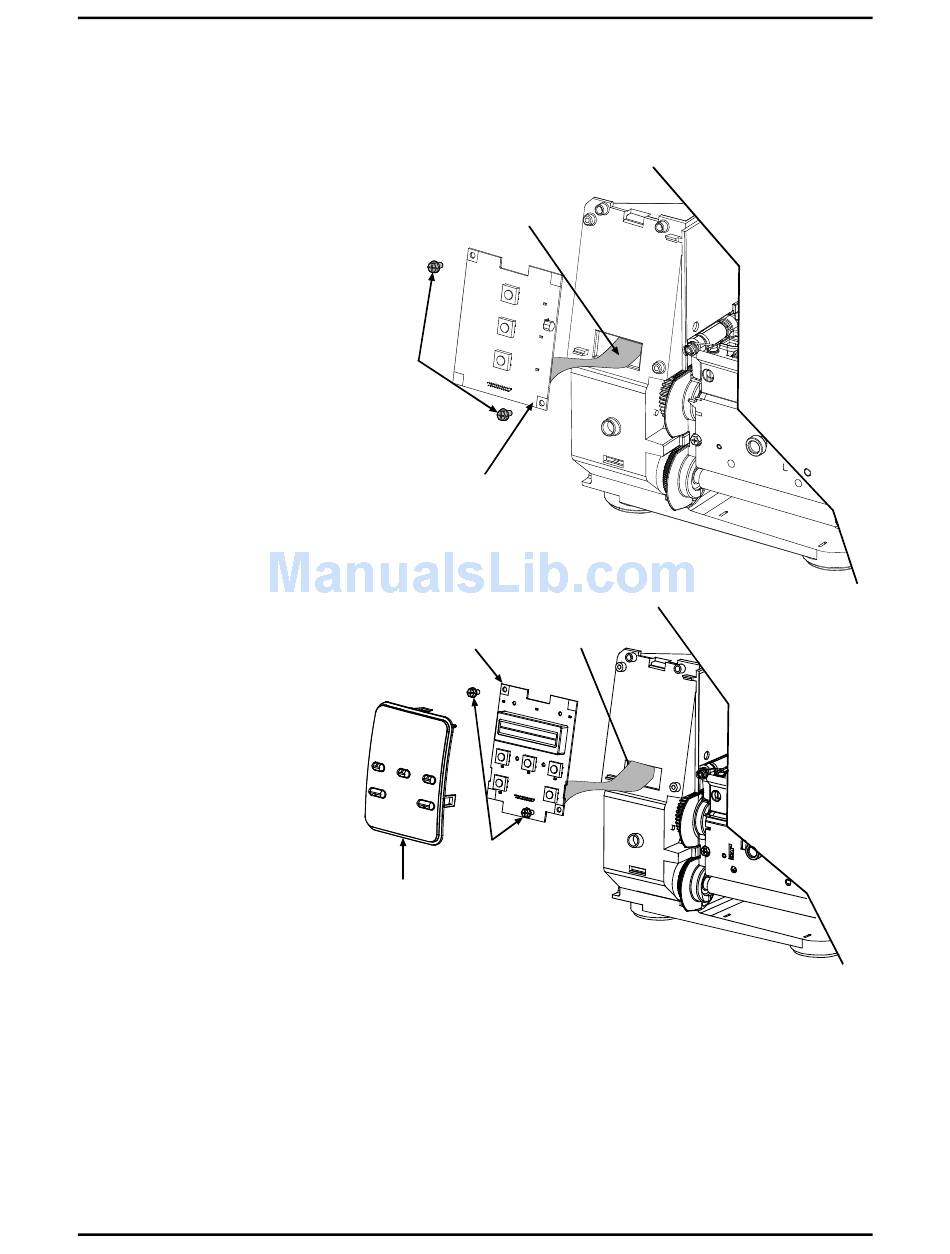

Removal and Replacement
Front Panel
Cable
Screws
Front Panel
PCB
Front Panel Front Panel
PCB
Screws
Front Bezel
4-8
Cable
