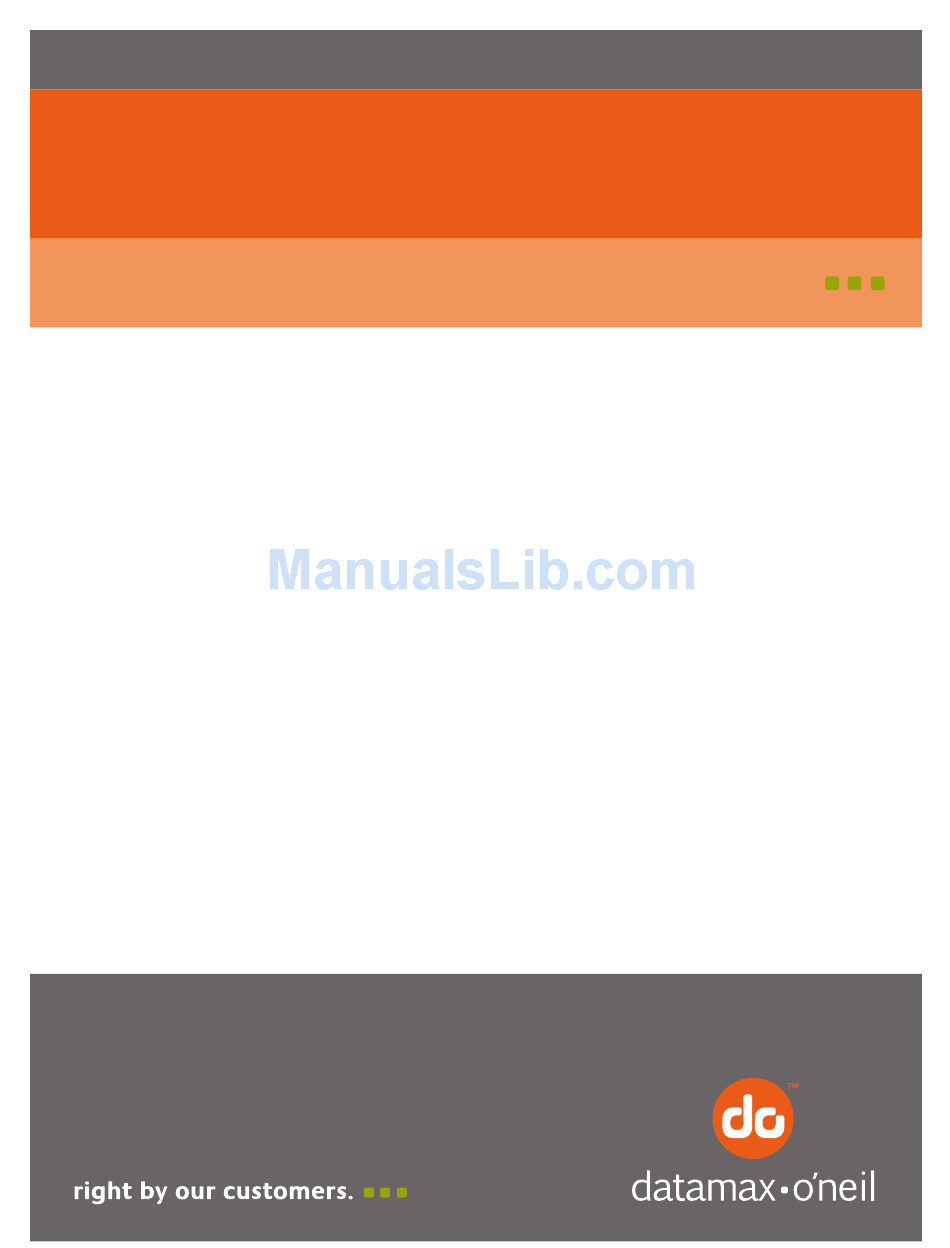

  • Page 1 110287-000 PrintPAD CN70 User Guide...

  • Page 2: Table Of Contents

    ABLE OF ONTENTS PrintPAD CN70 Printer Views..................... 1 Open View..........................1 Closed View..........................1 Using Batteries: General Guidelines ..................1 Installing and/or Replacing Batteries ..................2 Charging the Batteries and Handheld Computer ..............2 Determining Battery Condition ....................3 Installing the Driver ........................3 Using a Handheld Computer (HHC) ...................

  • Page 3: Printpad Cn70 Printer Views

    PrintPAD CN70 USER'S GUIDE PrintPAD CN70 Printer Views Open View Paper/paper cavity Roller 2.5 mm DC jack port Data port Radio LED Reset button Battery Status LED Self-test/paper feed button Power LED Bluetooth button Battery clip Battery/battery cavity Closed View...

  • Page 4: Installing And/Or Replacing Batteries

    PrintPAD CN70 USER'S GUIDE Installing and/or Replacing Batteries 1. Open the printer by unsnapping the latch on the front of the case (Figure 1). 2. Lift the battery cover up by pushing the retainer clip inward with your finger (Figure 2).

  • Page 5: Determining Battery Condition

    The operating temperature of this portable printer is 50° C. However, the operating temperature when used with Datamax-O’Neil power supply for charging the portable printer is limited to 40° C. Charge the printer in a suitable location that meets this temperature requirement.

  • Page 6: Loading Paper

    PrintPAD CN70 USER'S GUIDE Loading Paper 1. Press a new roll of paper into the paper cavity. The end of the roll should exit from the bottom of the paper cavity and face the printer's roller (Figure 8). When properly installed, the roll of paper “latches” into place.

  • Page 7: Printing A Self-Test

    PrintPAD CN70 USER'S GUIDE Printing a Self-Test 1. Open the printer's cover. 2. Press and hold the red self-test button for 4-5 seconds, until the printer starts to print (Figure 13). Figure 13 3. After printing starts, release the red self-test button.

  • Page 8: Using Bluetooth

     Discoverable  Connectable  Encryption  Contact your network administrator to verify the proper radio settings for your environment. PrintPAD CN70 LEDs and Indicators Power LEDs Power LED Radio LED Battery Status LED Battery Status LED Description Action Red (solid): •...

  • Page 9: Audio Indicators

    DEX/UCS port Figure 15 The direct exchange (DEX)/UCS port can only be used with the Datamax-O’Neil approved DEX cable (P/N 210237- xxx). When the DEX cable is plugged into the data port, the printer automatically turns off to allow data transfer between the handheld and the DEX port.

  • Page 10: Using A Cardreader

    PrintPAD CN70 USER'S GUIDE Using a CardReader Note: The following information applies to printers with the CardReader option. Figure 16 General Guidelines To wake up the CardReader, insert a card into the CardReader slot. One short beep indicates the CardReader/ ...
  • Page 11 For more information, see the instruction sheet(s) included with the accessories. Warning: Use of any product not approved by Datamax-O’Neil for use with their printers could cause damage to the batteries and/or printer and will void the warranty.

  • Page 12: Agency Approvals

    PrintPAD CN70 USER'S GUIDE Agency Approvals FCC Notice This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 13: Copyright And Supplies

    This manual and any examples contained herein are provided “as is” and are subject to change without notice. Datamax-O’Neil makes no warranty of any kind with regard to this manual, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. Datamax-O’Neil shall not be liable for any errors or for incidental or consequential damages in connection with the furnishing, performance, or use of this manual or the examples herein.
  • Page 14 COPYRIGHT © 2013, DATAMAX-O’NEIL...
