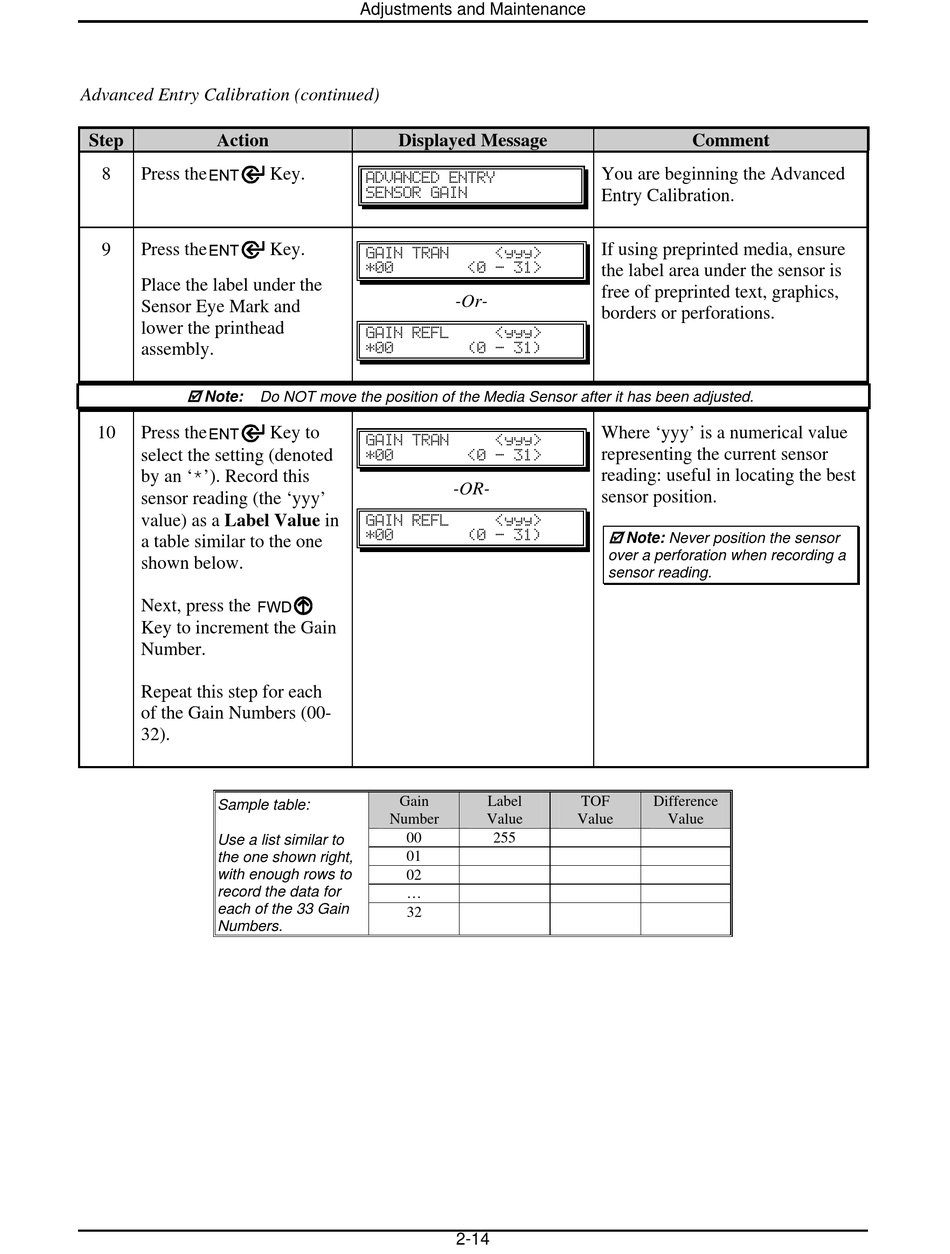

Advanced Entry Calibration (continued)
Step Action
8 Press the
9 Press the
Place the label under the
Sensor Eye Mark and
lower the printhead
assembly.
Note:
10 Press the
select the setting (denoted
by an '*'). Record this
sensor reading (the 'yyy'
value) as a Label Value in
a table similar to the one
shown below.
Next, press the
Key to increment the Gain
Number.
Repeat this step for each
of the Gain Numbers (00-
32).
Sample table:
Use a list similar to
the one shown right,
with enough rows to
record the data for
each of the 33 Gain
Numbers.
Adjustments and Maintenance
Displayed Message
!
Key.
BEWBODFE!FOUSZ!
TFOTPS!HBJO
!!
!
Key.
HBJO!USBO!!!!!=zzz?!
+11!!!!!!!!=1!.!42?
!
HBJO!SFGM!!!!!=zzz?!
+11!!!!!!!!)1!.!42*
Do NOT move the position of the Media Sensor after it has been adjusted.
!
Key to
HBJO!USBO!!!!!=zzz?!
+11!!!!!!!!=1!.!42?
!
HBJO!SFGM!!!!!=zzz?!
+11!!!!!!!!)1!.!42*
Gain
Number
00
01
02
...
32
You are beginning the Advanced
!
Entry Calibration.
If using preprinted media, ensure
!
the label area under the sensor is
free of preprinted text, graphics,
-Or-
borders or perforations.
!
Where 'yyy' is a numerical value
representing the current sensor
!
reading: useful in locating the best
-OR-
sensor position.
!
Note: Never position the sensor
over a perforation when recording a
sensor reading.
Label TOF
Value Value
255
2-14
Comment
Difference
Value
