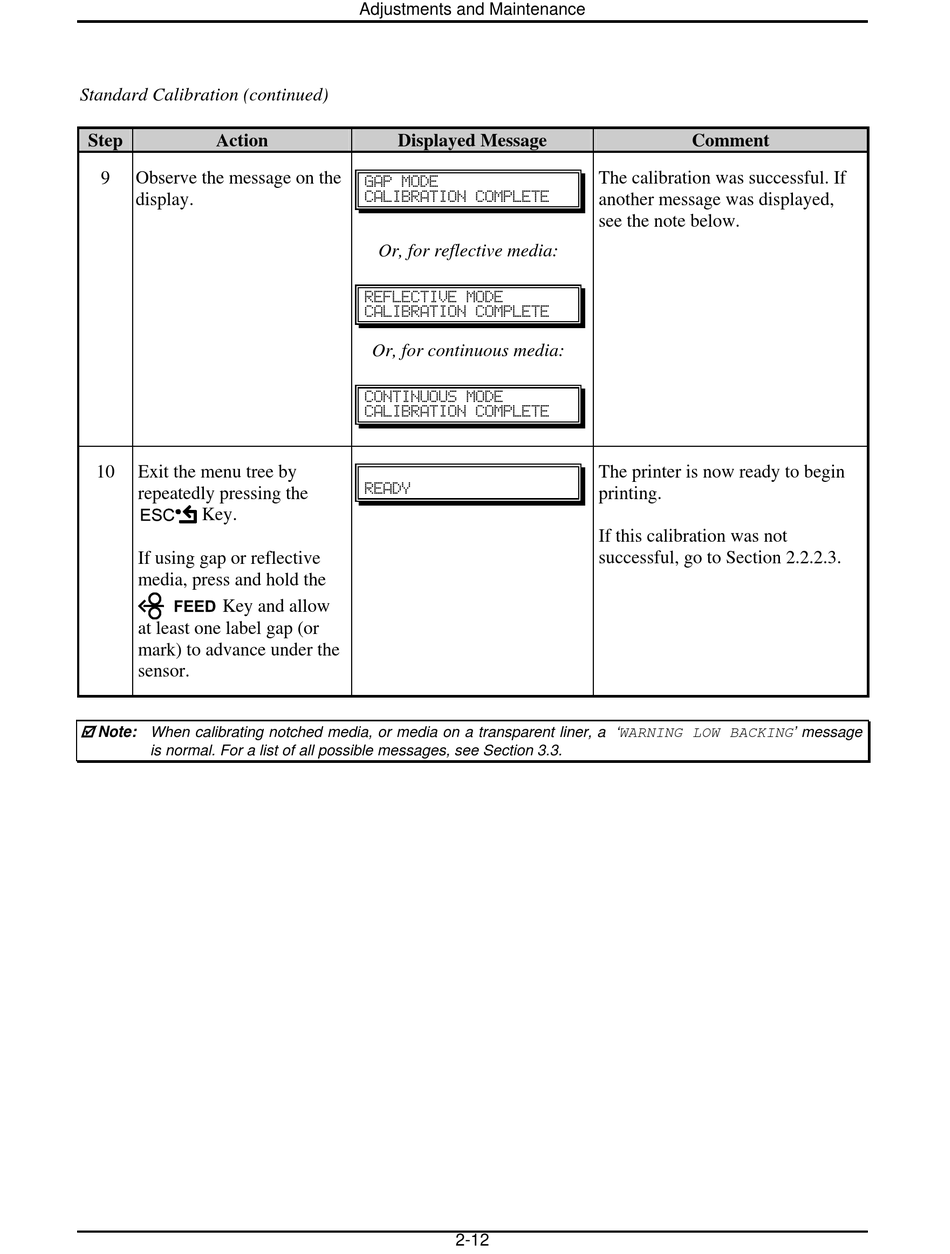

Standard Calibration (continued)
Step Action
9 Observe the message on the
display.
10 Exit the menu tree by
repeatedly pressing the
Key.
If using gap or reflective
media, press and hold the
Key and allow
at least one label gap (or
mark) to advance under the
sensor.
Note: When calibrating notched media, or media on a transparent liner, a 'WARNING LOW BACKING' message
is normal. For a list of all possible messages, see Section 3.3.
Adjustments and Maintenance
Displayed Message
!
HBQ!NPEF!
DBMJCSBUJPO!DPNQMFUF
!
!
Or, for reflective media:
!
SFGMFDUJWF!NPEF!!
DBMJCSBUJPO!DPNQMFUF
!
!
Or, for continuous media:
!!
DPOUJOVPVT!NPEF!!
DBMJCSBUJPO!DPNQMFUF
!
!
!
SFBEZ!
!
2-12
Comment
The calibration was successful. If
!
another message was displayed,
see the note below.
!
!
The printer is now ready to begin
printing.
If this calibration was not
successful, go to Section 2.2.2.3.
