Re-install the Pod Shaft (optional)
If you shortened the pod shaft in the previous section, use the following instructions
to re-install it.
1. Look inside the pod and confirm the hex nut is in place (in the center). If it
has fallen out, insert it so the pointed part of the hex nut points up.
2. Route the power cable up through the pod shaft.
3. Route the Ethernet cable up through the pod
shaft.
4. Insert the shaft onto the pod.
5. Re-install the screws using a Phillips-head
screwdriver (each a little at a time) until they
are secure. Hand-tighten only!
Details: Tighten the screws until you feel the
them start to compress and secure, and then
tighten each screw an additional 1/4 to 1/2
turn.

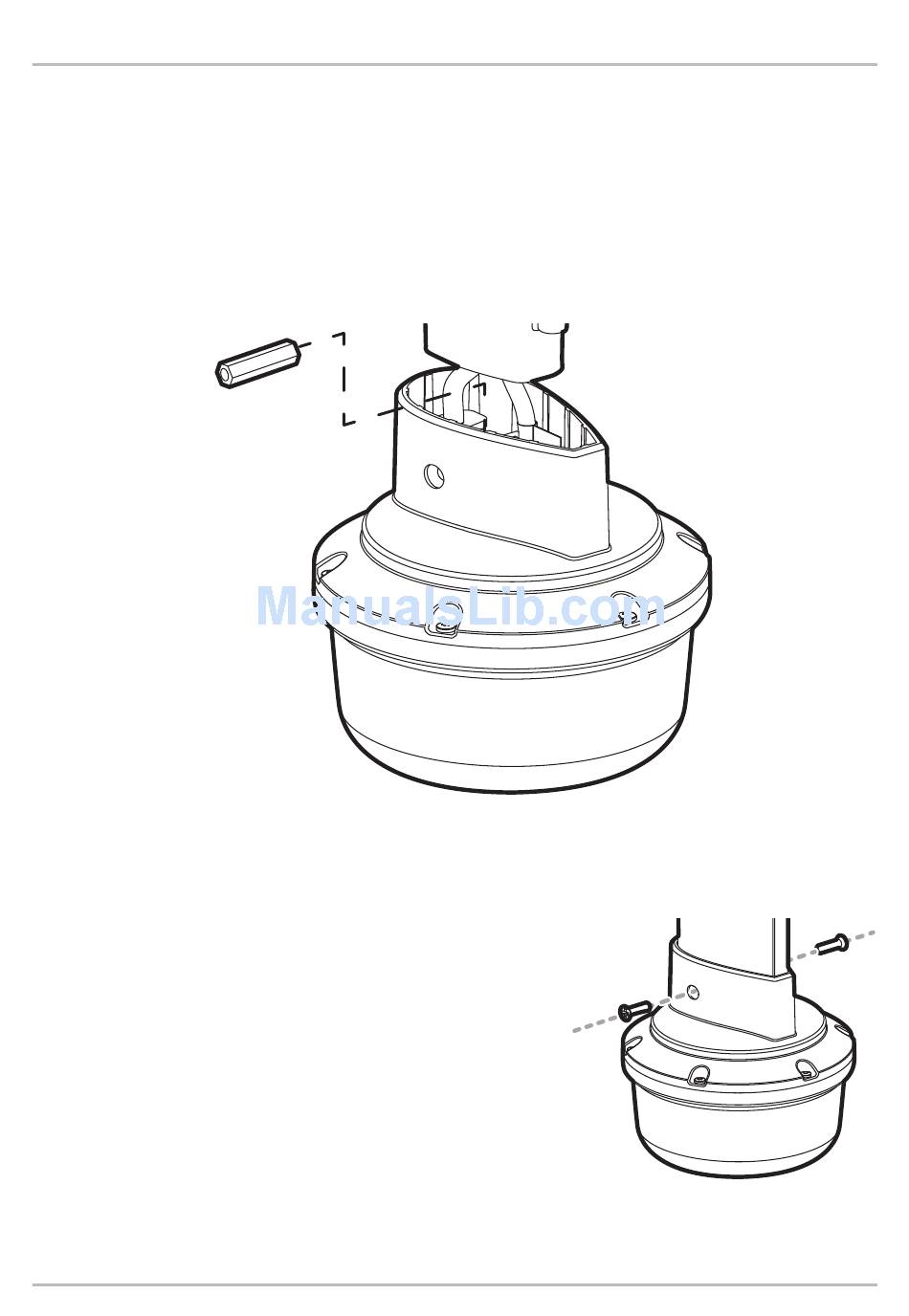

Confirming the Hex Nut Installation
hex nut in
the center
Installing the Pod Screws
