Install the Bracket
As determined in the Assemble the Bracket section, the bracket can be mounted on
the left or right side of the trolling motor.
1. Align the plate below the BowGuard. Line up the holes on the plate with the
threaded holes on the BowGuard.
2. Install the (4) 5/16-18 x 1" screws through the plate and into the BowGuard.
Hand-tighten using a 5/16 nut driver until secure (see the illustration
Installing the Bracket). Hand-tighten only!

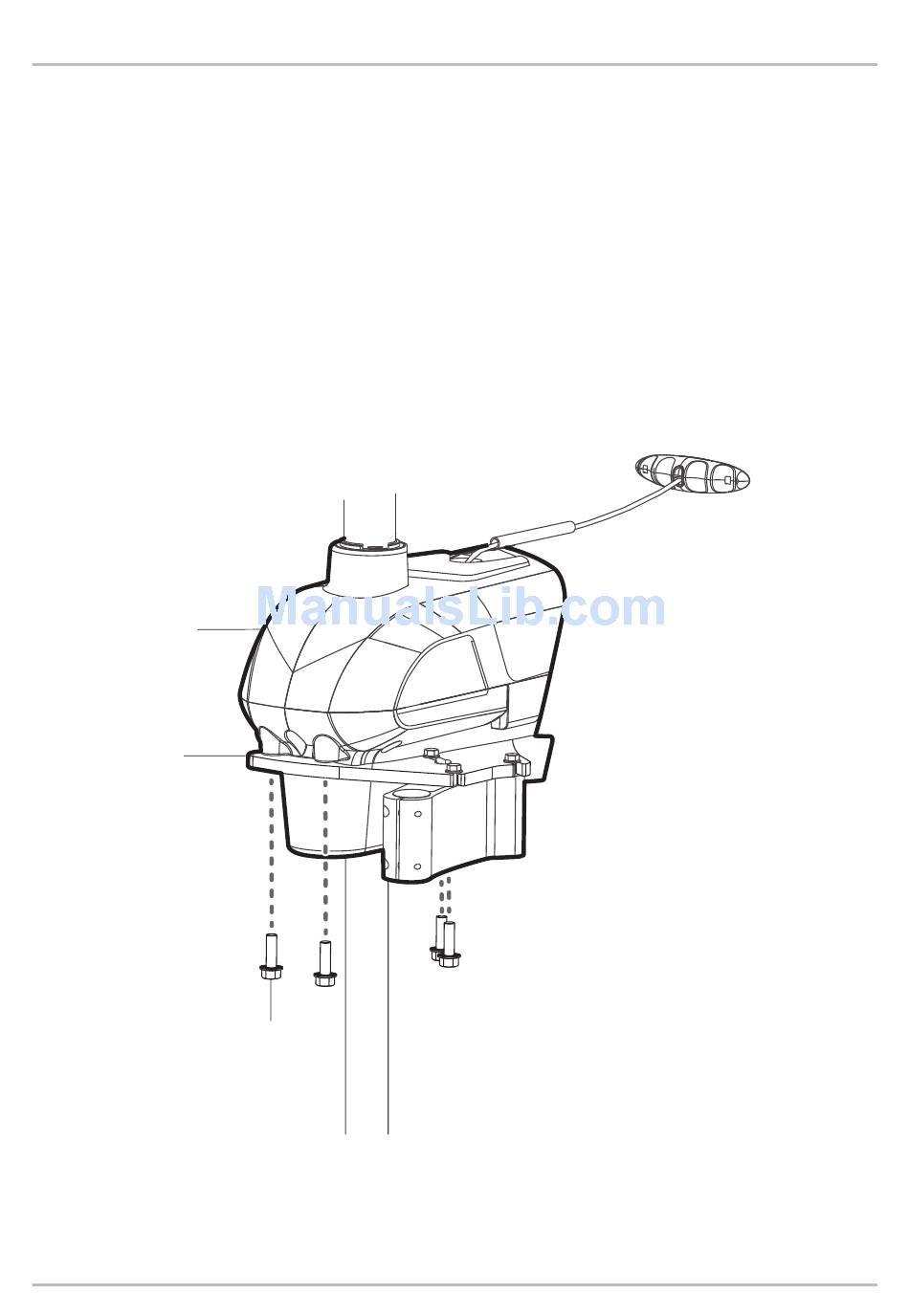

BowGuard
plate
Installing the Bracket
1" screw
(5/16 - 18 x 1")
17 AS 360 TM Ultrex
