Humminbird Trolling Motor 360 Imaging Installation Manual page 21

If the trolling motor deploys port side (left) on the bow, you will mount the
bracket on the right side of the trolling motor. Position the bracket so the
straight edge faces to the right as shown in the illustration.
4. Install the (3) 1/4-20 x 1" screws into the threaded holes on the bracket as
shown in the illustration. Do not fully tighten.

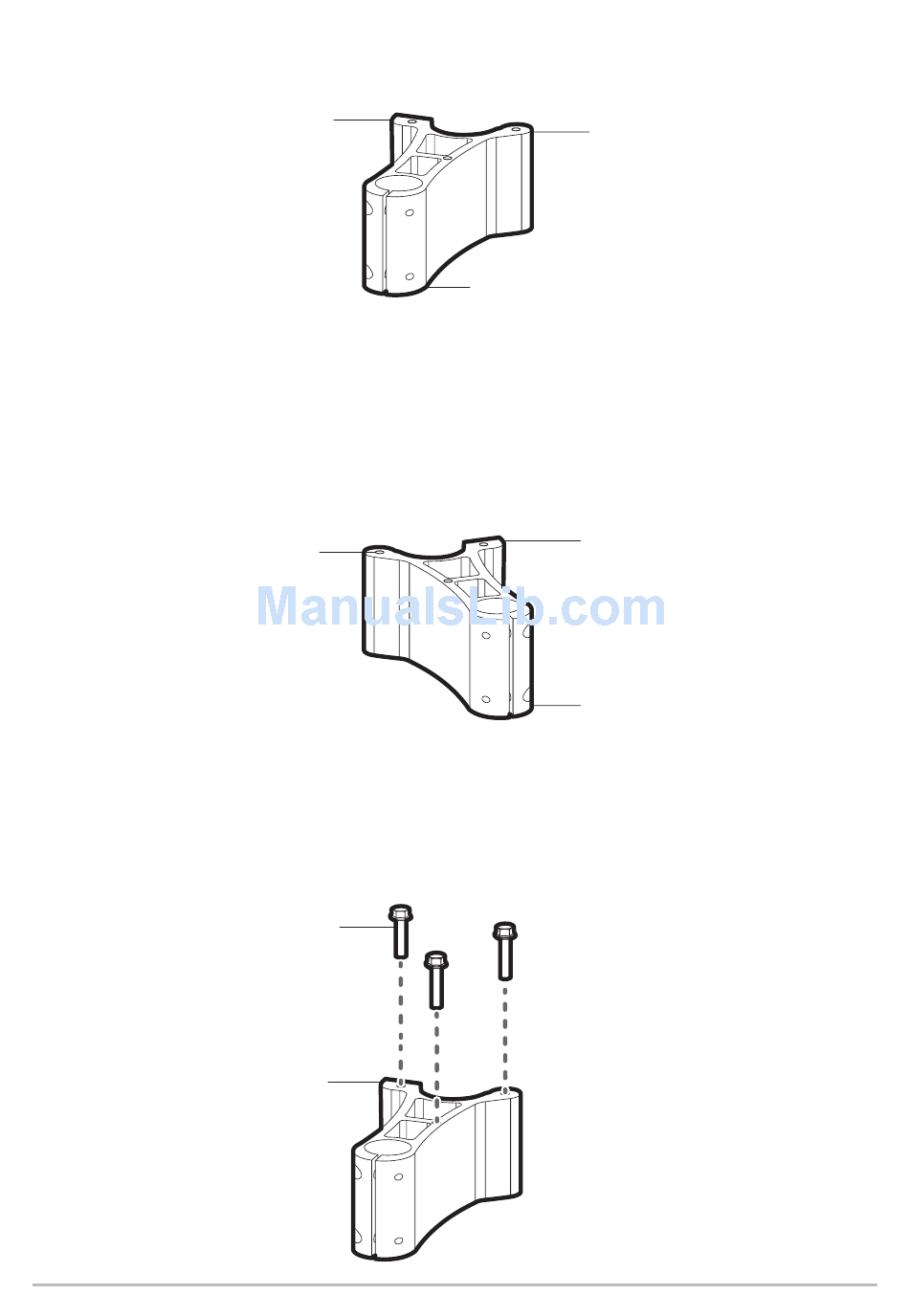

Positioning the Bracket for Installation
on the Left Side of Trolling Motor
straight edge
on the left
Positioning the Bracket for Installation
on the Right Side of Trolling Motor
round edge
on the left
Installing the Screws onto the Bracket
1" screw
(1/4 - 20 x 1")
bracket
(straight edge
on the left)
round edge
on the right
pod route
straight edge
on the right
pod route
