4. Route the Sensor cable through the stem and
through the planned cable route. To use
extension cables, see the details in Section 1:
Choose the Mounting Location.
5. Position the Sensor so the arrow on the cover
is pointed straight toward the front of the boat
in the direction of travel. The arrow should be
parallel with the keel.
NOTE: Failure to align the Sensor correctly
will result in incorrect compass readings.
6. Attach the Sensor to its base using the
included #6 - 7/8" (22 mm) screws. Hand-
tighten only!
GPS/Heading Sensor 6

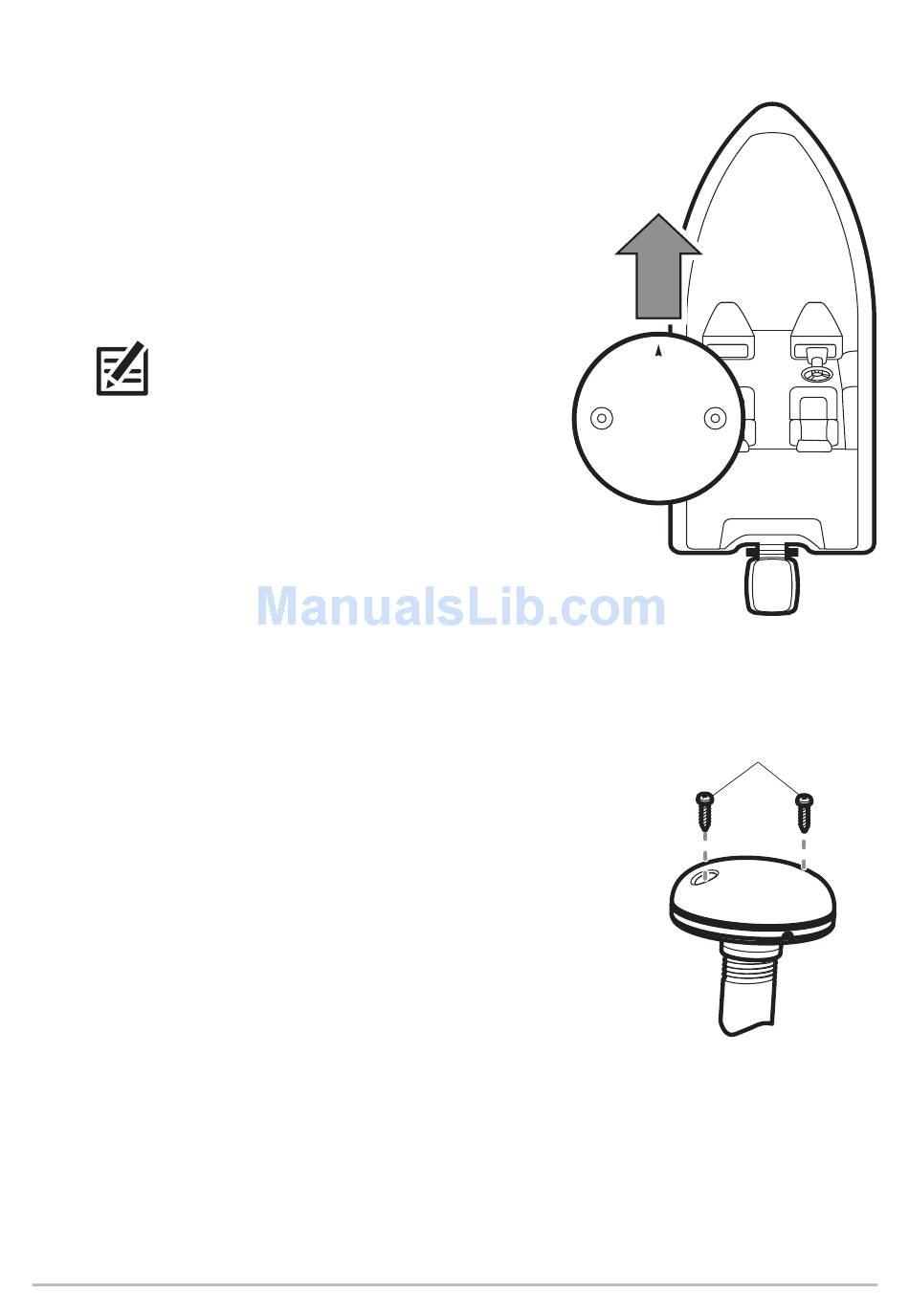

Positioning the Arrow
on the Sensor
Attaching the Sensor
to the Base
#6 - 7/8" mounting screws
