3. Turn the pod shaft until the rounded end of the transducer points in the
direction of travel. The centerline of the transducer should be parallel with
the centerline of the boat. See the illustration Aligning the Transducer.
4. When the transducer position is finalized, hand-tighten the socket bolts
equally and completely so the pod shaft is fully secure and won't drop or
rotate during operation. Tighten each bolt an additional 1/4 or 1/2 turn.
Hand-tighten only!

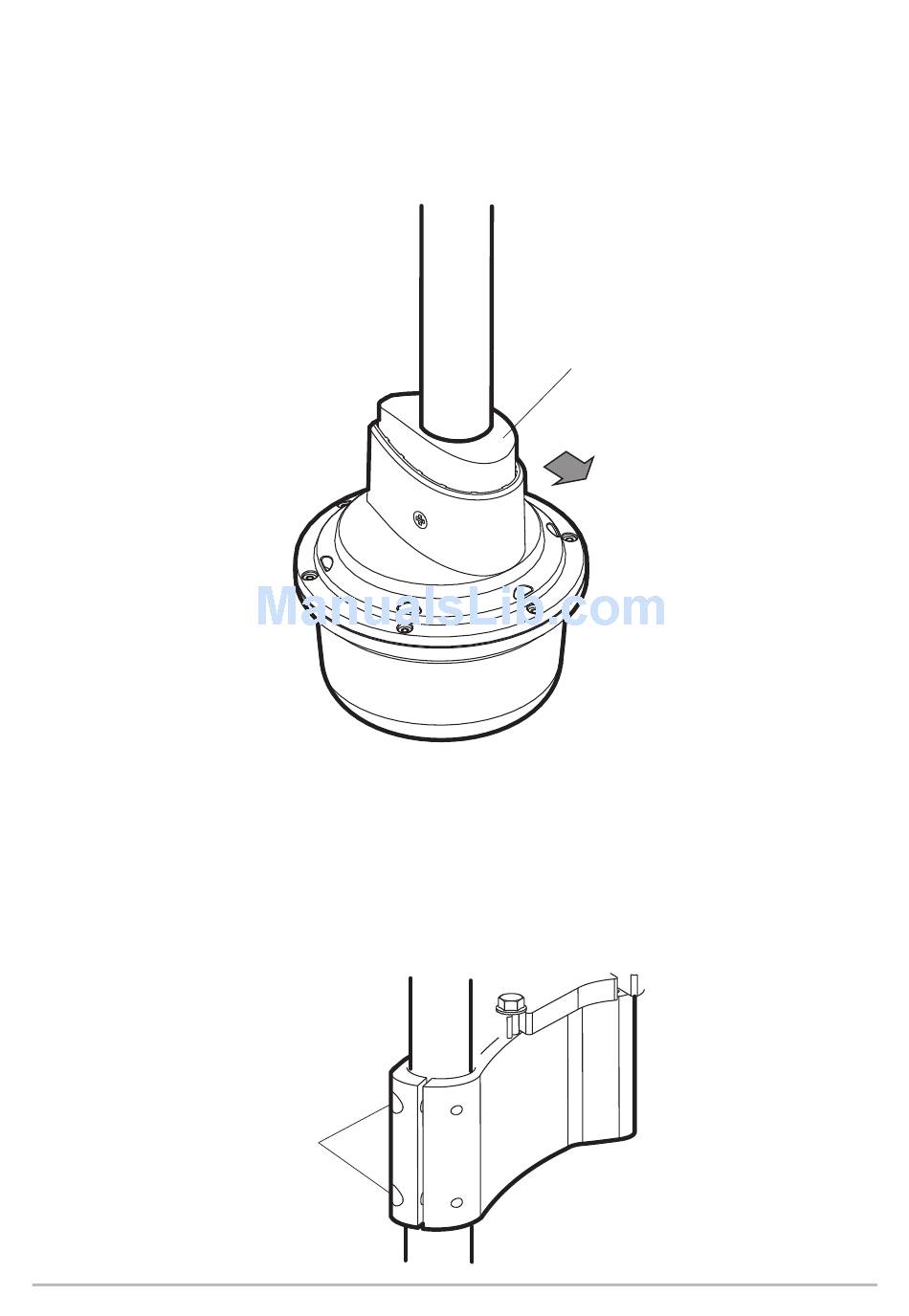

Aligning the Transducer
Hand-Tightening the Socket Bolts
socket bolts
rounded part of transducer
21
AS 360 TM Ultrex
