Confirm The Heading Sensor Operation - Humminbird Trolling Motor 360 Imaging Installation Manual

5. Stop Pinging: When you are finished reviewing the operation, press the
MENU key once. Select Stop 360 Ping, and press the RIGHT Cursor key.

4. Confirm the Heading Sensor Operation

It is important to confirm that the Heading Sensor is installed correctly by reviewing
the heading digital readout.
NOTE: This procedure should be performed at slow speeds, in calm, open water, in
a large area that is far from shallow water, boats, or other obstacles.
1. Main Menu: Press the MENU key twice.
2. Select the Navigation tab > North Reference > Magnetic.
3. Press the EXIT key.
4. Select the Setup tab > Digital Readouts > Boxes.
5. Select the Setup tab > Select Readouts.
Control Head Setup

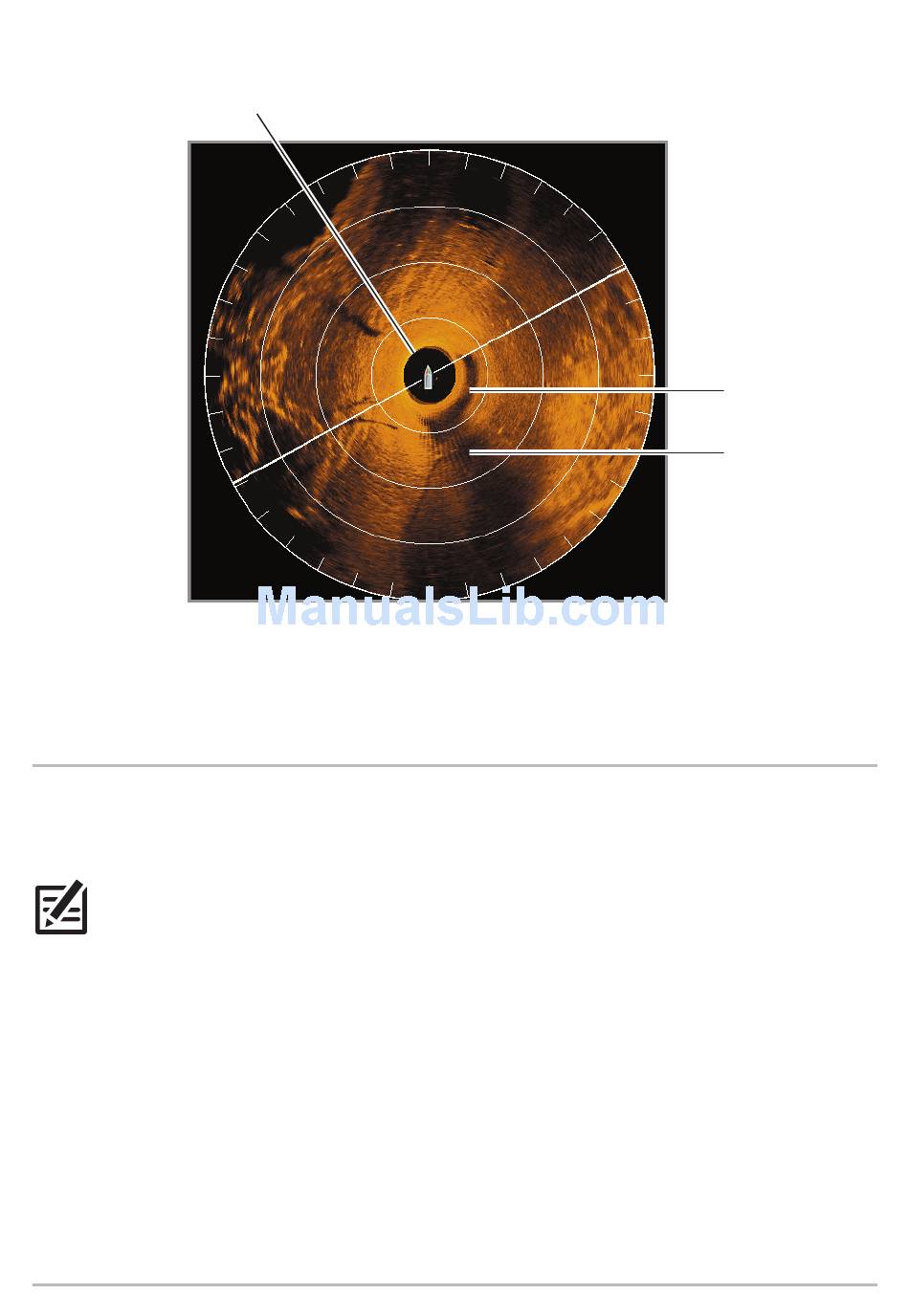

Reviewing the 360 View
bottom return
40
trolling motor
shadow
propeller
shadow (dark
lines)
