6. At the top of the pod shaft, confirm the Ethernet and power cables are routed
completely through the shaft. Install the cable grommet.
7. Route the cables and pod shaft up through the trolling motor bracket.
8. Use an Allen wrench to install the (2) 10-32 x 9/16" socket bolts on the
bracket where the pod shaft is installed.
9. Tighten the bolts so the pod shaft is completely secure and won't drop when
it is deployed in the next step. Hand-tighten only!
10. To finish the installation, proceed to the previous sections Adjust the Pod
Height and Install the Collar Clamp.
WARNING! It is important to adjust the pod height and orientation as
shown in the Adjust the Pod Height and Install the Collar Clamp sections.
Failure to finish the installation and install the pod correctly will result in damage
to the pod.
AS 360 TM Ultrex

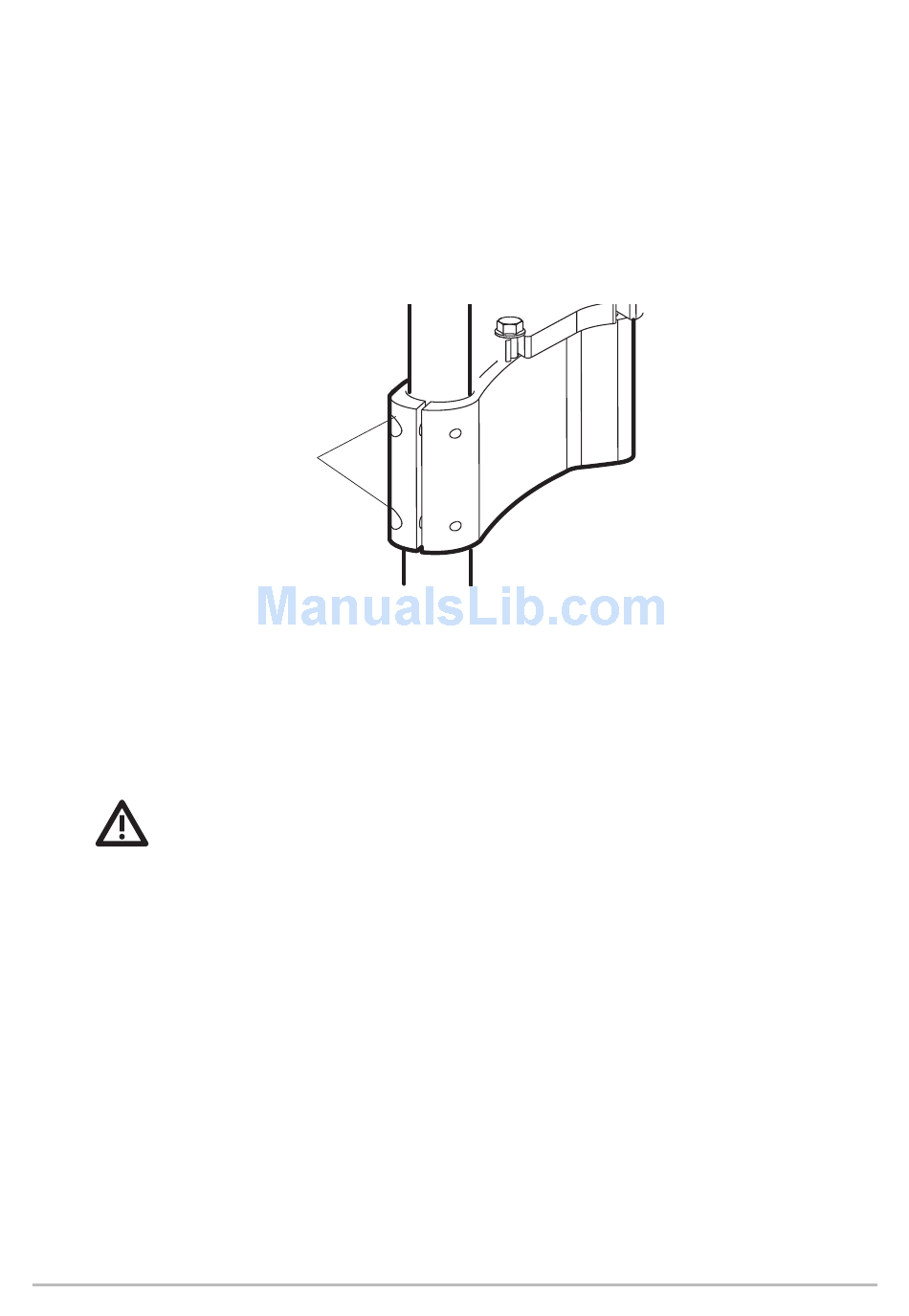

Hand-Tightening the Socket Bolts
socket bolts
