5. Loosen the socket bolts on the bracket where
the pod shaft is installed (see the illustration
Reviewing the Pod Shaft Installation).
Carefully remove the pod shaft from the
trolling motor bracket.
6. At the top of the pod shaft, carefully remove
the cable grommet. See the illustration Pulling
the Cables out of the Shaft.
7. Using a Phillips-head screwdriver, loosen the
screws (each a little at a time) on the pod.
Remove the screws and save them for later.
8. Carefully pull the pod off the shaft. Place the pod on a stable surface.
9. At the top of the shaft, arrange the cables so the Ethernet cable is below the
power cable.
10. From the the bottom of the shaft, pull the Ethernet cable out of the shaft
first. Then, pull the power cable out of the shaft. Pull the cables completely
out of the shaft.
11. Using a hacksaw, cut the top of the shaft on the mark line you designated.
It is important to make a straight cut.
NOTE: Make sure you save the serial number. It is required for service on the
360 transducer pod.
AS 360 TM Ultrex

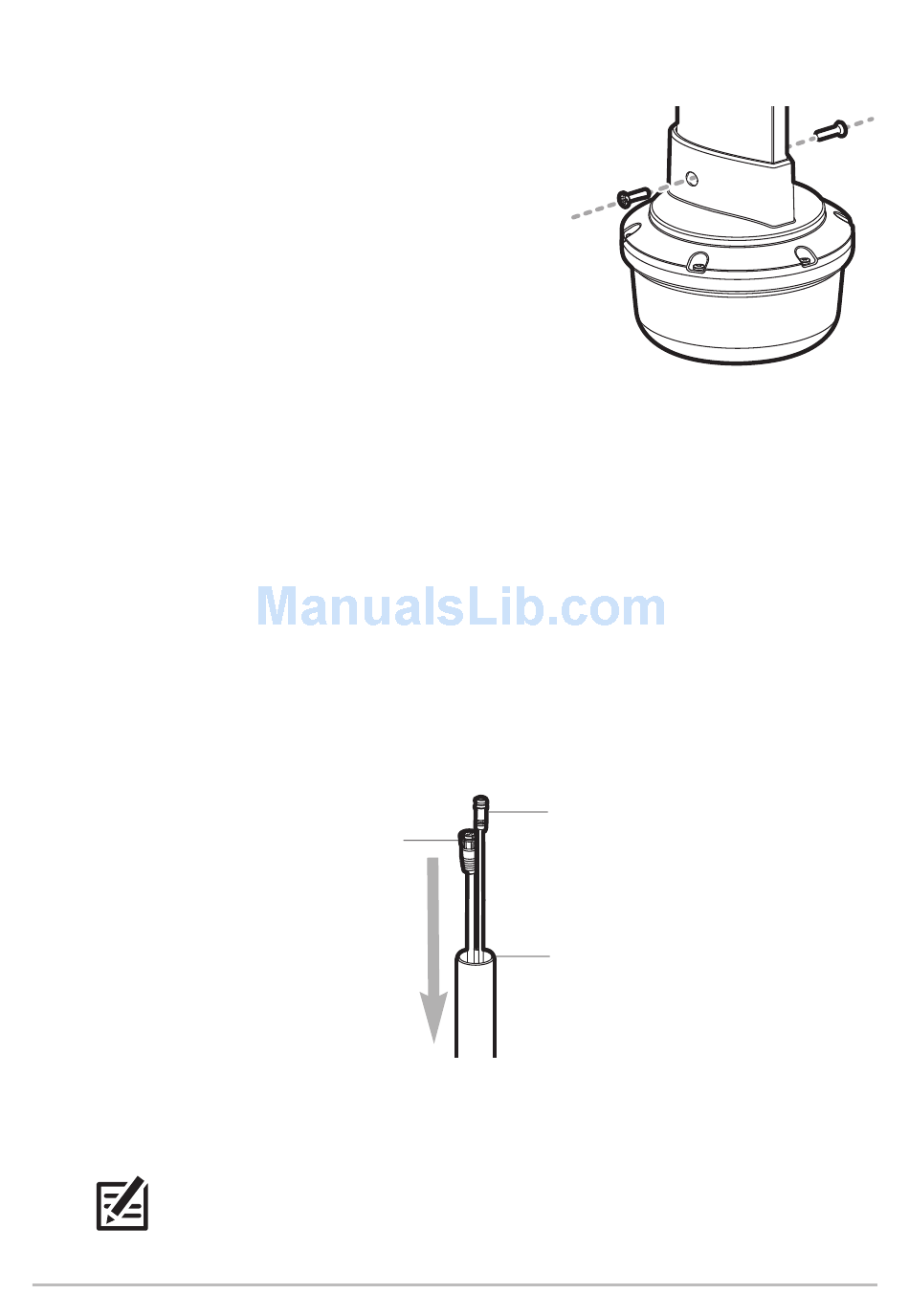

Pulling the Cables out of the Shaft
Ethernet cable
24
Removing the Pod Screws
power cable
grommet removed
