11. Install the large insert into the slotted side of the clamp. Use a Phillips
screwdriver to install the #8-1/2" screw through the clamp and large insert
(see the illustration Installing the Inserts).
12. Install the small insert into the solid side of the clamp. Hold it in place, and
re-install the clamp and Depth Collar Knob. Make sure the clamp notch is
facing down and fits onto the collar node (see the illustrations Installing the
Inserts and Re-installing the Depth Collar Knob).
13. Fully hand-tighten the Depth Collar Knob.
WARNING! The Depth Collar knob must be tightened fully to prevent the bracket
from rotating and potentially damaging the pod. Hand-tighten only!

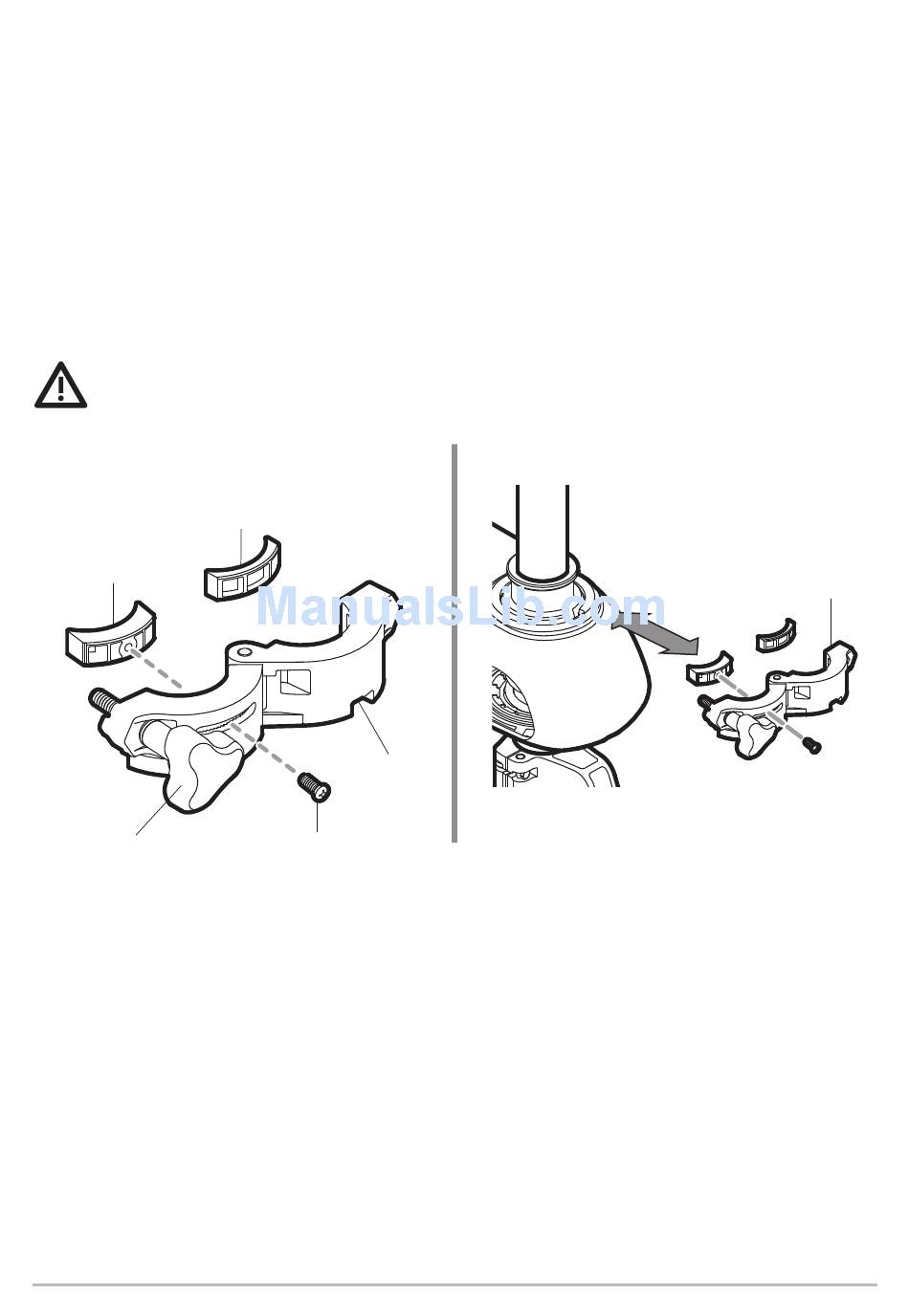

Installing the Inserts
large insert
with hole
depth collar knob
AS 360 TM
small insert
#8 x 1/2" screw
Re-installing the Depth Collar Knob
notch
32
depth collar
clamp
