5. Align the center hole of the plate over the left screw (left side installation)
or right screw (right side installation).
6. Lower the plate onto the screw head, and slide the screw into the plate slot.
Slide the other two screws into the outside slots on the plate. If the plate
does not slide easily into place, flip it over.
plate
7. Hand-tighten the screws using a 1/4" nut driver or socket wrench. Hand-
tighten only!
AS 360 TM Ultrex

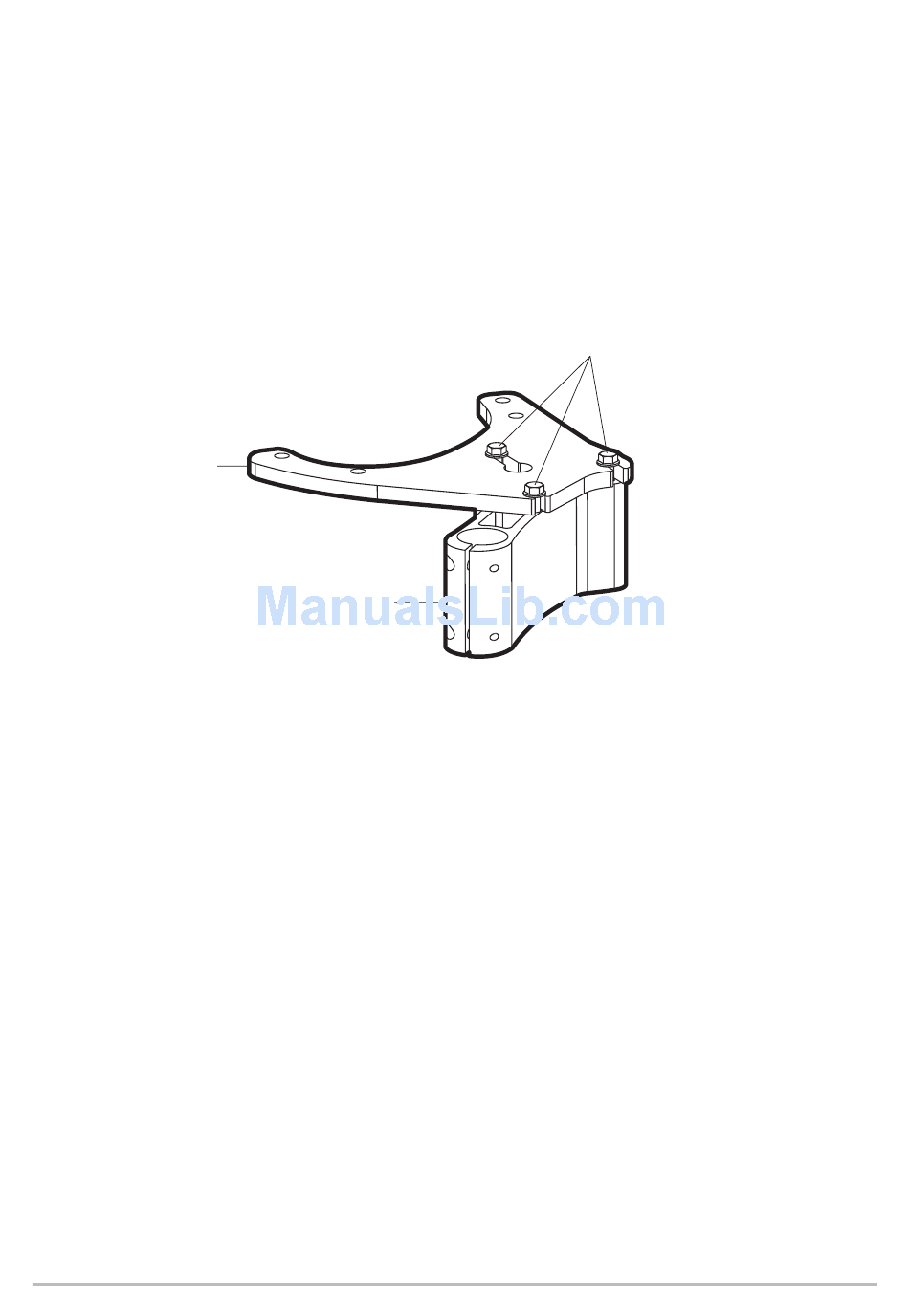

Securing the Plate and Bracket
bracket
16
slide the plate into place
and hand-tighten screws
