8. Turn the pod shaft until the rounded end of the transducer points in the
direction of travel. The centerline of the transducer should be parallel with
the centerline of the boat. See the illustration Aligning the Transducer.
NOTE: You might need to loosen the hex socket bolts to adjust the transducer
alignment.
9. When the transducer position is finalized, hand-tighten the hex socket bolts
completely so the pod shaft is fully secure and won't drop or rotate during
operation. Hand-tighten only!

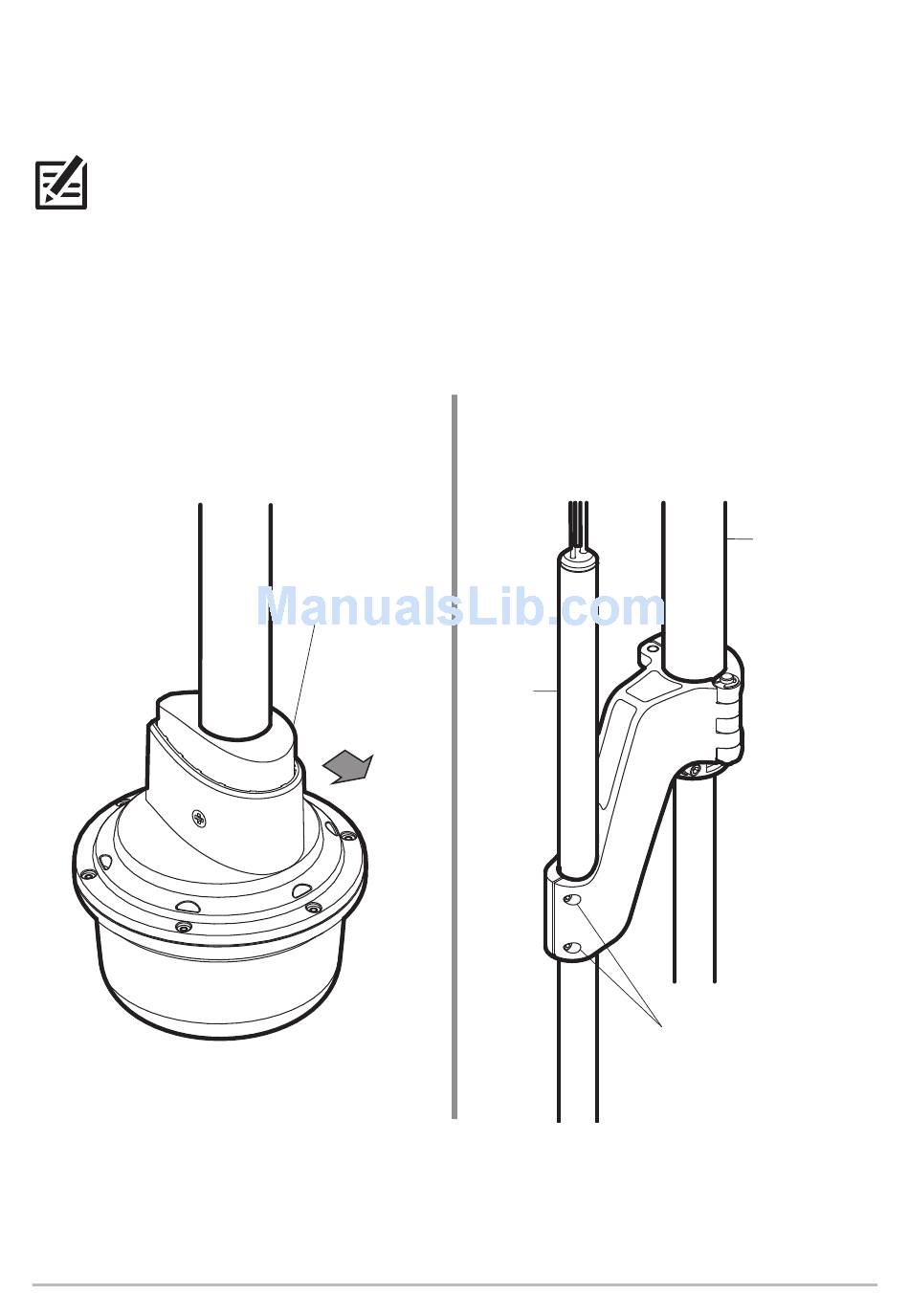

Aligning the Transducer
10. Above the BowGuard, unscrew the Depth Collar Knob to remove the clamp.
rounded part
of transducer
31
Confirming the Pod is Secure
pod
shaft
hand tighten
(2) hex socket
bolts 10-32 x 5/8"
trolling motor
shaft
