Display Information
Dolby Status
76
When your instrument is equipped with Option DPE, you can view Dolby
metadata for the currently monitored audio source (AES and embedded inputs),
Dolby Timing, and Dolby VANC data from the Dolby Status Display. Select to
view the metadata from the audio data stream or from the VANC. (See Figure 43.)

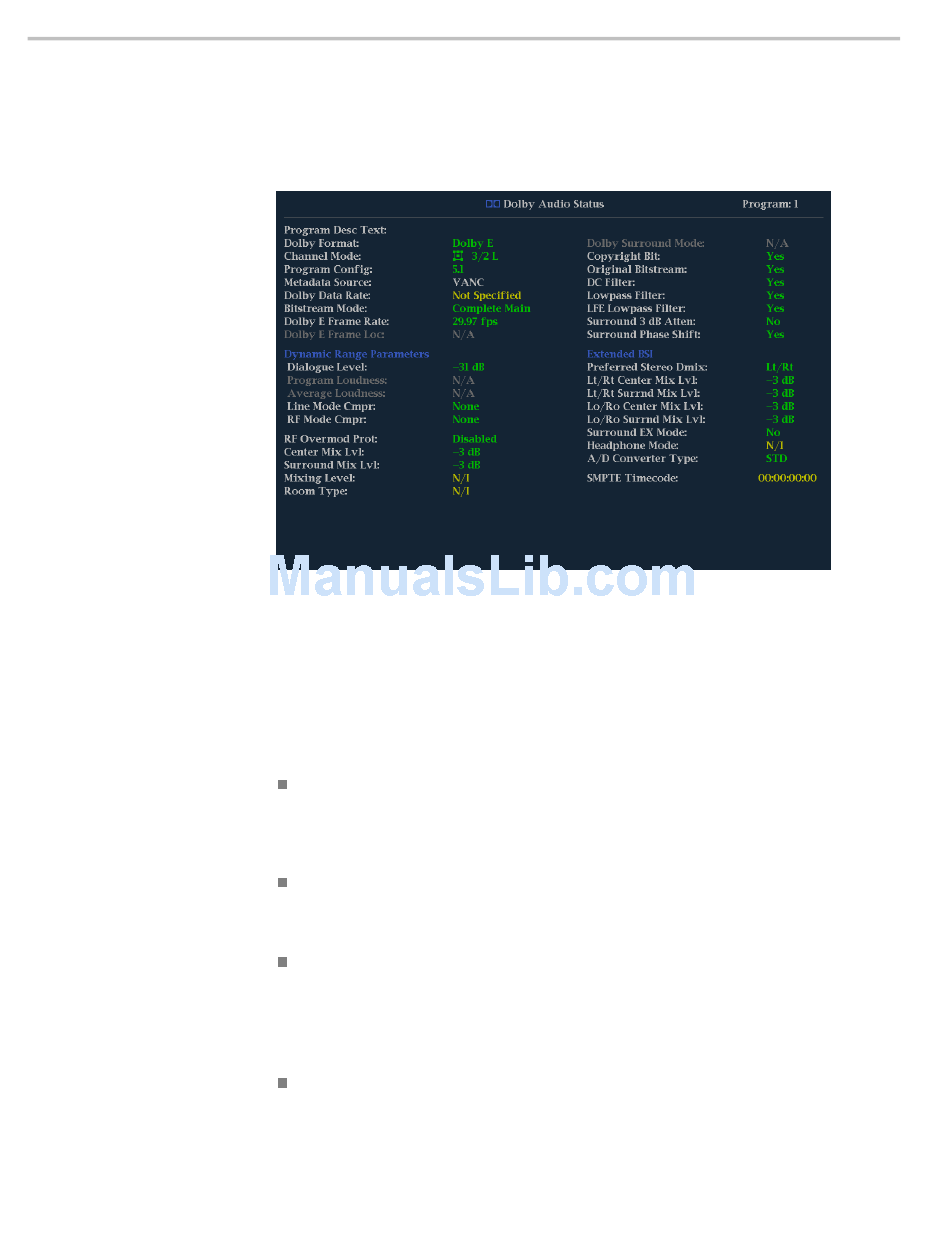

Figure 43: Dolby Status display

Elements of the Dolby Status display. The following is a list of some of the
elements that show on the Dolby Status display. Some elements apply only
to Dolby type E. If Dolby type D is detected, these elements display with their
names grayed out and with a value of N/A. For a complete list of the elements that
might appear, see the instrument online help by pressing the HELP button when
the Dolby Status display is active in a tile.
Program Description Text: A 32-character ASCII text field used by the
program author to describe the audio program; for example, the name of the
program (Movie Channel Promo), the program source (Football Main Feed),
or the program language (Danish).
Dolby Format: Indicates the Dolby Format. This indicator is also tied to the
Dolby Format Error/Alarm: if the Alarm is asserted, the Dolby Format is
displayed in red.
Channel Mode (or Audio Coding mode): Indicates the active channels
within the encoded bit stream, representing it in a ratio, X/Y, where X is the
number of front channels (Left, Center, Right) and Y is the number of rear
(Surround) channels. If the LFE Channel is present, an L is appended at the
end of the channel mode.
Program Configuration: Determines how the audio channels are grouped
within a Dolby E bitstream. Up to eight channels can be grouped together in
individual programs, where each program contains its own metadata.
