ARIB STD-B.39 Display

WFM8200 and WFM8300 Waveform Monitors
Also, the status of the following ITU standard is shown:
ITU.R BT-1685 (inter-stationary Control Data conveyed by ancillary data
packets).
The ARIB STD-B.39 display shows the decoded data for video signals using
ancillary data compliant with ARIB STD-B.39. (See Figure 63.) When this
display is selected, the instrument searches the signal for ARIB STD-B.39 packets
using the DID/SDID combinations defined by either the ITU or ARIB standards
organizations.

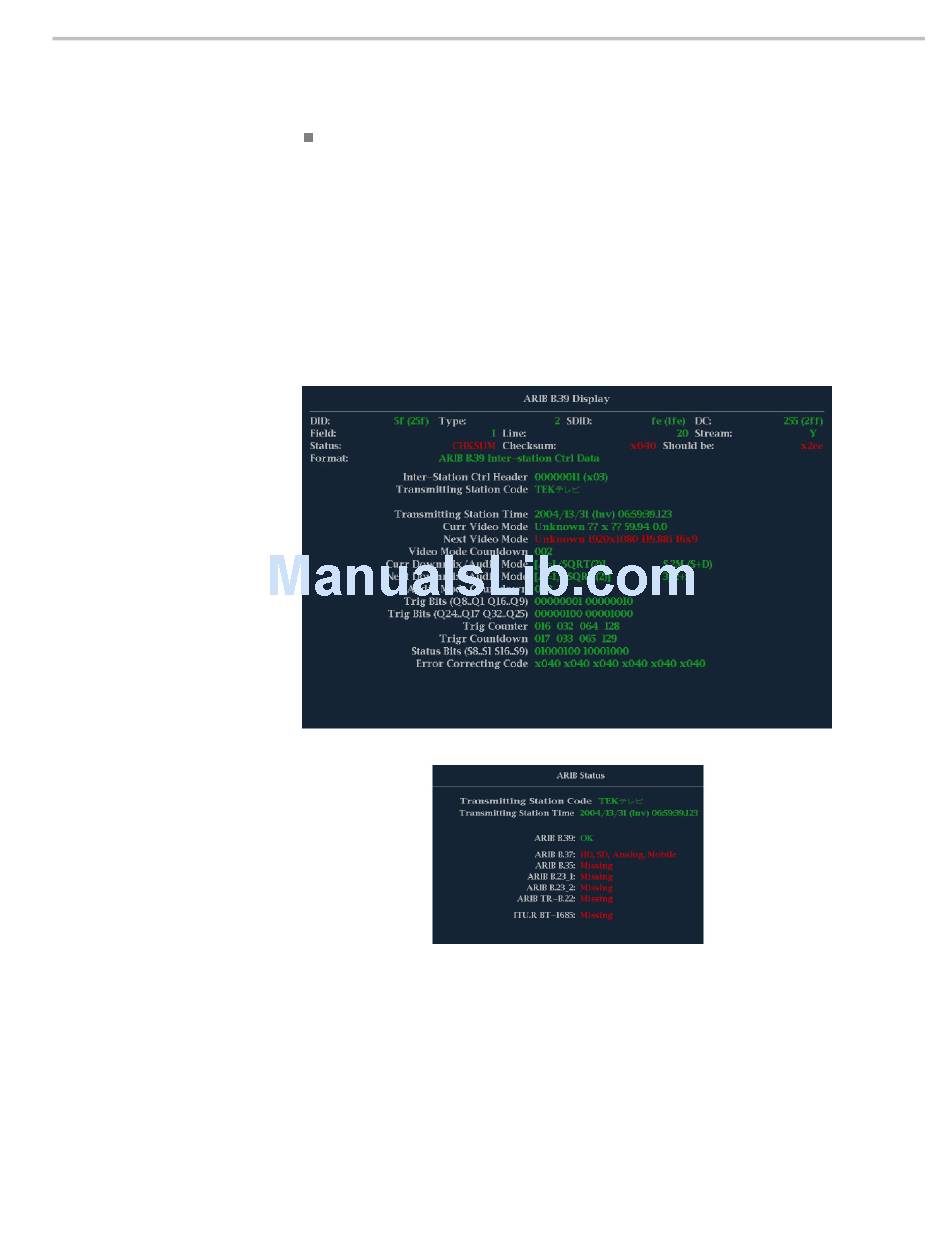

Figure 63: ARIB STD-B.39 display (with the associated ARIB Status display)
