Getting Acquainted with Your Instrument

Instrument Display

Display Select Buttons
18
5. Press the right arrow key to move from pane to pane. The right-side pane will
contain the topic content related to the front panel button you press while help
is activated or the links in the help files and menus you use.
6. Press the HELP button again to exit online help.
This instrument uses FlexVu™, which is a flexible, four-tiled display that can
show four tiles at one time or a single, full-screen sized tile. Each tile can display
a different measurement, effectively creating four independent instruments. To
allow the tiles to function independently, most of the controls affect only one
tile at a time.
Activate one of the four tiles by pressing a numbered Display Select button. The
active tile is outlined in blue and the numbered button associated with that tile
is lit. (See Figure 5.)

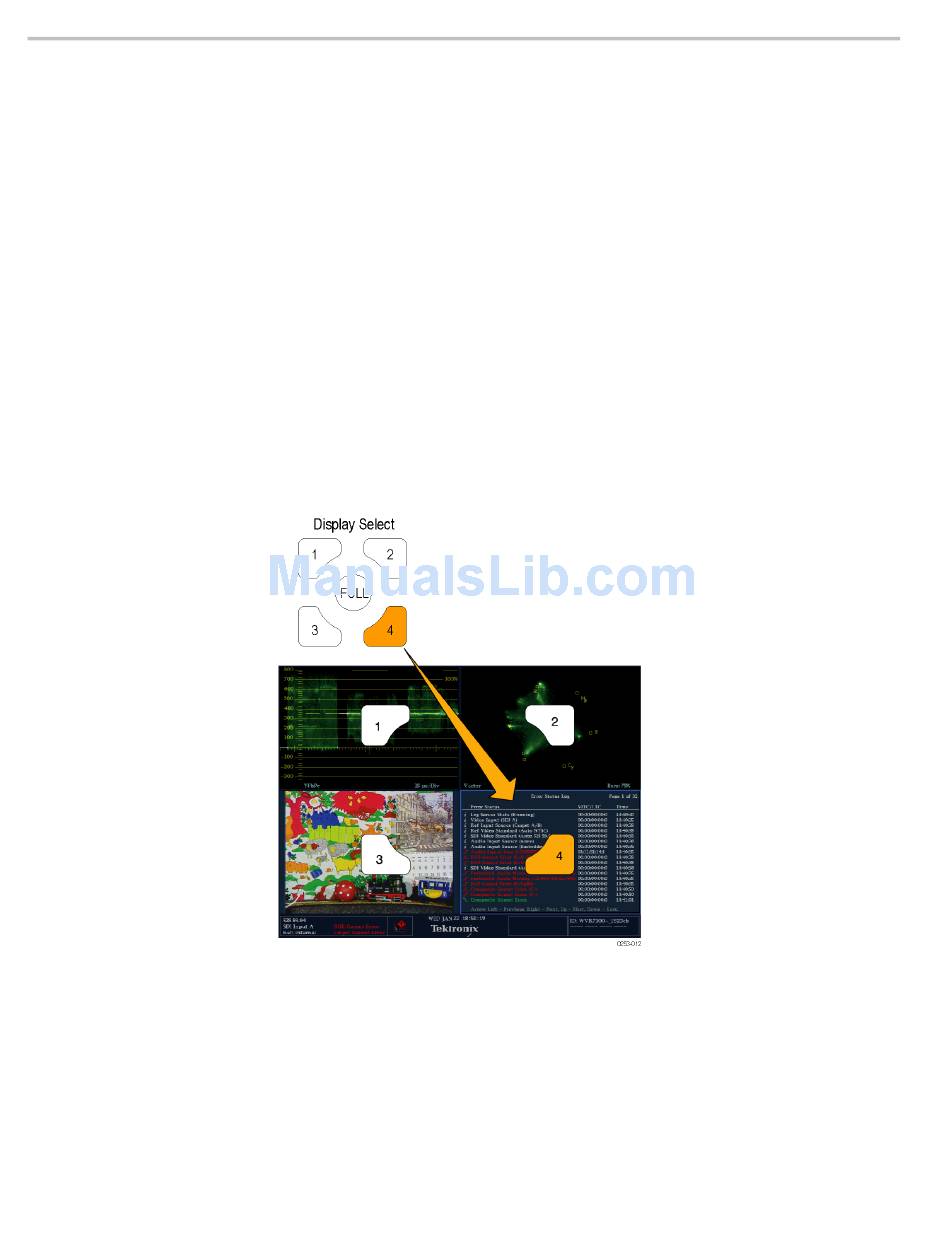

Figure 5: Display Select buttons
WFM8200 and WFM8300 Waveform Monitors
