Status Bar Icons
Rear Panel Specifications
WFM8200 and WFM8300 Waveform Monitors
Display

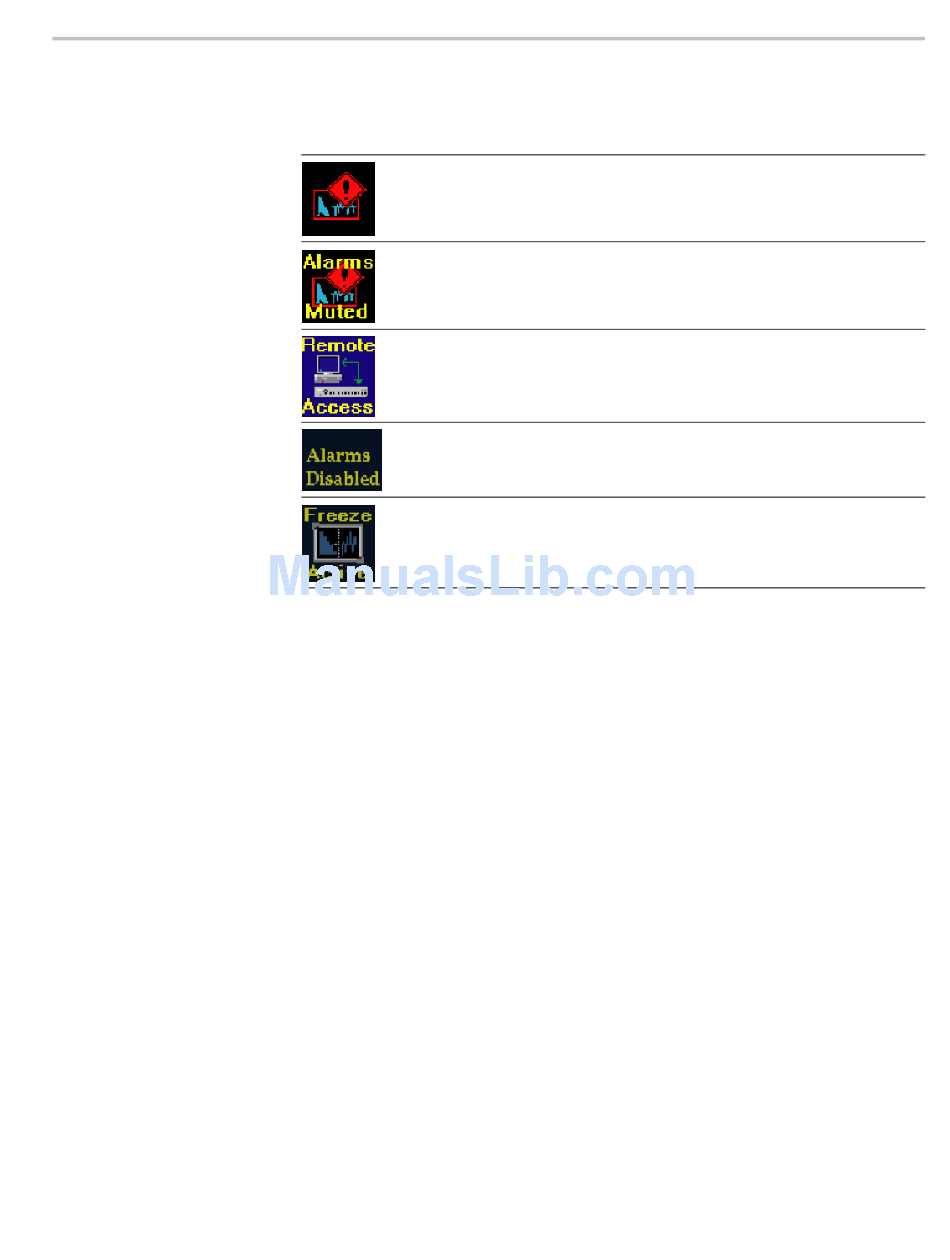

Icons Description
Warning - Appears when an error or an alarm that is mapped to the user
interface triggers.
Alarms Muted - Appears when the alarms are muted from the STATUS pop-up
menu.
Remote Access - Appears when the instrument is accessed from the network.
For example, when sending commands to the instrument from the remote
interface.
Alarms Disabled - This text appears in the Status Bar when Alarms are disabled
from the Configuration menu.
Freeze Active - Appears when the tiles are frozen or captured.
See the WFM8200 and WFM8300 Waveform Monitors Safety and Installation
Instructions that shipped with your instrument for rear panel specifications. It is
also available in electronic format on the Product Documentation CD and on the
Tektronix Web site at www.tektronix.com/manuals.
