Display Information
Audio Session
66
The Audio Session display contains several performance parameters that you can
display to see an overview of the audio input signal. This instrument maintains a
running audio status session. (See Figure 37.)

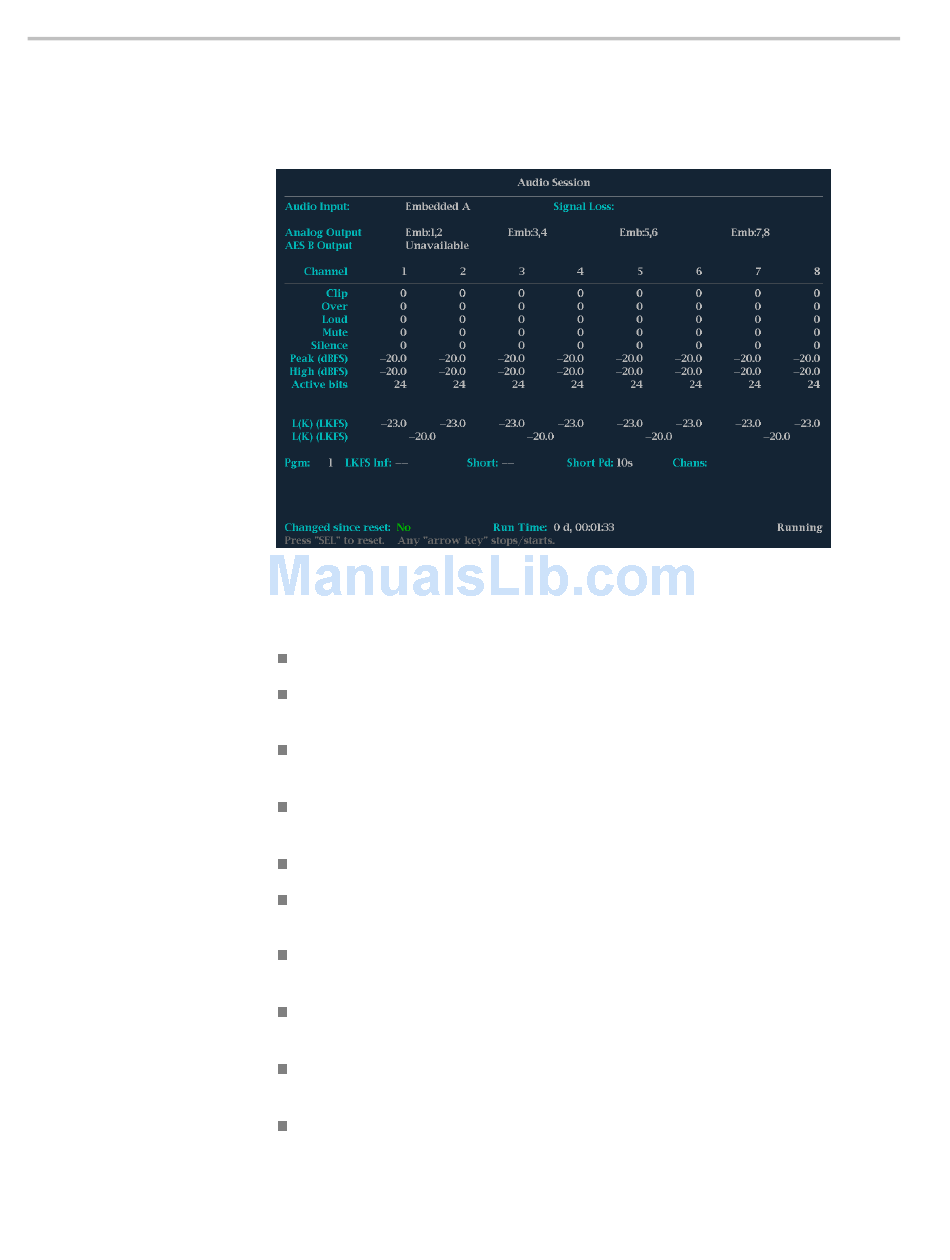

Figure 37: Audio Session display

Elements of the Audio Session display.
Audio Input: Shows the selected input source.
Signal Loss: Indicates the level meter bars (1-8) that have triggered a signal
loss alarm. Dashes indicate that no alarm was triggered.
Analog Output: Identifies which level meter bar pair is mapped to which
Analog Output.
AES B Output: Identifies which level meter bar pair is mapped to which
AES B Output, if enabled.
Data Collect: Indicates the status of error collection as Running or Stopped.
Channel: This row aligns the channel number with the status readouts that
appear below the row.
Clip: The number of CLIPs detected during the session. (Only displayed for
digital audio feeds.)
Over: The number of OVERs detected during the session. (Only displayed
for digital audio feeds.)
Loud: The number of times the Analog Audio or Digital Audio loudness
alarms have been trigger during the current session.
Mute: The number of MUTEs detected during the session.
