Figure 33: The Jitter Display Parameters As Shown When The Instrument Is In Single-Tile Mode - Tektronix WFM8200 User Manual

Display Information
Elements of the Jitter
Display
58

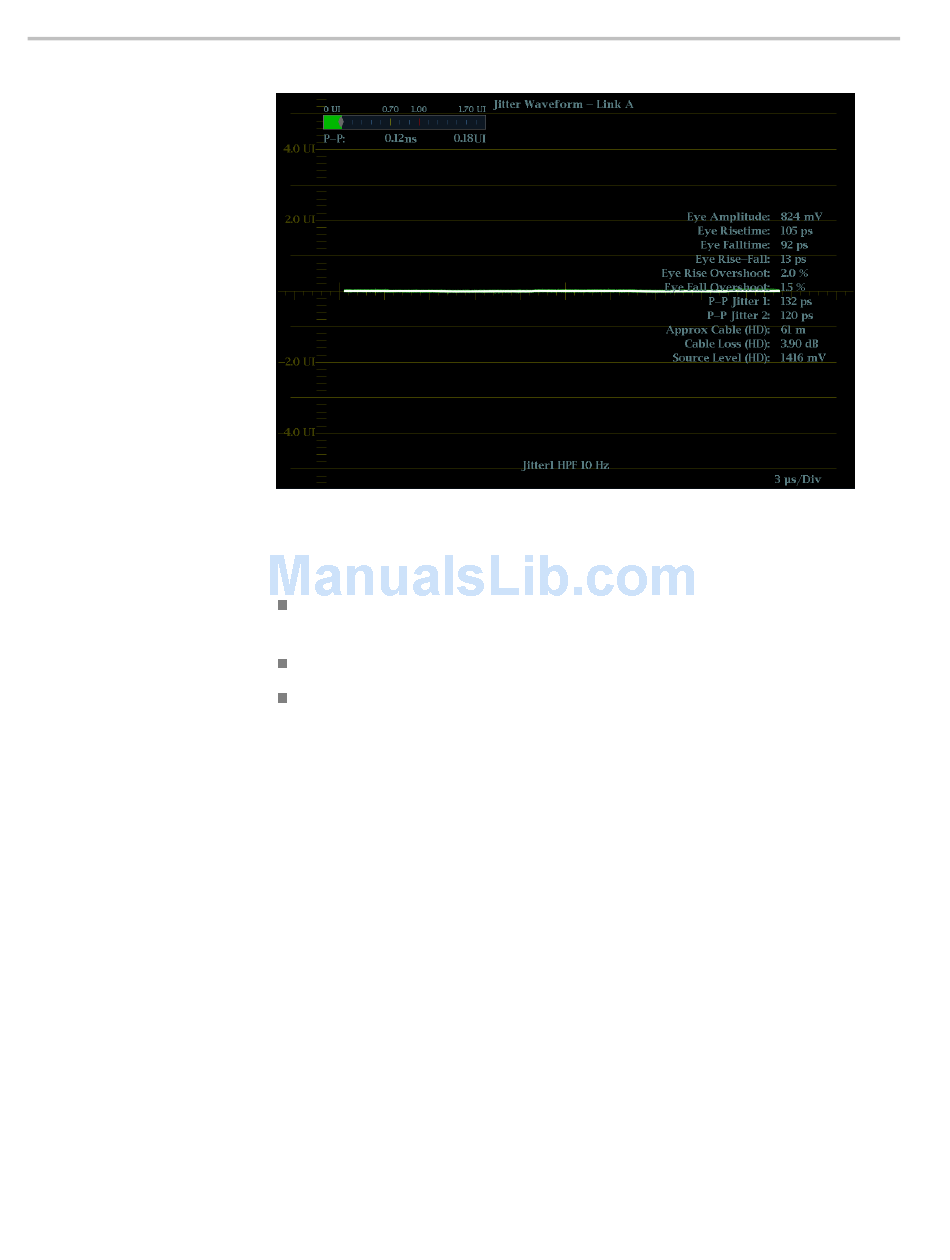

Figure 33: The Jitter display parameters as shown when the instrument is in
single-tile mode
Jitter Waveshape: Displays the jitter wave shape (the image to the right
shows no jitter). This shape is modified by the high-pass filter (HPF) setting.
Jitter Thermometer: Displays jitter value and relates it to alarm limits.
Jitter HPF: Indicates the setting for the Jitter High Pass Filter, set in the
CONFIG menu.
